TCL FMA-09CHSD/DVI

No. Part No. Part Name Q’ty Remark
1 42011-000111 Grille 1
2 41207-000020 Top cover 1
3 92011-000655 Condenser 1
4 41203-000041 Outdoor motor supporter 1
5 22001-000083 Outdoor motor 1
6 42004-000069 Propeller fan 1
7 41205-000127 Left grille supporter 1
8 41206-000033 Front plate 1
9 42011-000087 Fan guard 1
10 92014-000357 Compressor 1
11 92008-000207 4-way valve 1
12 92007-000952 4-way valve assembly 1
13 41299-001314 Base 1
14 41205-000051 Right plate 1
15 92008-000152 Two-way valve 3
16 41204-000023 Valve supporter 1
17 92008-000150 Three-way valve 3
18 41201-000001 Electrical box cover 1
42001-000046 Cable clamp 1
42001-000109 Cable clamp 1
11304-100029 Terminal 1
11304-100061 Terminal 1
21 31201-000938 Outdoor PCB assembly 1
22 22011-000004 Inductor 1
23 92007-003061 Electronic expand valve 1
24 41208-000160 Partition plate 1
25 10104-100040 Sensor assembly 1
26 A2005-000489 Base carton 1
27 A1201-009328 Cabinet carton 1
28 A1204-000102 Base foaming 1
29 41214-000571 Cover foaming 1
TCL Air Conditioner Service Manual

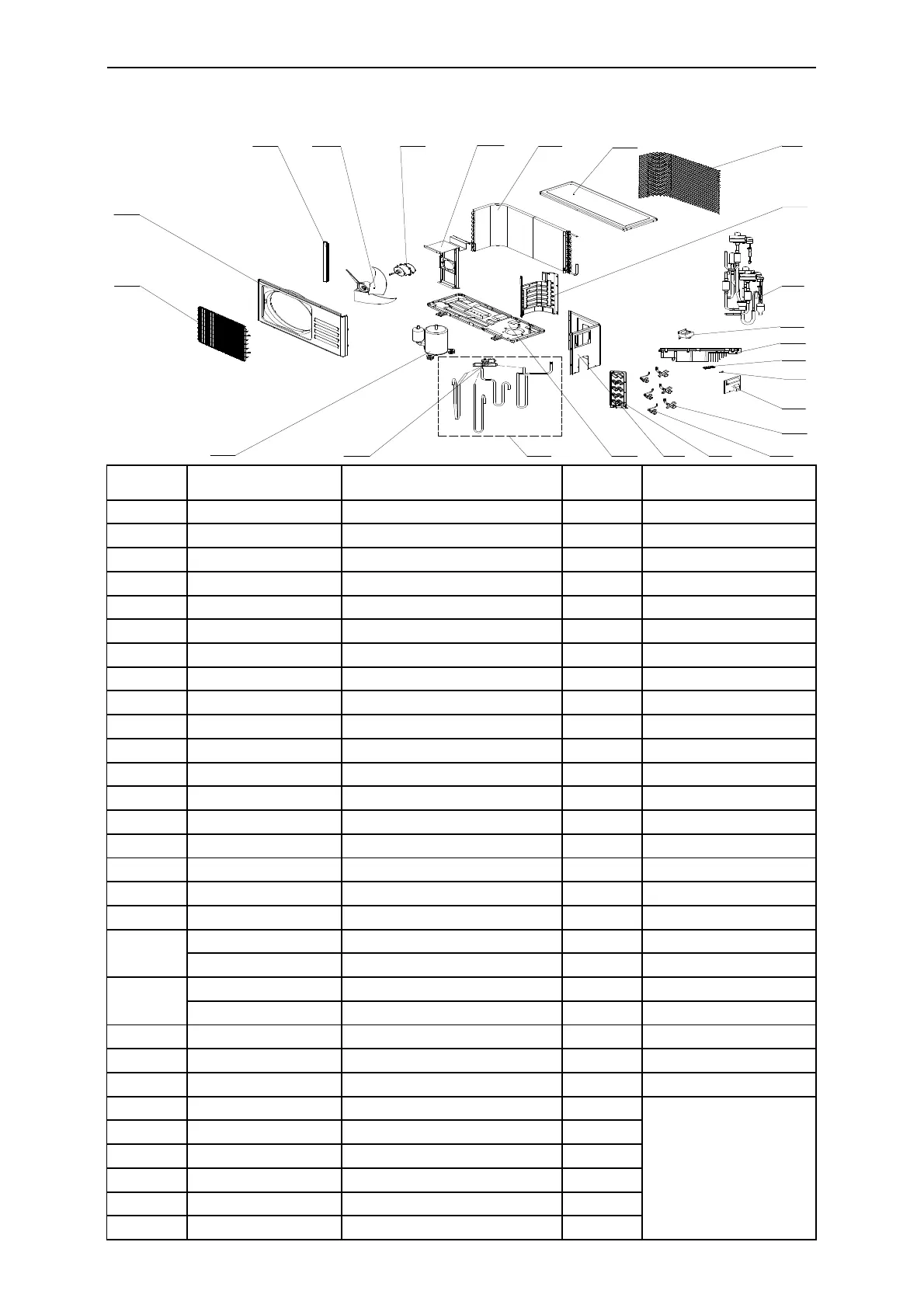

Outdoor Unit - FMA-27I3HD/DVO
Not shown in
explosion view
19
20
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
4
3
2
1
22
24
25
