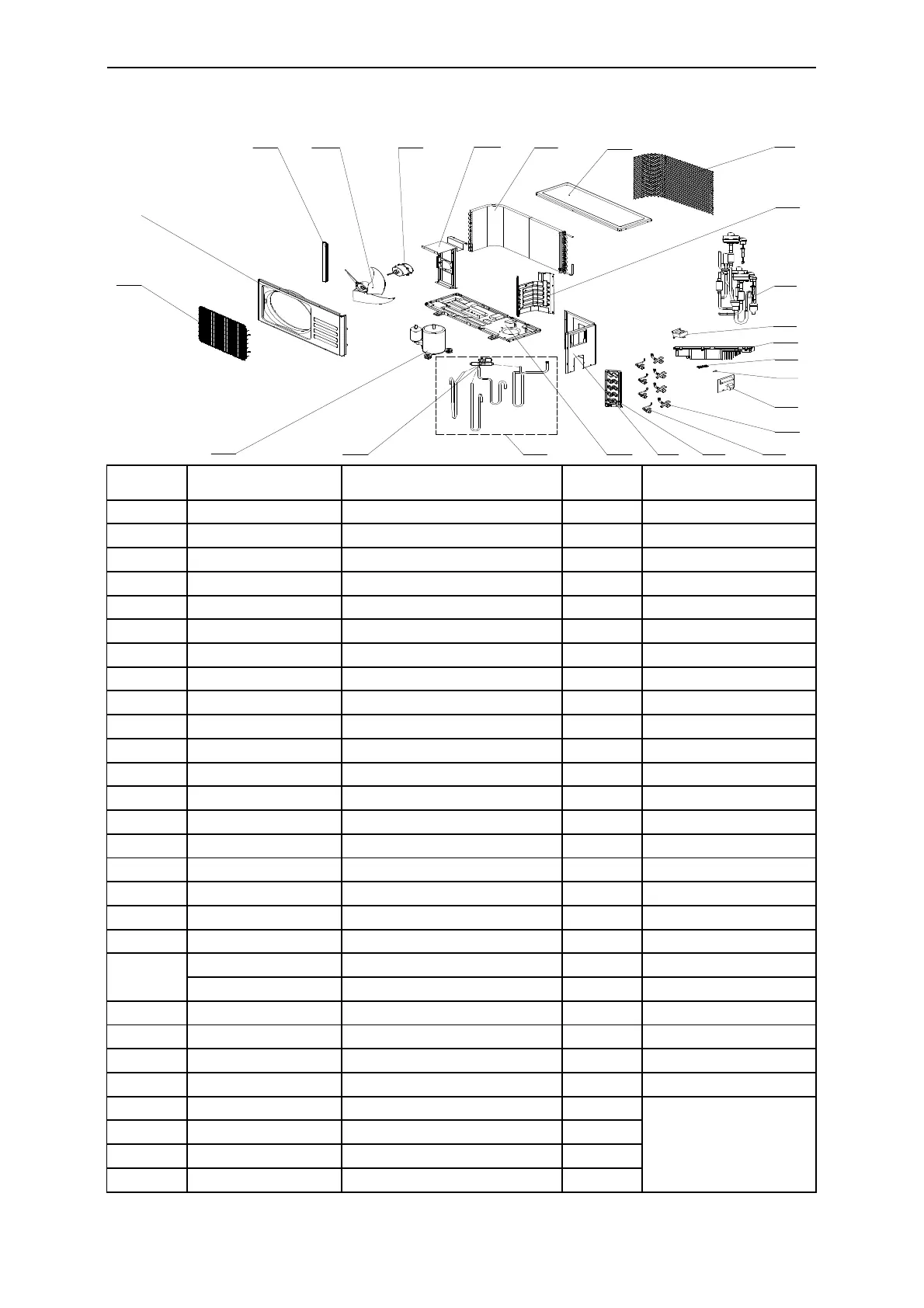

TCL FMA-09CHSD/DVI

No. Part No. Part Name Q’ty Remark
1 42011-000121 Grille 1
2 41399-000010 Top cover 1
3 92011-001724 Condenser 1
4 41203-000027 Outdoor motor supporter 1
5 22001-000070 Outdoor motor 1
6 42004-000095 Propeller fan 1
7 41205-000123 Left grille supporter 1
8 41206-000021 Front plate 1
9 42011-000103 Fan guard 1
10 92014-000465 Compressor 1
11 92008-000207 4-way valve 1
12 92007-000939 4-way valve assembly 1
13 41202-000207 Base 1
14 41205-000050 Right plate 1
15 41204-000009 Valve supporter 1
16 92008-000152 Two-way valve 4
17 92008-000150 Three-way valve 4
18 41201-000001 Electrical box cover 1
19 42001-000109 Cable clamp 1
11304-100029 Terminal 1
11304-100061 Terminal 1
21 31201-000940 Outdoor PCB assembly 1
22 22011-000015 Inductor 1
23 92007-003057 Electronic expand valve 1
24 41208-000162 Partition plate 1
25 10104-100046 Sensor assembly 1
26 A1201-009329 Cabinet carton 1
27 A1402-000028 Left foaming 1
28 A1402-000027 Right foaming 1
TCL Air Conditioner Service Manual
Outdoor Unit - FMA-32I4HD/DVO
Not shown in
explosion view
20
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
4
3
2
1
22
24
26
