TCL FMA-09CHSD/DVI

TCL Air Conditioner Service Manual
To install, proceed as follows:

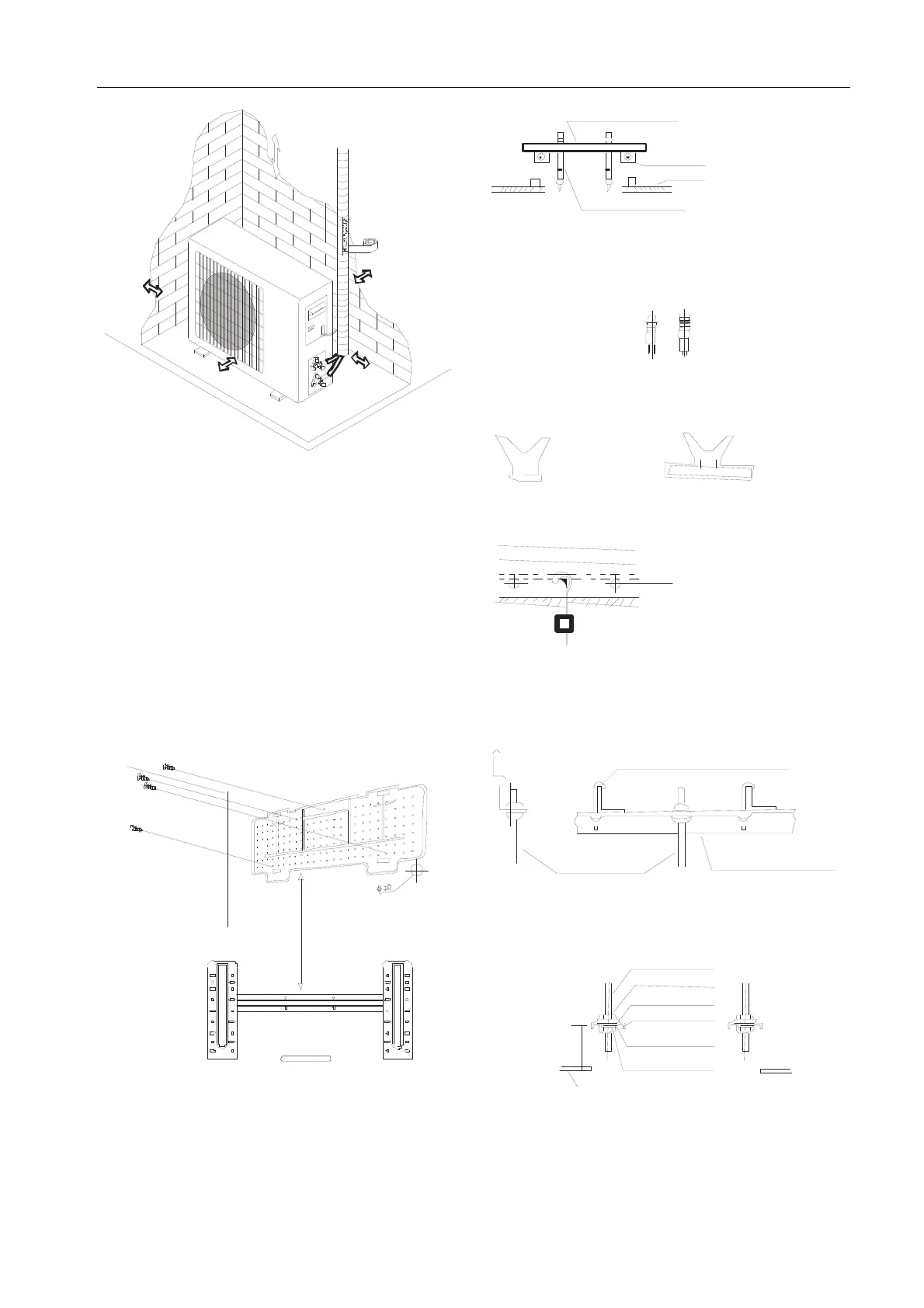

9.2.1 Installation of the mounting plate.
Wall split type:
1. By using a level, put the mounting plate in a
perfect square position vertically and horizontally.
2. Drill 32mm deep holes in the wall to fix the
plate.
3. Insert the plastic anchors into the hole.
4. Fix the mounting plate by using the provided
tapping screws.
5. Check that the mounting plate is correctly fixed.
Note: The shape of the mounting plate may be
different from the one above, but installation
method is similar.
Cassette and Duct type:
Wooden construction
Put the square timber over the roof beam, then install the
hanging screw bolts.
Ti mber ove r t he b eam
Ro o f b eam
Ha ngi ng Screw
Ce ili ng
Bolt
For finished concrete bricks
Install the hanging hook with expansible bolt into the
concrete deep to 45~50mm to prevent loose.
New Concrete Bricks
Inlaying or embedding the screw bolts.
(Blade shape (Slide insertion)
insertion)
(Pipe hanging and embedding screw bolt)
Steel roof beam structure
Install the supporting angle steel.

Overhanging the indoor unit
Adjust the gasket (down side) to 90mm over the
ceiling.
Install the hanging bolt into T
groove of the hanging
tool. Overhang the indoor unit and ensure it is level
using a level indicator.
300mm
5
0
0
m
m
2
0
0
0
m
m
3
00
m
m
5
0
0
m
m
Steel
Embeddin
g
screwbolt
Hanging screw bolt
Hanging bolts
S
uppor
ti
ng
angle steel
Ha ngi ng Bol t
Nu t (Up Si de)
Gasket (Up Side)
Installing Ear
Nut (Down Side)
Do wn sid e of the ce ili ng
G as k et (Dow n Side )
90mm
35
