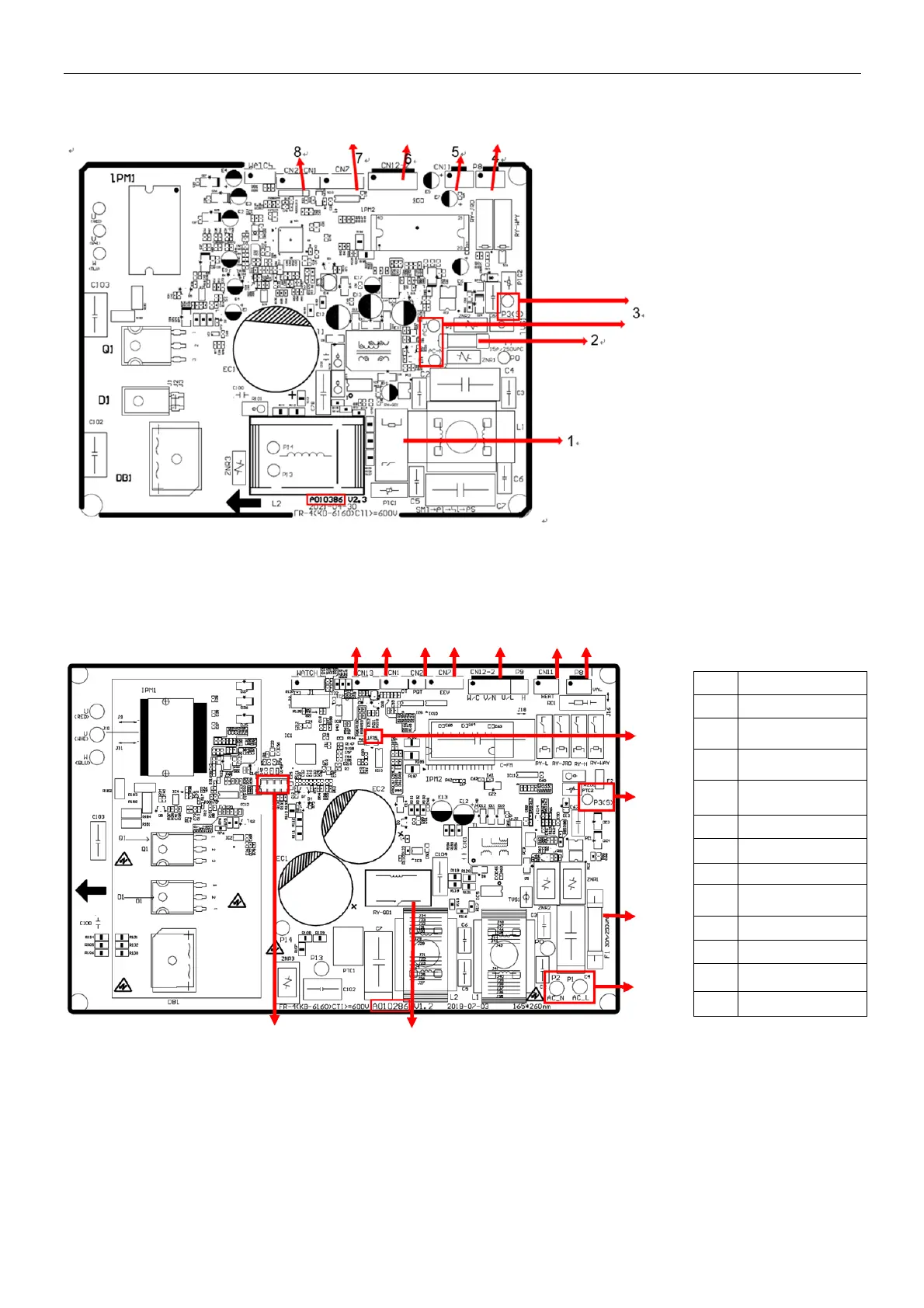

TCL Air Conditioner Service Manual
10
A010386
18,24K
A010286
Note:
OAT: Outdoor Ambient Temperature
OPT: Outdoor pipe temperature
1 DRED(OPTION)
2 OAT/OPT connector
3
Discharge sensor
connector
4
Electronic expansion
valve
5
AC/DC fan motor
connector
6 Heater
7 4-way valve
8 LED5
9
Communication
wiring
10 Fuse
11 L , N line
12
ODU PCB Mainly
relay
13 LED1-LED4
1
2 3 4 5
6
7
8
13
12
9
10
11
