3.2.10 P1--- Over / under voltage protection
1. Test voltage between L &N, When the power supply V＞AC260V or V＜AC150V, AC will display P1
protection, unit will recover back to previous status while V＞AC155V.
2. Test voltage on the big size electrolytic capacitor of ODU PCB, When DC busbar voltage V＞DC420V or V
＜DC150V, unit will recover back to previous status while DC190V＜V＜DC410V

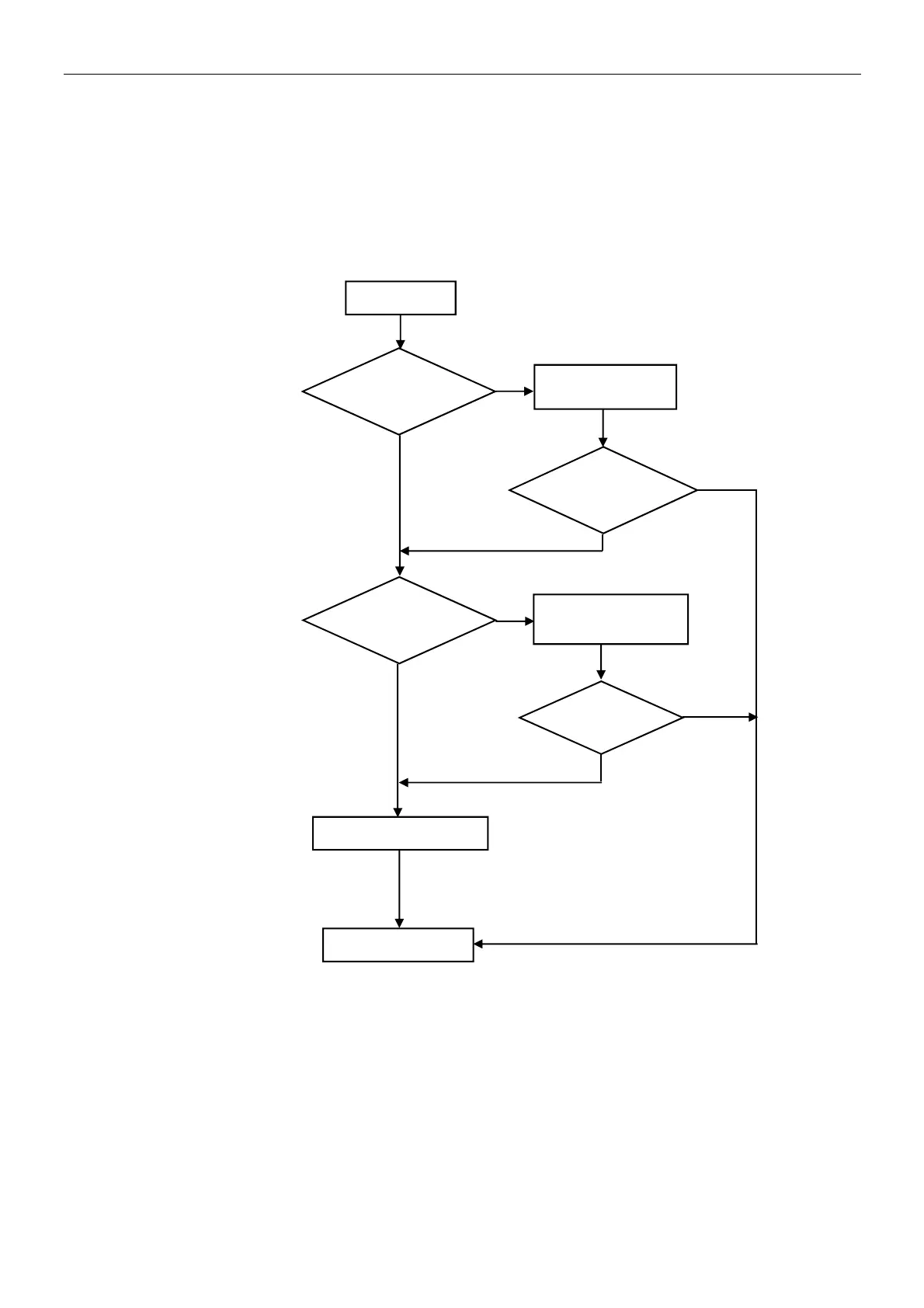

Display P1
Is the power supply
voltage btw145-260V?
Wait until the AC
volta
g
e recover
y
Replace ODU PCB
Yes
Yes
No
No
No
Yes
No
End
Wait until the busbar
voltage recovery
Unit works
normal?
Yes
Is the power supply
voltage btw145-260V?
Is the busbar voltage
btw150-420V?
