TCL TAC-24CHSC

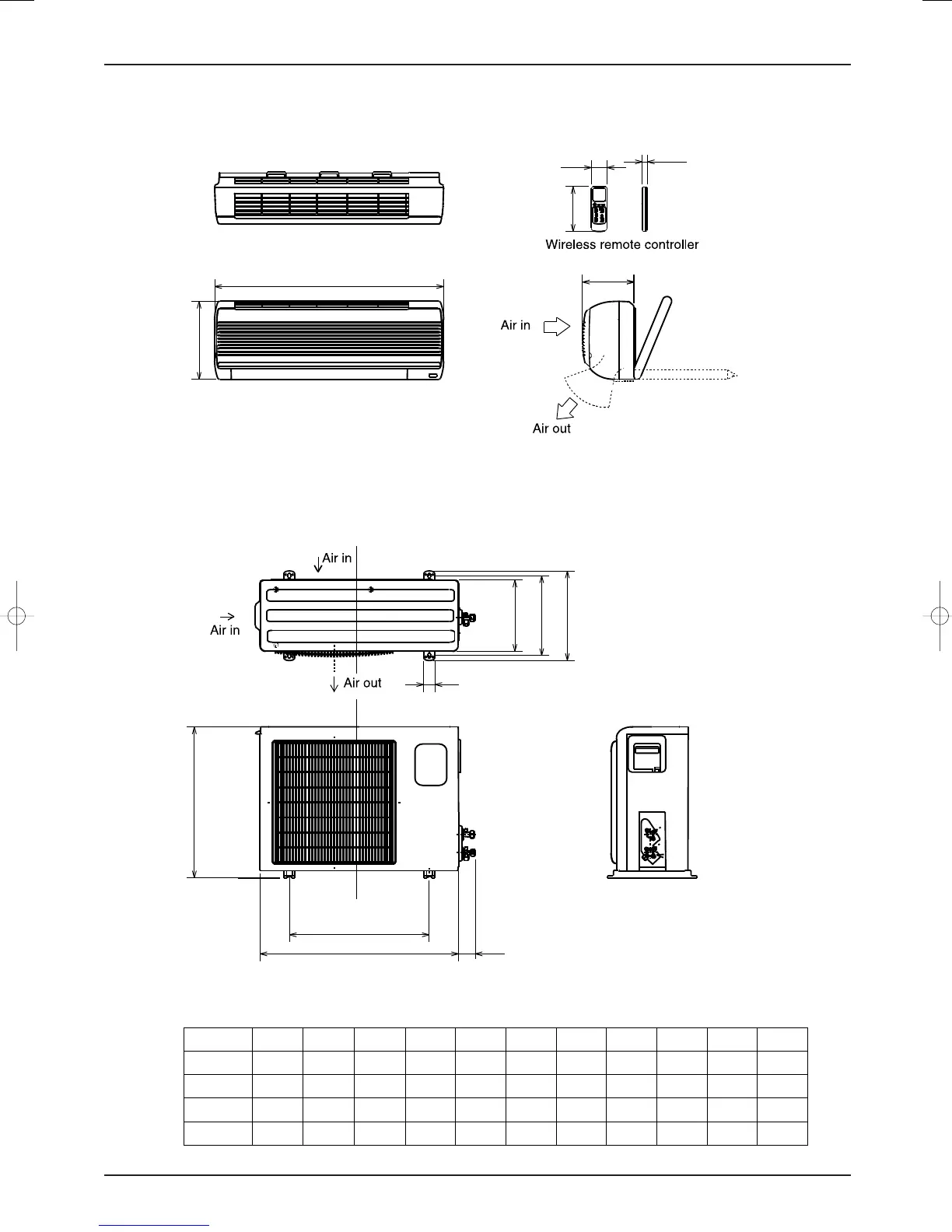

Product Dimensions
Outdoor Unit
OB207t-1qxp 25/9/97 8:51 PM Page 12
Indoor Unit
A
B
16mm
124mm
54 mm
C
H
G
F
I
K
J
D
E
Unit: mm
Capacity A B C D E F G H I J K
7K&9K 710 250 179 600 500 231 271 296 52 365
55
12K 770865 250 179 700 540 255 290 320 40 439 55
18K 1036 313 204 760 540 255 340 370 62 635 63
24K 1036 313 204 860 730 307 340 370 62 635 63
TCL Air Conditioner Service Manual
8
