TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
107

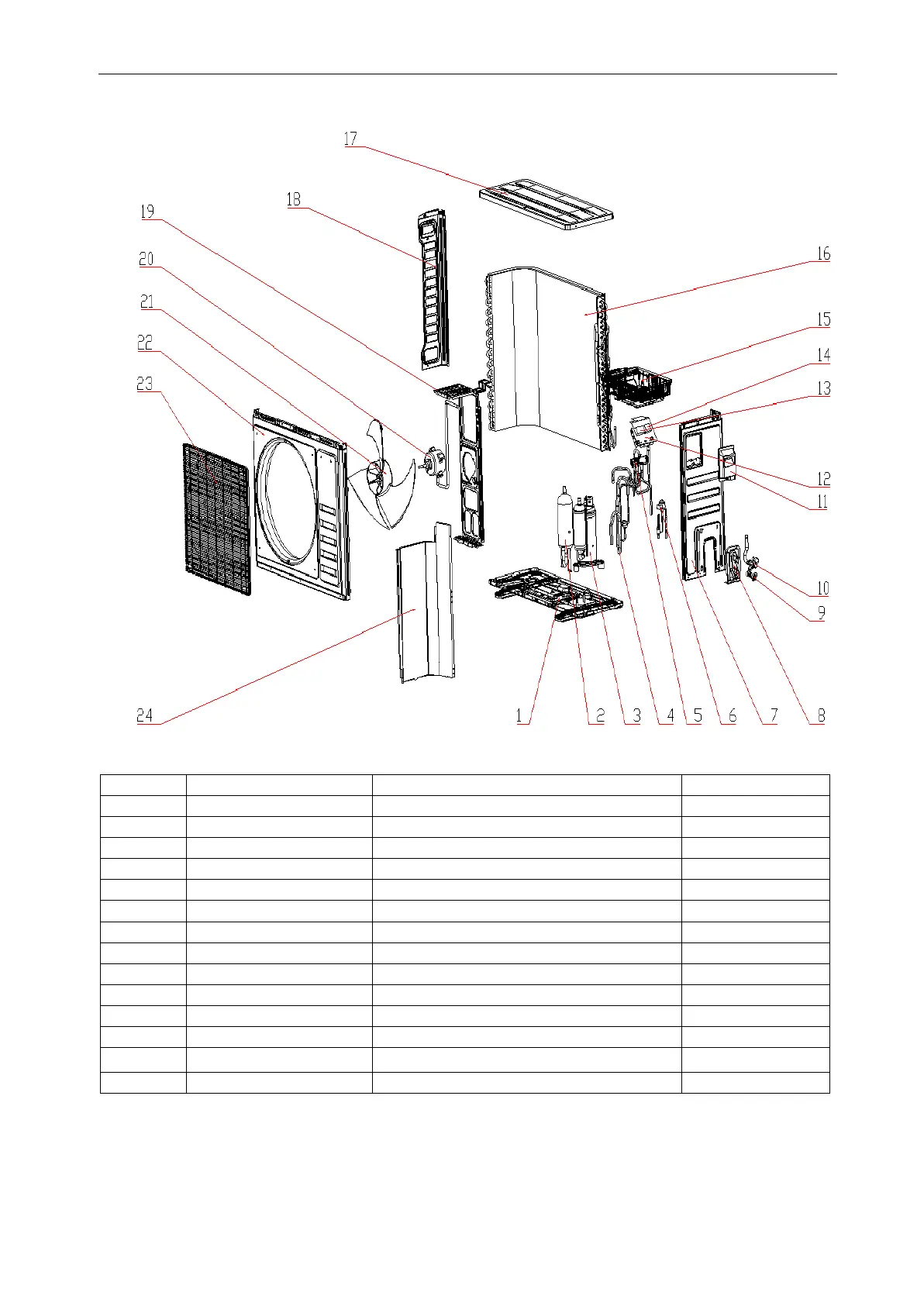

■ Model: TCC-36HH/DVO(02)
No
New Code
Part Name
Q'ty
1
41202-000573
Base
1
2
92003-000196
Liquid receptacle
1
3
95017-000031
Compressor
1
4
92006-009114
Suction pipe
1
5
95015-001962
4-way valve assembly
1
6
92007-020052
High-pressure valve ass'y
1
7
41205-000784
Right plate
1
8
41204-000020
Valve supporter
1
9
92007-020045
Valve assembly
1
10
92007-005289
Globe valve assembly
1
11
45014-003070
Large handle assembly
1
12
41211-000280
Electrical fixing board
1
13
11304-100141
Terminal
1
14
35005-000151
Terminal
1
