TCL U-MATCH-R32 Series

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
108
15
35001-000682
/
1
16
92011-010761
Condenser
1
17
41207-000048
Top cover
1
18
41205-000651
Left plate assembly
1
19
41203-000115
Motor supporter
1
20
22001-000605
Motor
1
21
42004-000249
Propeller fan
1
22
41206-000076
Front panel
1
23
42011-000031
Fan guard
1
24
41208-001074
Middle metal panel
1

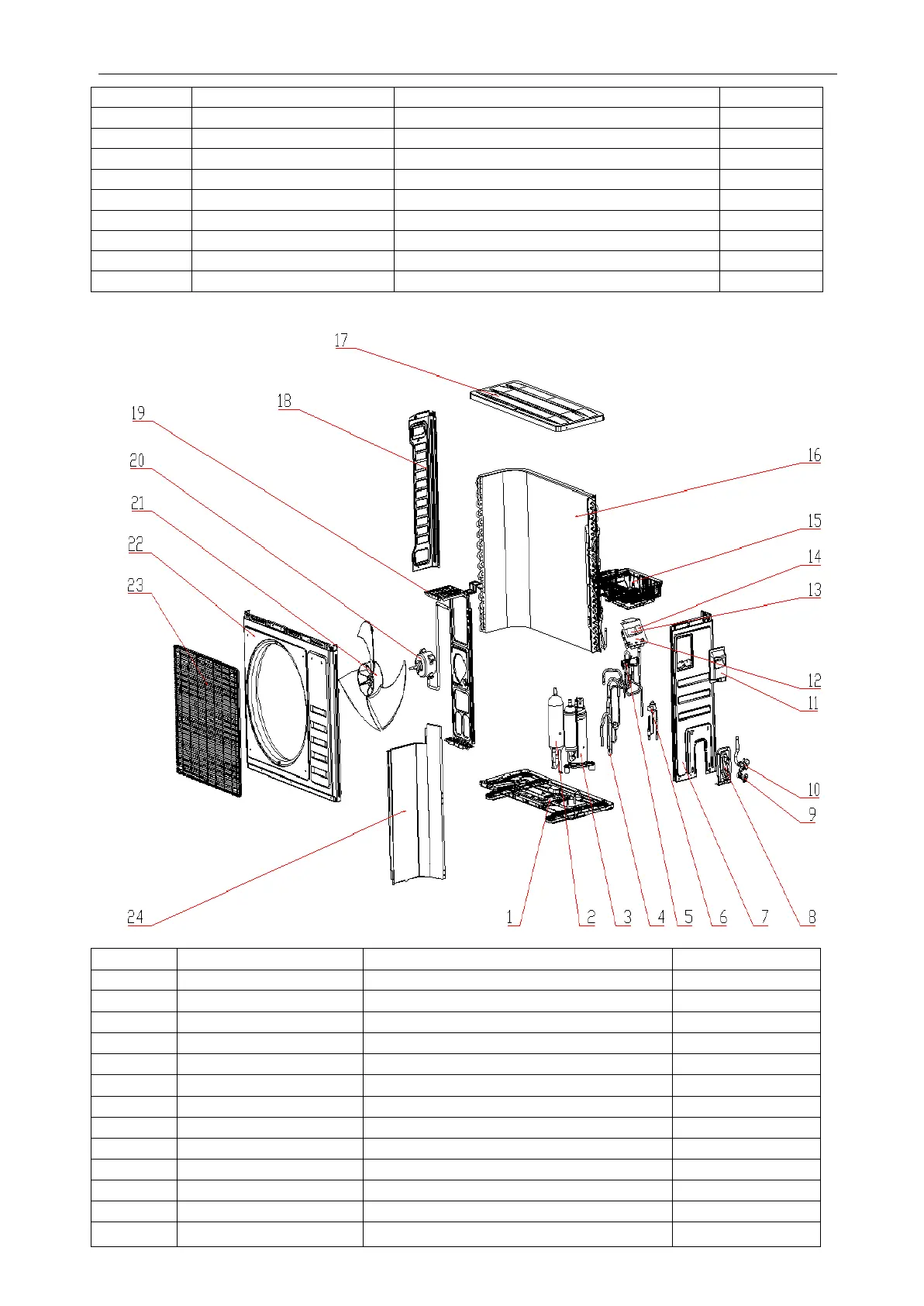

◼ Model: TCC-42HH/DVO(02)
No
New Code
Part Name
Q'ty
1
41202-000573
Base
1
2
92003-000196
Liquid receptacle
1
3
95017-000031
Compressor
1
4
92006-009114
Suction pipe
1
5
95015-001962
4-way valve assembly
1
6
95015-002053
High-pressure valve ass'y
1
7
41205-000784
Right plate
1
8
41204-000020
Valve supporter
1
9
92007-020045
Valve assembly
1
10
92007-005289
Globe valve assembly
1
11
45014-003070
Large handle assembly
1
12
41211-000280
Electrical fixing board
1
13
11304-100141
Terminal
1
