TCL U-MATCH-R32 Series

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
109
14
35005-000151
Terminal
1
15
35001-000682
/
1
16
92011-010761
Condenser
1
17
41207-000048
Top cover
1
18
41205-000651
Left plate assembly
1
19
41203-000115
Motor supporter
1
20
22001-000605
Motor
1
21
42004-000249
Propeller fan
1
22
41206-000076
Front panel
1
23
42011-000031
Fan guard
1
24
41208-001074
Middle metal panel
1

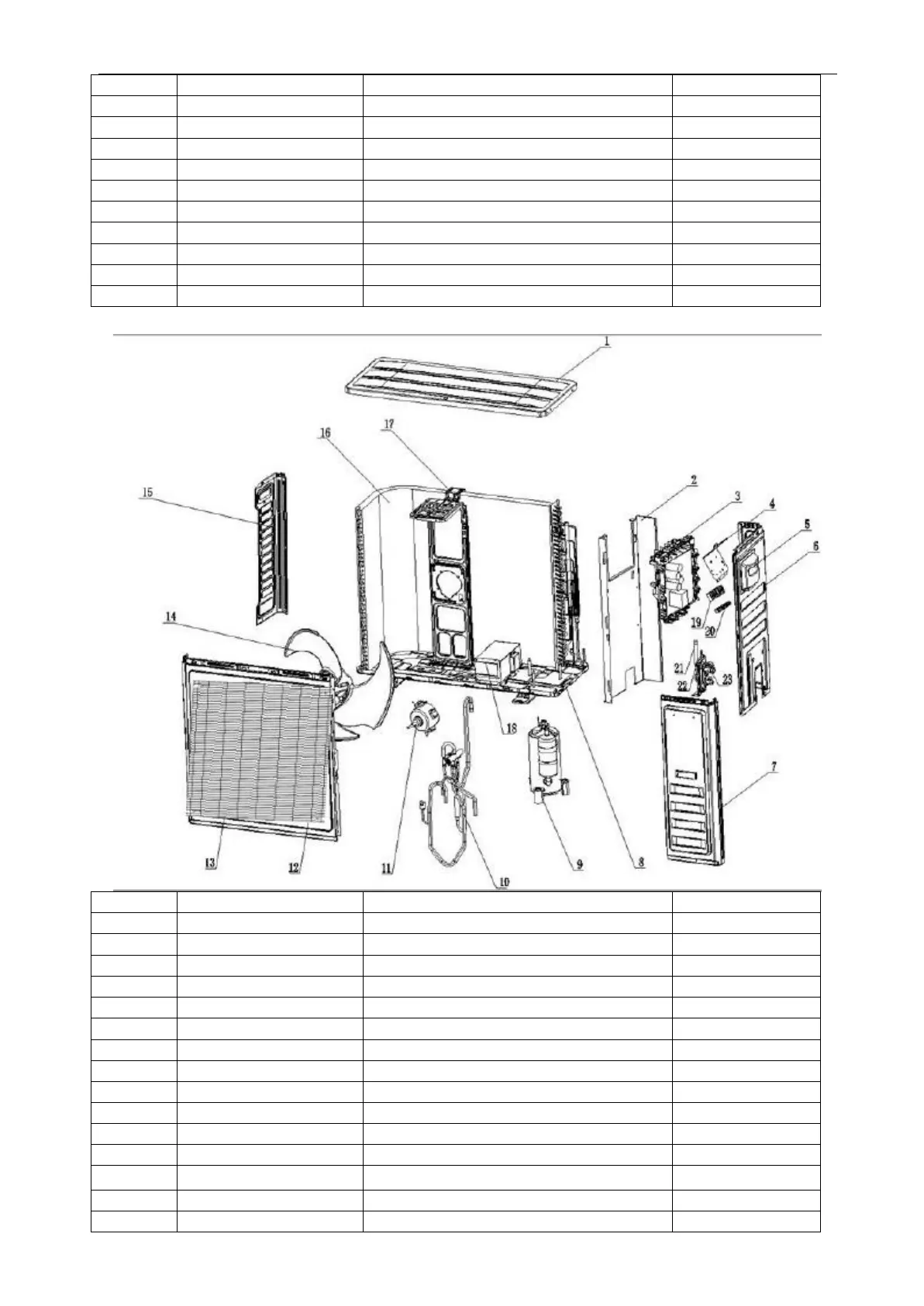

◼ Model: TCC-48HH/DV7O(02)
No
New Code
Part Name
Q'ty
1
45007-000096
Top cover
1
2
45014-005433
Middle partition component
1
3
31201-003116
Electrical components
1
4
45006-001444
PCB installation plate
1
5
41201-000001
Handler
1
6
45003-000325
Right side panel
1
7
45003-000324
Right side panel
1
8
45004-000533
Chassis components
1
9
92014-000900
Compressor
1
10
92007-020800
Four way valve components
1
11
25001-000415
Axial fan motor
1
12
45013-000265
Front panel
1
13
42011-000490
Air outlet grille
1
14
45009-000093
Axial flow fan
1
15
45003-000326
Left side panel
1
