TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
111
16
95003-004069
Condenser components
1
17
45005-000538
Motor support
1
18
22011-000029
Reactor
1
45014-005025
Reactor cover assembly
1
19
11304-100142
Power terminal block
1
35005-000151
Connecting terminal
1
20
42001-000106
tension disc
2
21
92008-000116
Stop valve assembly
1
22
41204-000020
Valve plate
1
23
92007-020045
Stop valve assembly
1

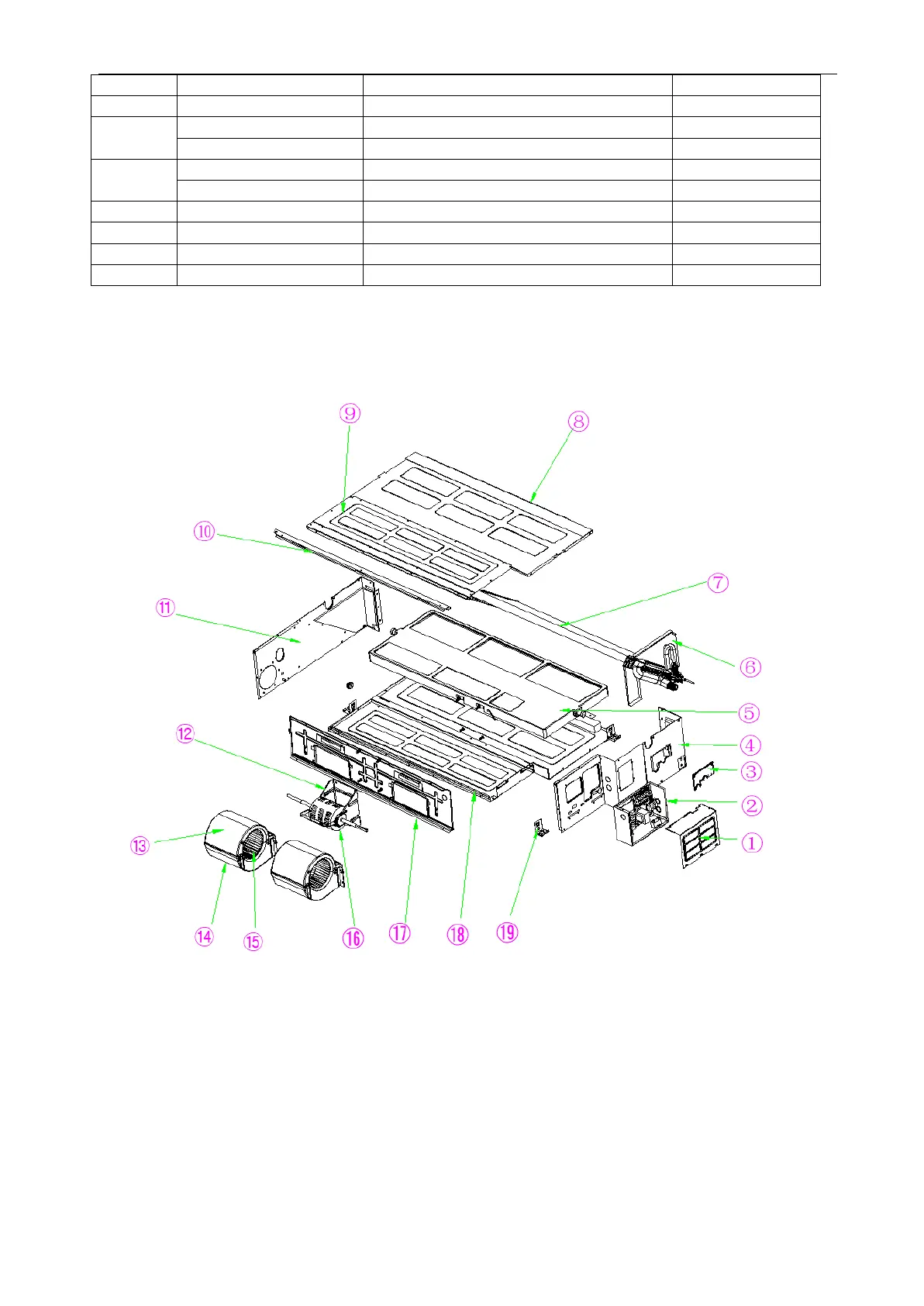

4.2 Indoor Unit
4.2.1 Duct Type
■ Model: TCC-12D2HWH/DVI(02) , TCC-18D2HWH/DVI(02)
