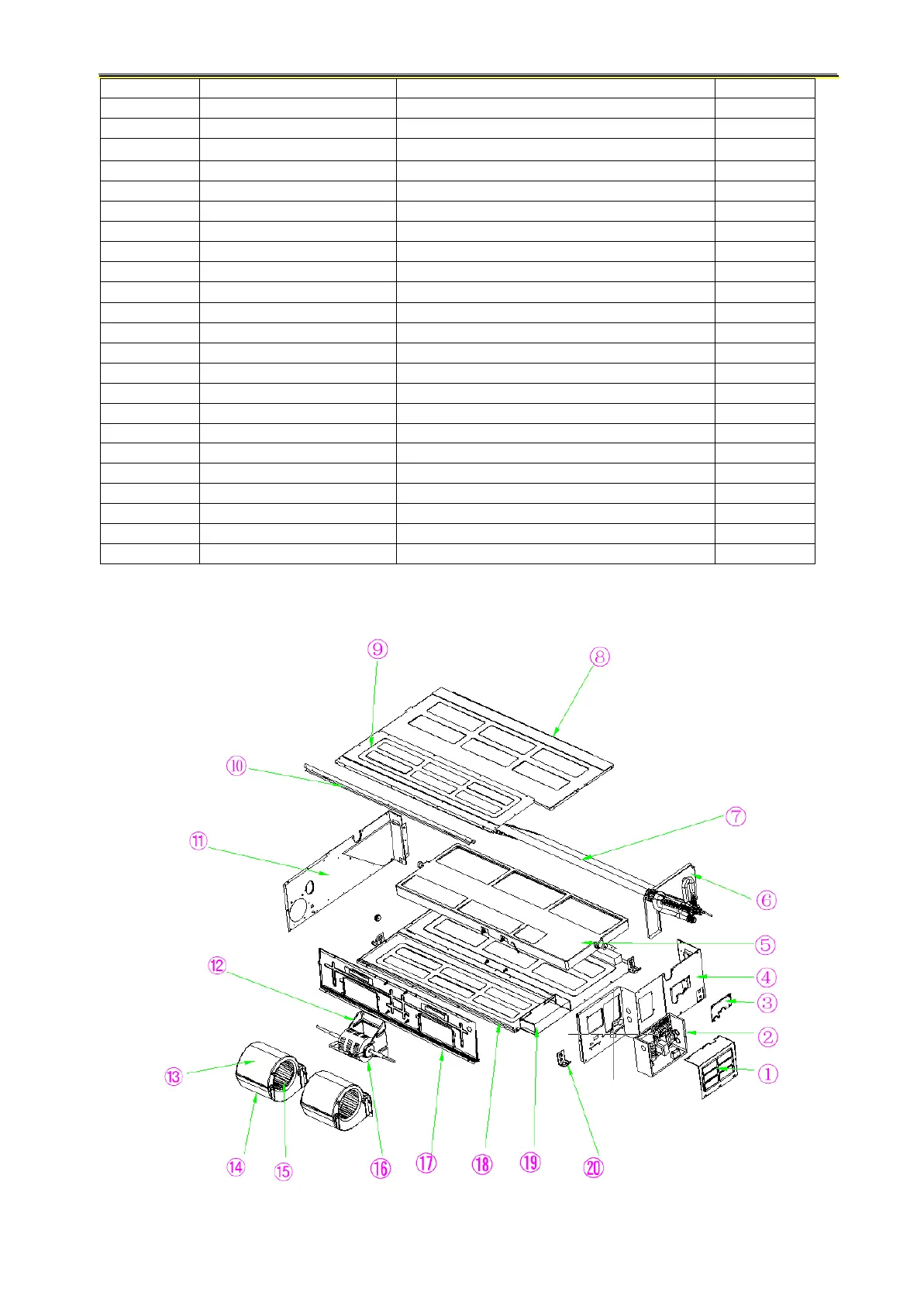

TCL U-MATCH-R32 Series

112
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
No.
Part No.
Part Name
Q’ty
1
45006-000064
Electric box cover
1
2
45006-000404
Electric box
1
3
46101-000149
Input/output tube sealing plate assembly
1
4
45003-000024
Right side panel
1
5
45011-000010
Foam drain pan assembly
1
6
45014-002323
Evaporator sealing plate assembly
1
7
95003-004395
Evaporator components
1
8
46101-000040
Bottom plate components
1
9
45008-000228
Return air outlet sealing plate
1
10
45008-000214
Return air outlet horizontal bar
1
11
45003-000023
Left side panel
1
12
45005-000573
Motor fixing seat
1
13
45008-000253
Wind turbine volute
2
14
45008-000141
Wind turbine volute
2
15
45009-000021
Centrifugal fan
2
16
25001-000246
Dual axis motor
1
17
46101-000116
Middle partition components
1
18
46101-000048
Top panel components
1
19
45014-002175
Hook
4
20
35004-001818
PCB
1
21
25006-000137
Relay
1
22
11304-100000
Terminal blocks
1
23
45002-000078
Crimping plate
2
■ Model: TCC-24D2HWH/DVI(02)
