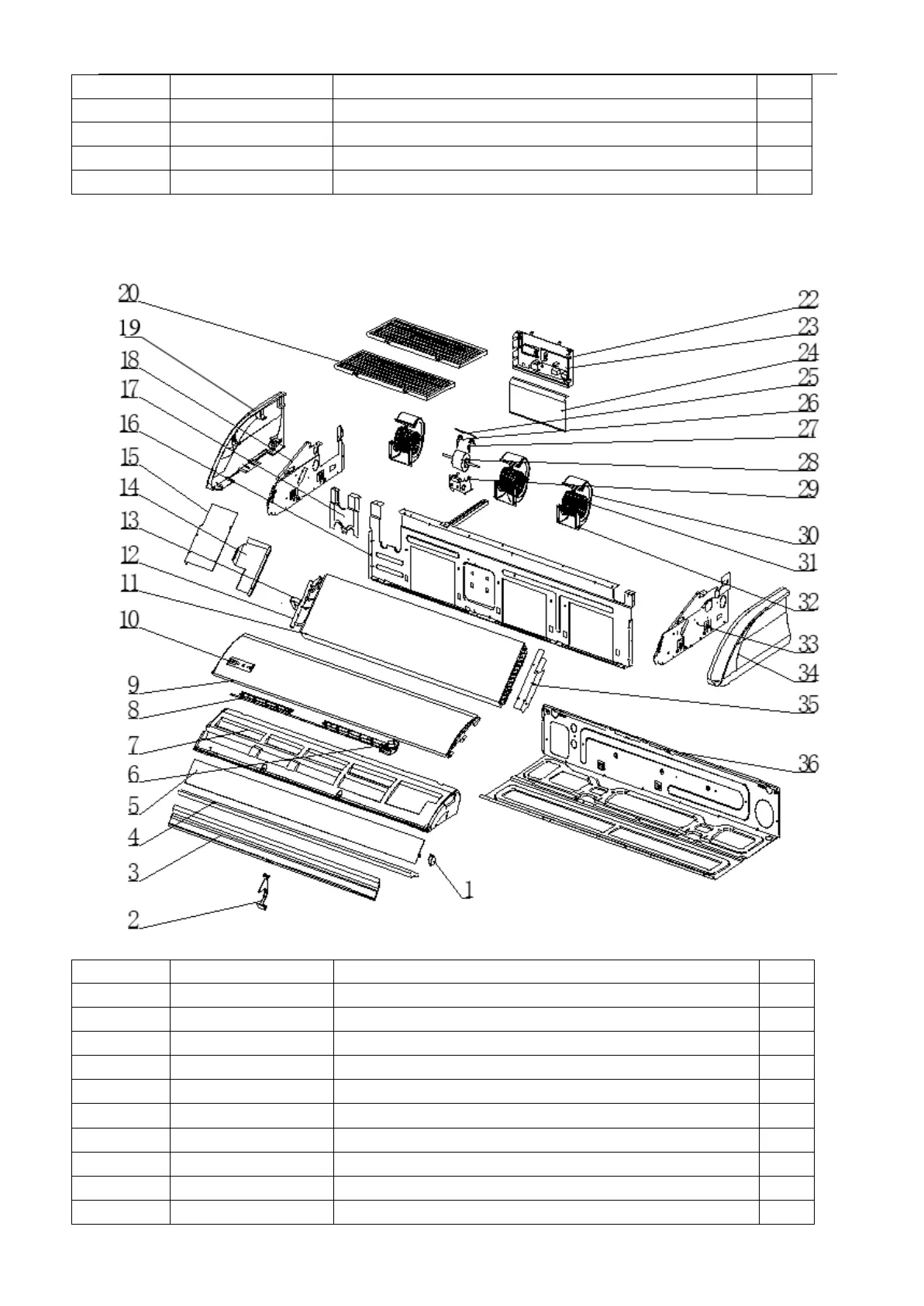

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
20
45008-000153
Wind turbine lower volute
2
22
45003-000044
Left block
1
23
45004-000021
底盘组件
1
24
45011-000088
接水盘组件
1
25
25001-000123
步进电机
1
TCC-36ZHRH/DV(02)
No
New Code
Part Name
Q'ty
1
25001-000240
Step Motor
1
2
45008-000217
Air guide bar support
1
3
45008-000179
Tuyere floor
1
4
45008-000156
Tuyere bubble
1
5
45008-000146
Vane
1
6
25001-000123
Step Motor
1
7
45011-000053
Water pan assembly
1
8
45801-000022
Leaf blade components
1
9
45013-000162
Front panel
1
10
45801-000017
Display PCB box
1
