TCL U-MATCH-R32 Series

127

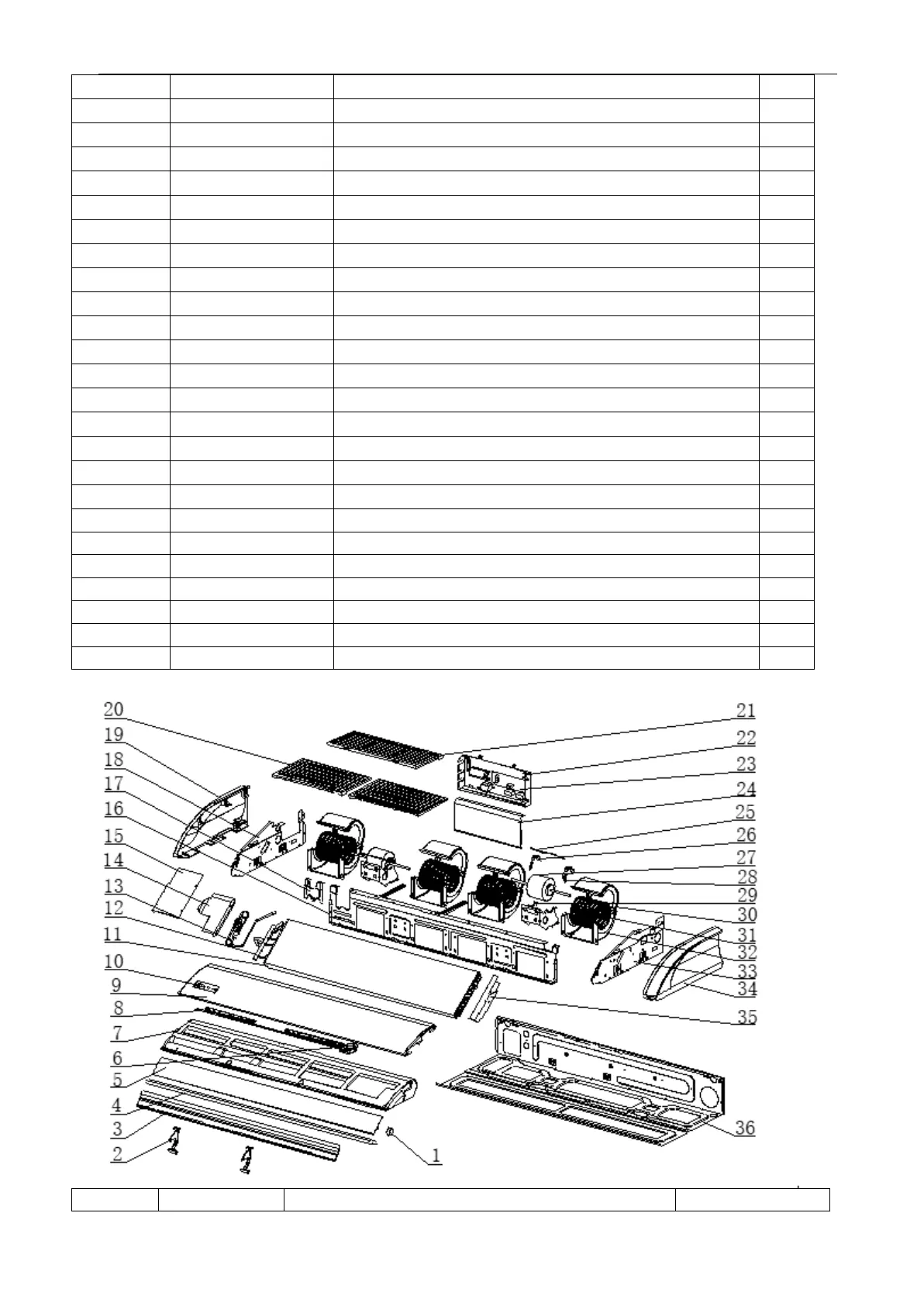

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
11
95003-000814
Evaporator assembly
1
12
95016-000525
Evaporator output tube assembly
1
13
95016-000737
Evaporator input tube assembly
1
14
45801-000046
Lower right sealing assembly of evaporator
1
15
45801-000074
Evaporator right upper sealing assembly
1
16
45014-003318
Partition plate assembly
1
17
45014-003522
Valve supporter
1
18
45003-000202
Right plate assembly
1
19
45014-002001
Right side block
1
20
45014-003013
Air intake grille assembly
2
22
35001-000738
Electric control box component
1
23
35004-000754
Indoor control panel
1
24
45006-000354
Electric box cover
1
25
45005-000255
Motor limit card
1
26
45005-000196
Motor clasp assembly
1
27
25001-000430
Dc motor
1
28
45005-000232
Motor bearing left snap
1
29
45005-000396
Motor mount
1
30
45008-000195
Wind turbines volute
3
31
45009-000015
Centrifugal Fan
3
32
45008-000153
Wind turbines volute
3
33
45003-000092
Left plate assembly
1
34
45003-000044
Left side block
1
35
45801-000033
Evaporator left sealing cover plate assembly
1
36
45004-000206
Base
1
Model: TCC-42ZHRH/DV(02)
No
New Code
Part Name
Q'ty
