TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
Duct Type and Ceiling & Floor Type

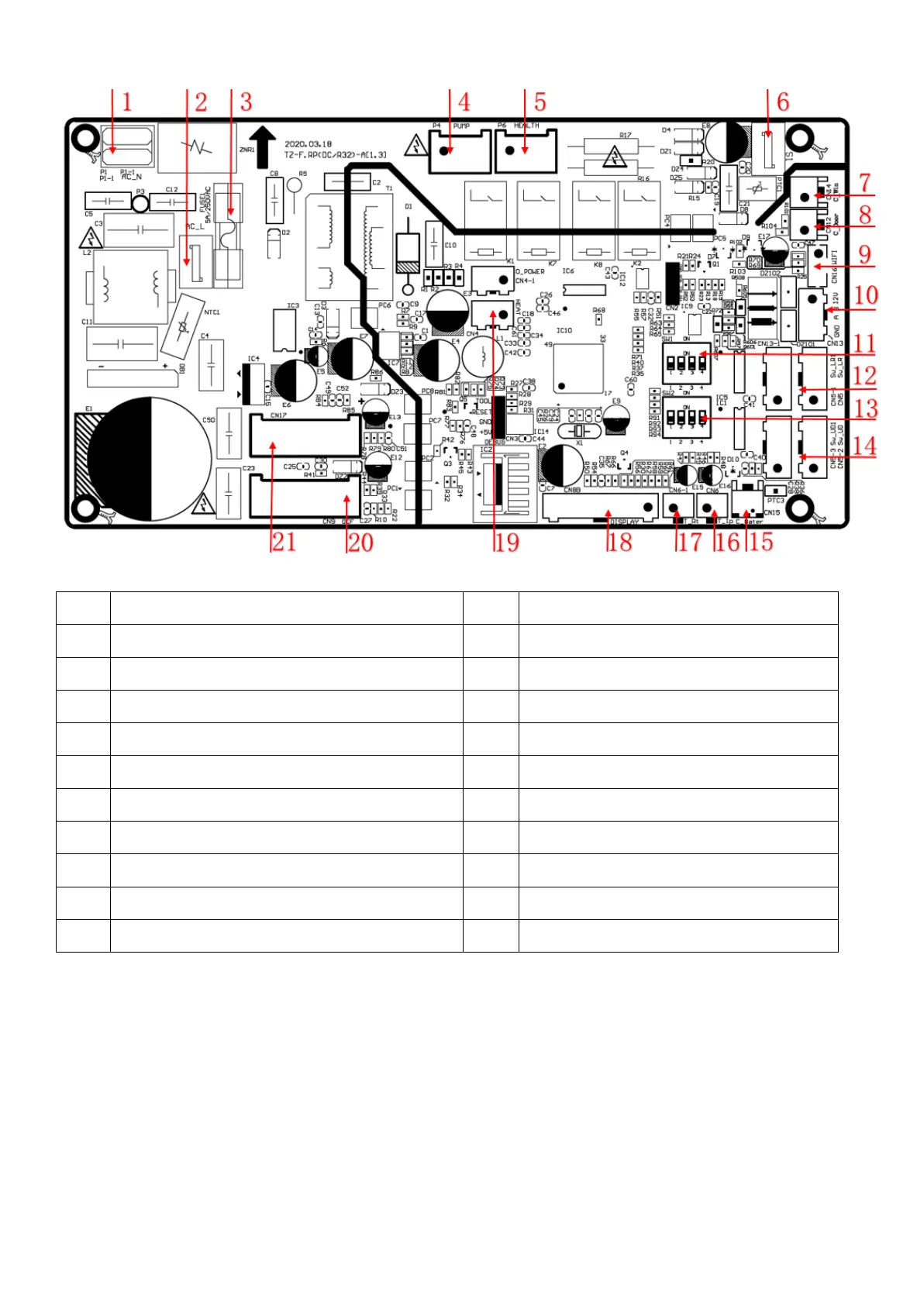

1
Neutral wire input
12
Dial code switch 1
2
Live wire input
13
Left-Right swing motor connector
3
Fuse
14
Dial code switch 2
4
Water pump
15
Up-Down swing motor connector
5
Reserved connector
16
Water level switch connector
6
Communication connector
17
Indoor coil temperature sensor connector
7
Window ban switch connector
18
Outdoor ambient temperature sensor connector
8
Access control switch connector
19
Display board connector
9
WIFI connector
20
DC motor connector
10
485 communication connector
21
Reserved connector
11
Dial code switch 1
