TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
1
Reserved
7
Compressor crankcase electric heating belt
2
Reserved
8
Communication line
3
Outdoor temperature sensor
9
Live wire input
4
Electronic expansion valve
10
Ground wire
5
DC fan motor output
11
Neutral wire input
6
Four-way valve

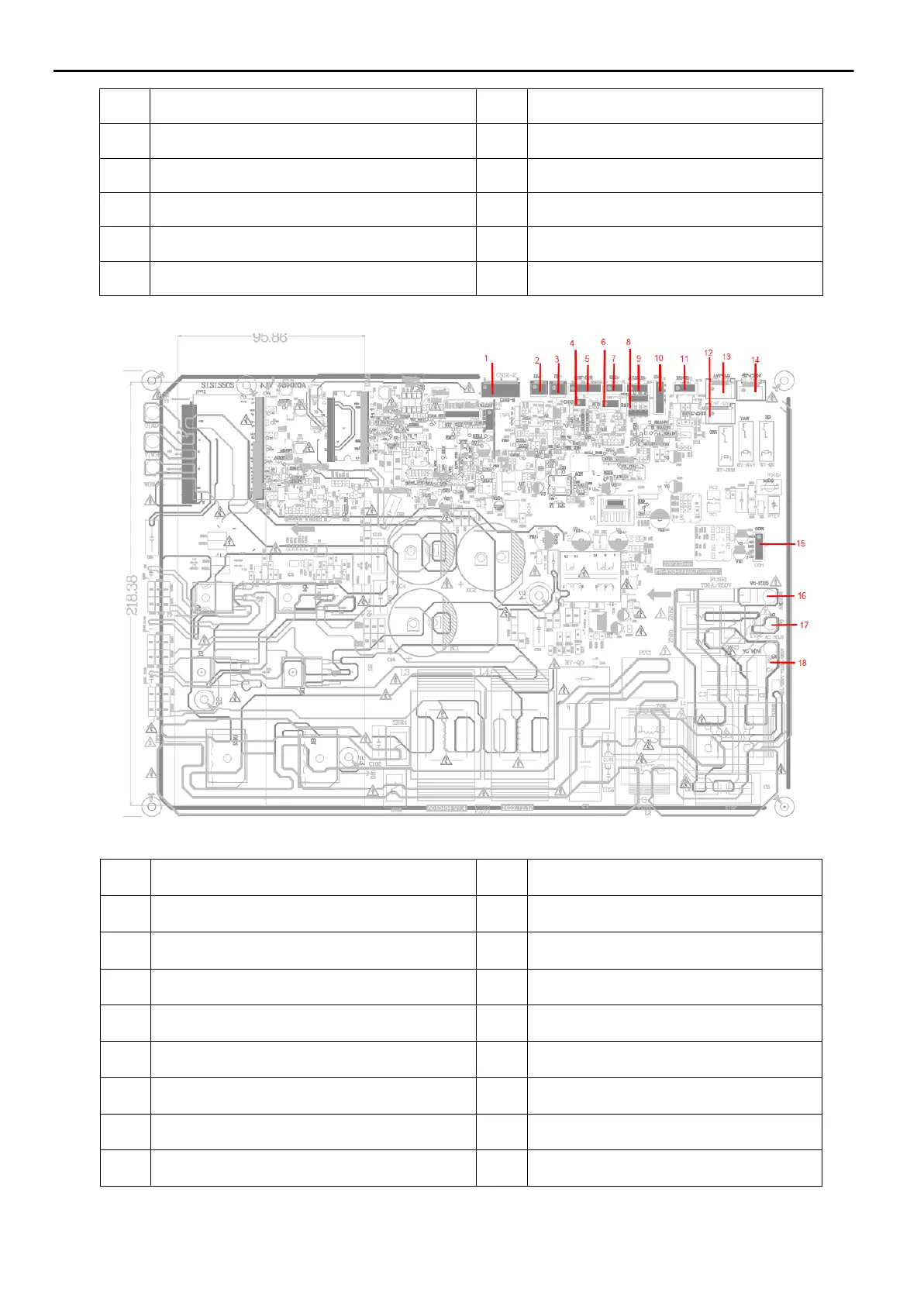

36/42K/48K/55K
1
DC fan motor output
10
Electronic expansion valve
2
High-voltage switch
11
485 communication
3
Low-voltage switch
12
Compressor crankcase electric heating belt
4
Reserved
13
Four-way valve
5
Outdoor temperature sensor
14
Reserved
6
Reserved
15
Reserved
7
High pressure sensor
16
Live wire input
8
Reserved
17
Ground wire
9
Reserved
18
Neutral wire input
