1 Introduction
The CS-105 is designed to be a next-generation NMRA DCC and Märklin/Motorola command station
featuring on-board WiFi with full support for NMRA LCC. An Auxiliary Cab Bus port is also provided which
can be used with some of the proprietary system buses of other manufacturers. The CS-105 has the
capacity to scale from small, to large, to huge model railroads.
1

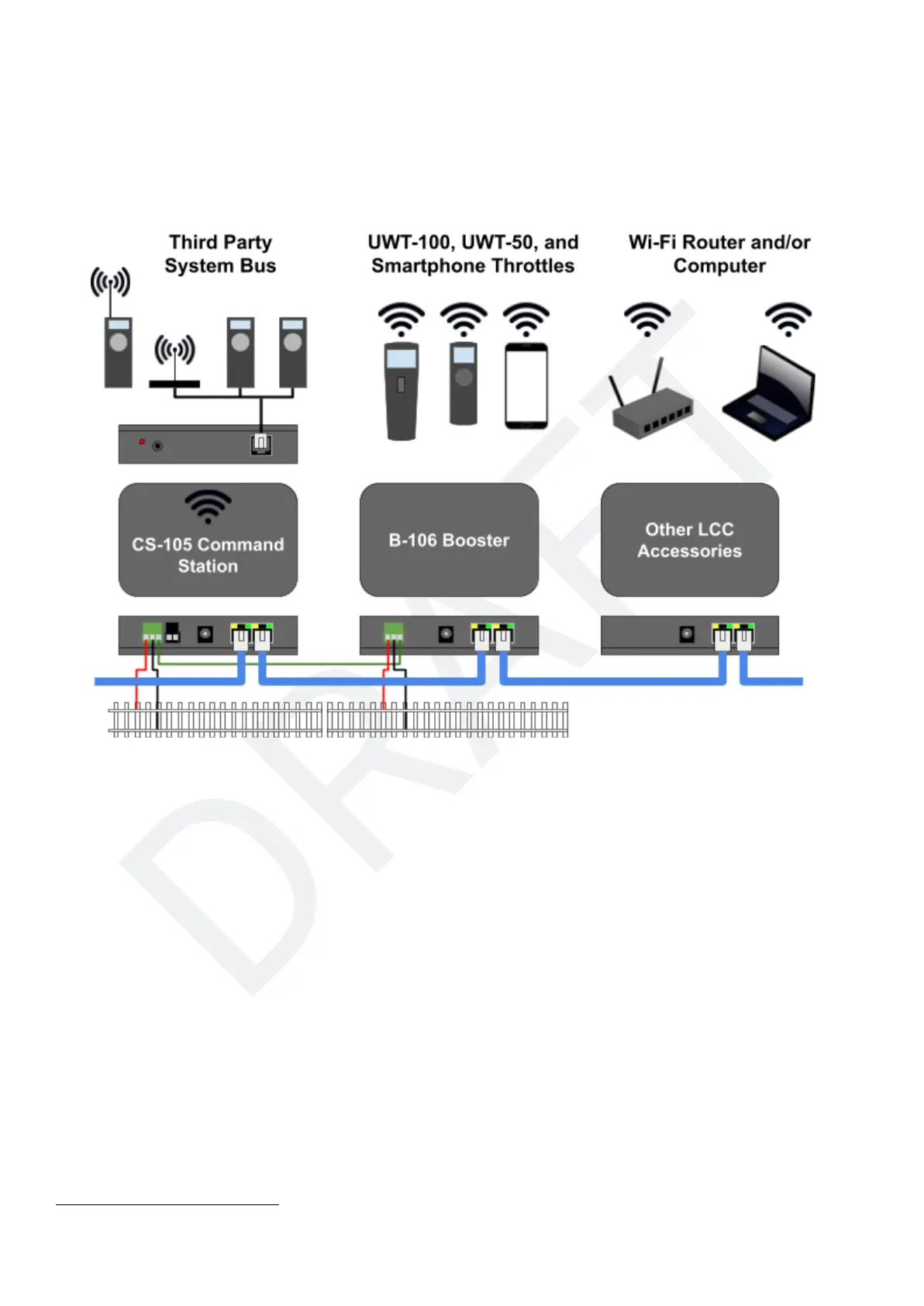

Shown above is an example of how the CS-105 can expand using other LCC devices, as well as how you
can seamlessly integrate existing devices from other manufacturers.
1.1 Specifications
● 5 Ampere maximum Continuous Current Rating (add-on Boosters Available)
● Up to 4 LCC WiFi Throttles via on-board WiFi Access Point
● Up to 62 Cab Bus (NCE, Ramtraxx™, and SystemOne™) Throttles and Accessories (via RJ-11)
● Up to 31 XpressNet™ (Lenz, Roco, ZTC, etc...) Throttles and Accessories (via RJ-11)
● One RailCom
®
detector
● One dual-RJ45 header for LCC Communication
● Support for LCC & DCC Data Transmission Over LCC
● 400mA output current capacity per LCC port
● Unlimited WiFi Throttle Connections Through Auxiliary LCC-enabled WiFi Base Station(s)
● Simultaneous running for up to 260 Locomotives and Consists
1
Provides NMRA S-9.1.2 Full Scale Power Station (Booster) Interface output capable of supplying 400mA, enough to
support more than 30 TCS boosters.
