1.3 Status LEDs
The CS-105 includes a total of five LEDs for providing information about the device’s status. The LEDs are
also used during configuration as described in the Push Button Configuration section. Additionally, both the
user and TCS support can use these LEDs in order to Troubleshoot issues.

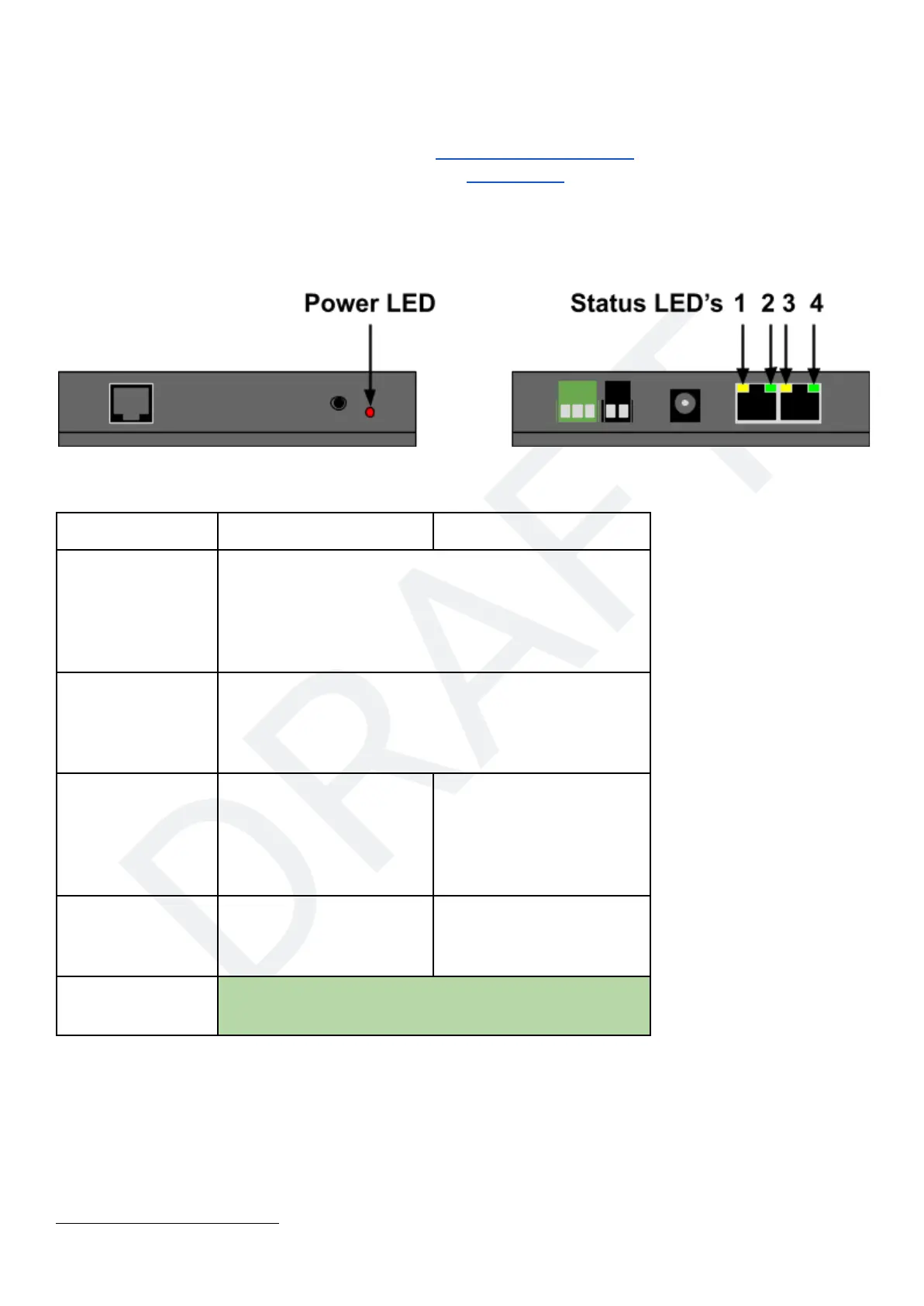

On Side A of the CS-105 there is a single red Power LED. This LED is constantly on whenever the CS-105
has incoming power. On Side B, the dual RJ-45 LCC connector has the remaining four LEDs in a Yellow,
Green, Yellow, Green pattern as shown below:
Normal Operation
(From L to R)
CS
Booster
LED 1 - Yellow
closest to the barrel
jack
Track Power
- solid on: track power on
- solid off: track power off
- fast blink, short circuit
- slow blink: thermal overload
LED 2 - Green
CAN Active and LCC Activity
- solid on: CAN bus connected
- solid off: CAN bus disconnected
- blink: LCC activity (TX)
LED 3 - Yellow
WiFi Status
- blink: searching /
connecting
- constant off, AP mode
- constant on, client mode
Incoming DCC signal
- on DCC signal present
- off DCC signal absent
LED 4 - Green
WiFi/LCC Full - Either:
- 4 WiFi clients (on)
- 10 LCC sockets (on)
Identify LED
Press button in CDI - LED
comes on for 30 seconds
LED 4 - Green
(upon crash)
Blink Codes
2
Bootloader
When the device is in Firmware Upgrade mode, LED 1 and LED 4 are alternately blinking like a grade
crossing. LED 2 (LCC) and LED 3 (WiFi) are operating as normal.
2
Blink Codes are defined in detail in the Troubleshooting section of this guide
