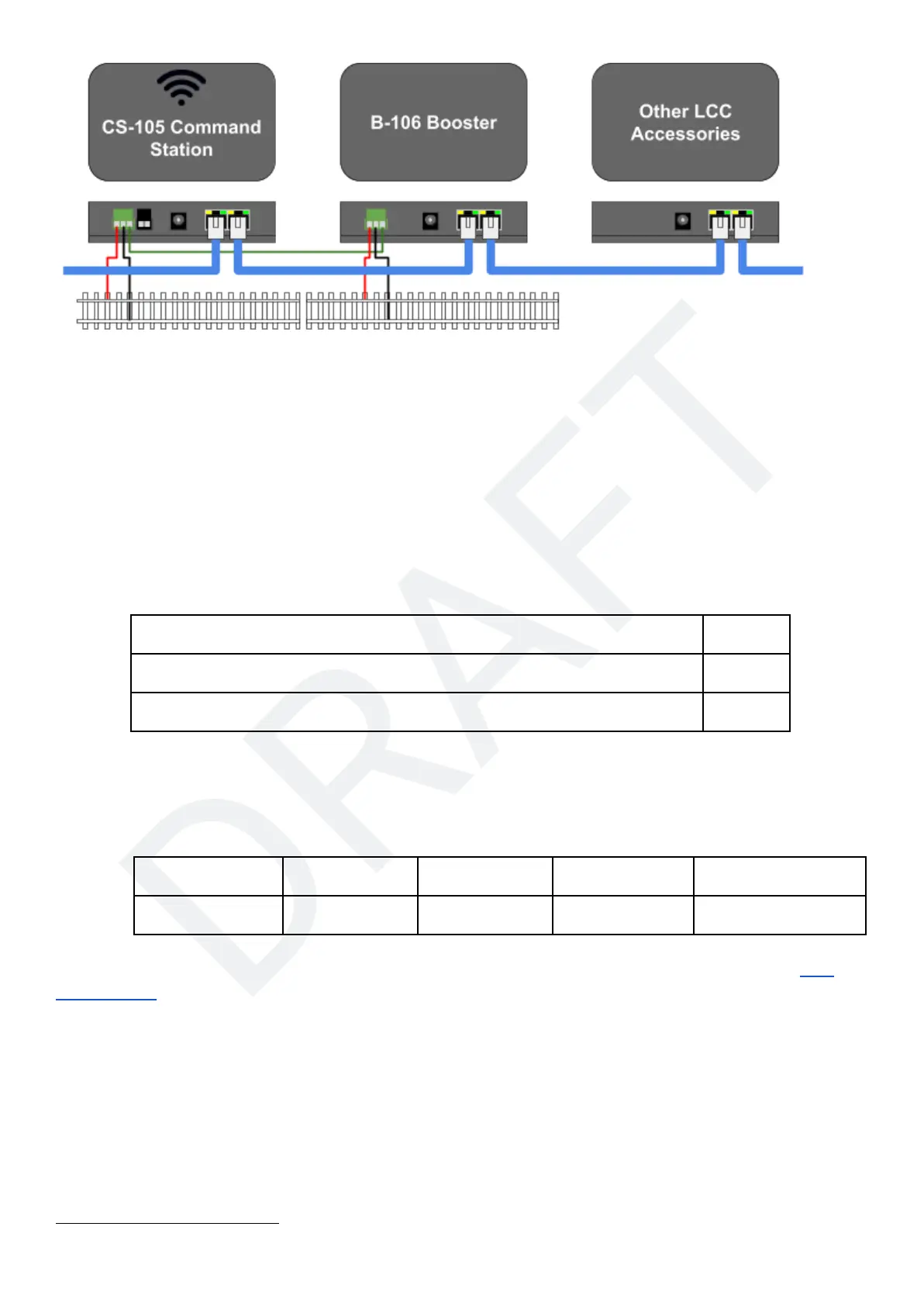

Shown above is a simplified diagram of how to wire the CS-105 into a LCC network with an additional
B-106
3 Throttle Support
3.1 WiFi
The CS-105 has built-in WiFi. The WiFi interface can be used for connecting different accessories including
LCC throttles, LCC accessories, gateways & repeaters, and computer software such as JMRI. The CS-105
WiFi has several limitations that may need to be considered.
Number of Simultaneous Connected Devices Supported
Access Point mode (default, not using an external Access Point or router)
Station mode (client to an external Access Point or router)
In order to simultaneously connect more than 10 LCC throttles over WiFi, auxiliary WiFi base stations (sold
separately) or a WiFi LCC repeater software running on a PC can be added in order to expand the number
of connected WiFi devices to 250.
The default WiFi Configuration for the CS-105 is as follows:
Note: This configuration is programmed into TCS WiFi throttles such as the UWT-100 and UWT-50 by
default as the first profile. For more information about configuring the CS-105 WiFi modes, see the WiFi
Configuration section of this guide.
3.1.1 LCC
LCC Over WiFi
TCS Universal WiFi Throttles can be connected to the CS-105 by placing them on the same WiFi network
as either the CS-105 or an auxiliary WiFi base station. Once on the same network, a UWT will automatically
connect to the CS-105.
5
5
The default profile must not be overwritten or deleted and the default WiFi configuration of the CS-105 is unchanged.
© 2022 Train Control Systems Page 9 of 49
