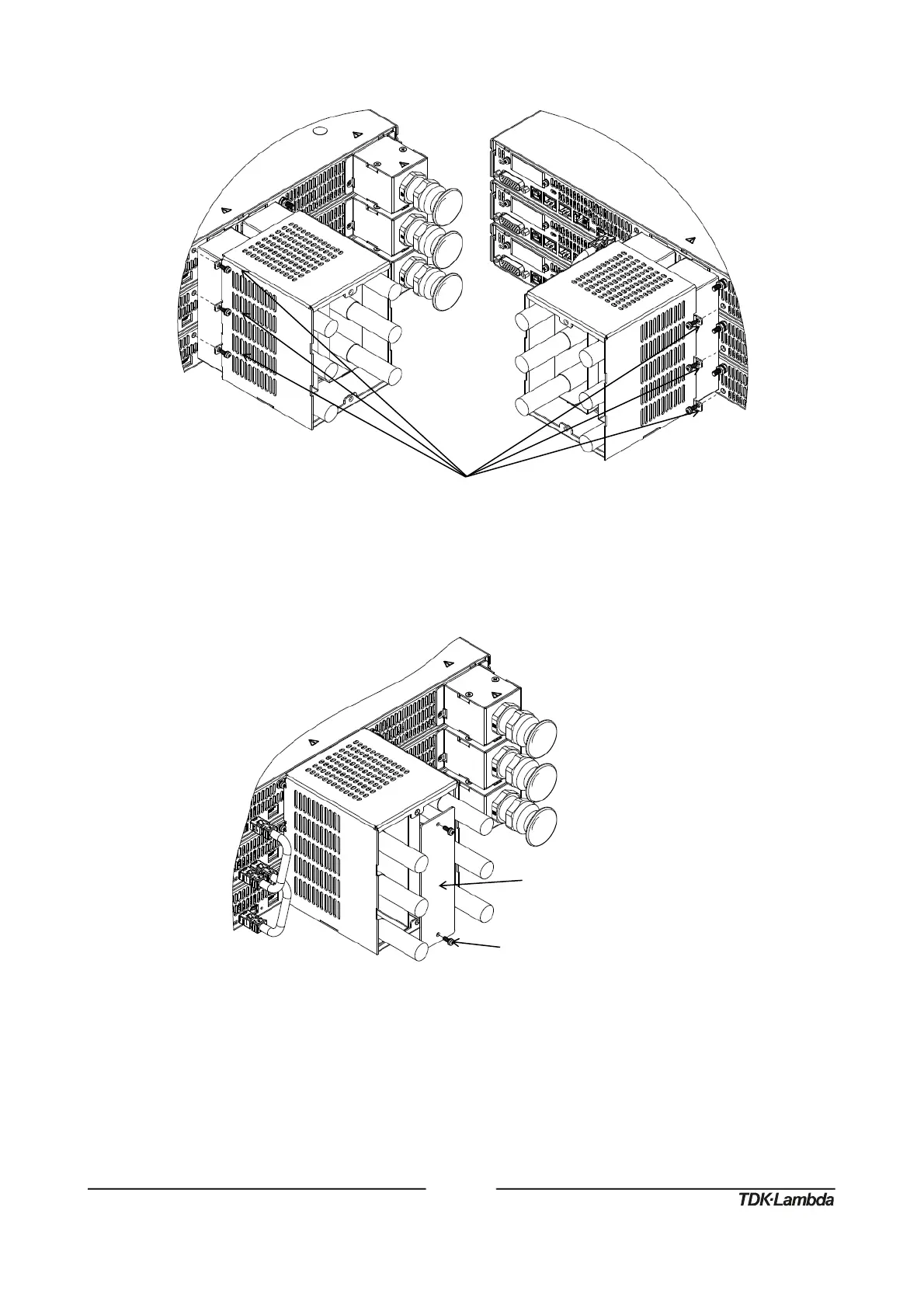

7. Fix output cover to the power supplies using six SEMS screws as illustrated in Figure 14.






















Figure14:Three20V‐40VUnitsOutputCoverAssembly


8. Fix protection insulator to the output cover using two SEMS screw as illustrated in Figure 15.


















Figure15:Three20V‐40VUnitsProtectionInsulatorAssembly

M3x8SEMSScrew,NickelPlated
Tighteningtorque:4.7‐5.7Lbf‐inch(0.53‐0.64Nm)
ProtectionInsulator
M3x8SEMSScrew,NickelPlated
Tighteningtorque:4.7‐5.7Lbf‐inch(0.53‐0.64Nm)
