3. Connect two paralleling cables from top unit M connector to bottom unit S connector as
illustrated in Figure 3.













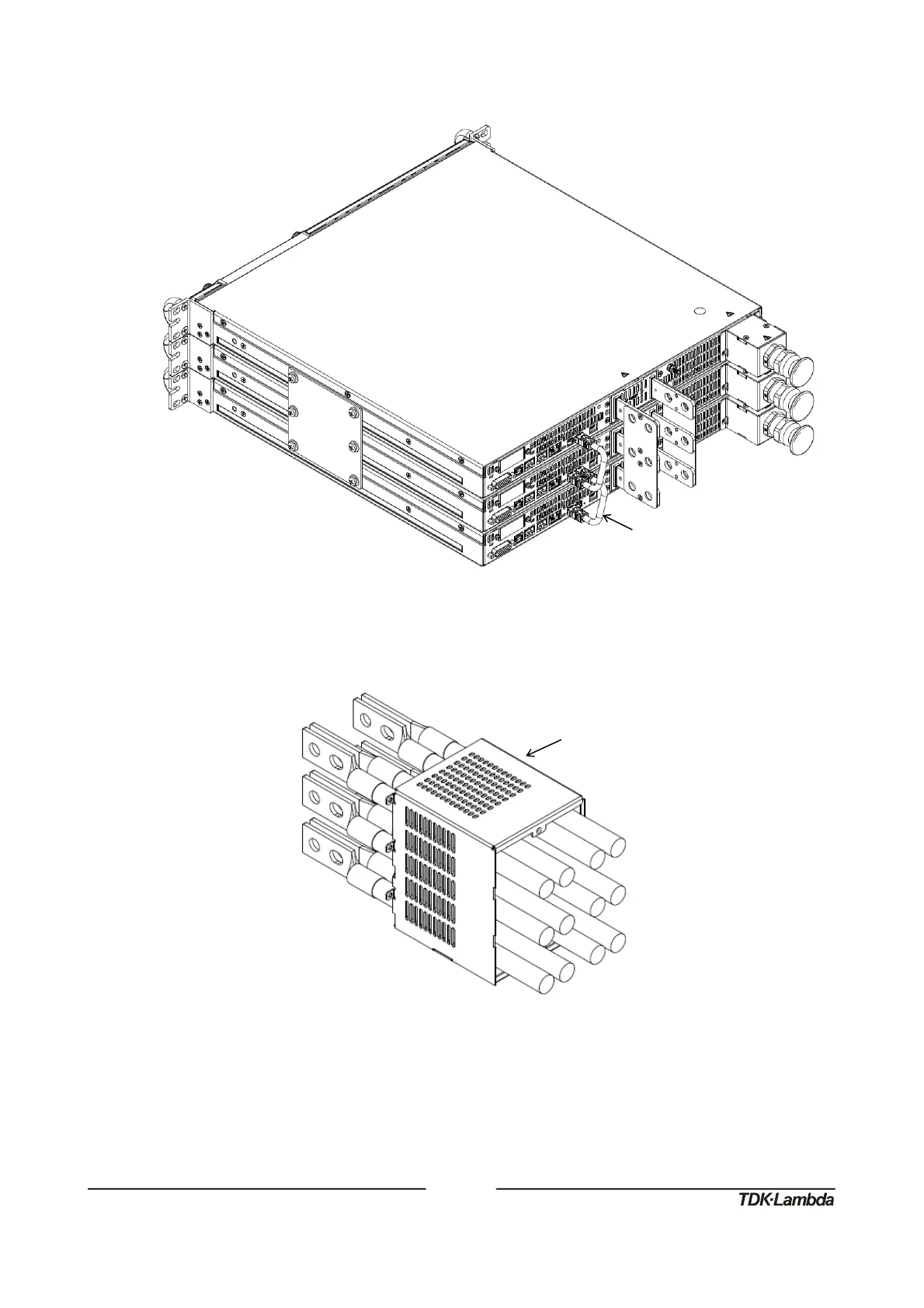

Figure3:Three10VUnitsParallelingCableConnection


4. Insert output cover through the cables as illustrated in Figure 4.



Figure4:OutputCoverInsertion


 
ParallelingCable

Output
Cover

