Teac A-2340 - Page 12

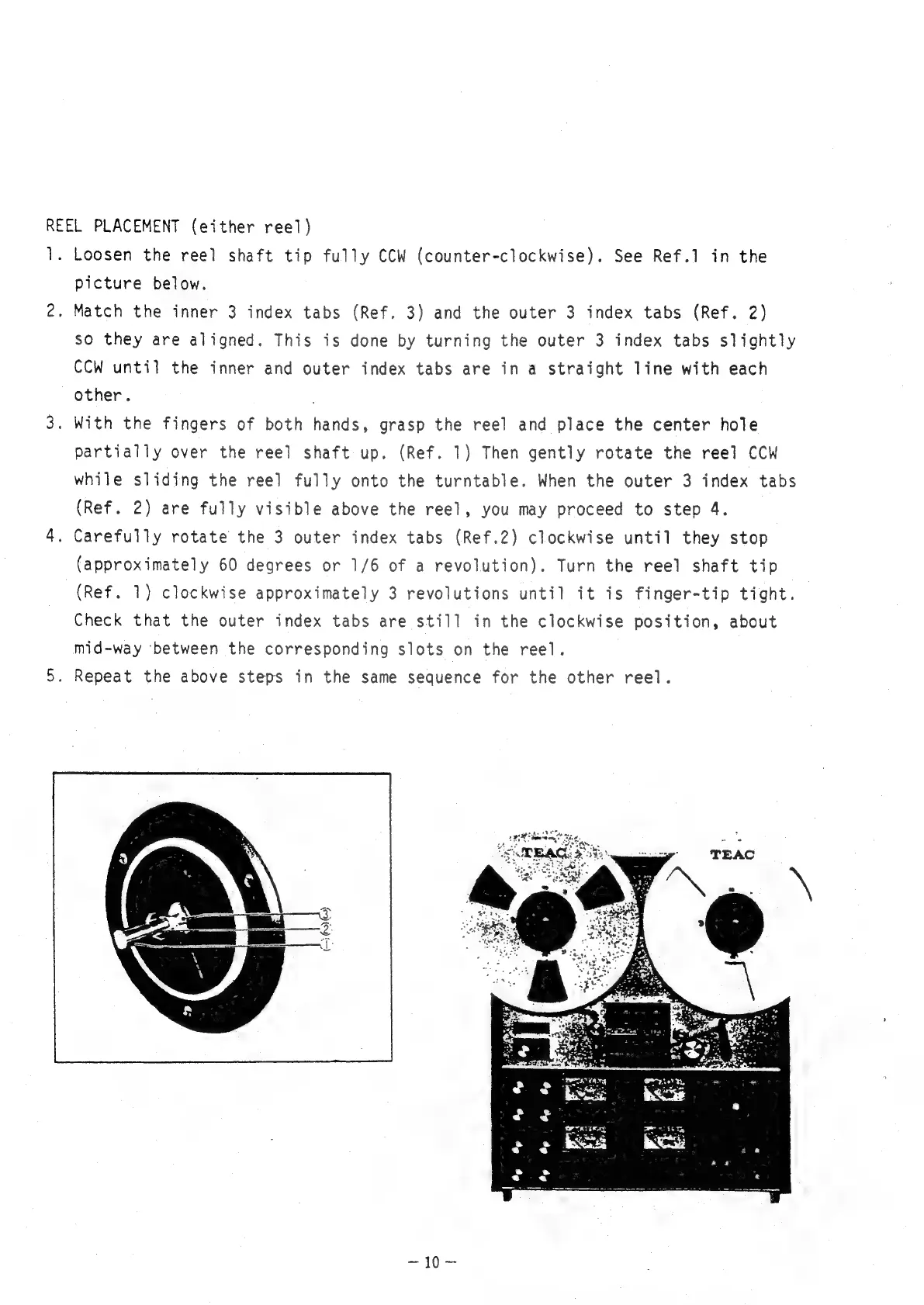

REEL PLACEMENT (either reel)
]. Loosen the reel shaft tip fully CCW (counter-clockwise). See Ref.1 in the
picture below.
2. Match the inner 3 index tabs (Ref. 3) and the outer 3 index tabs (Ref. 2)
so they are aligned. This is done by turning the outer 3 index tabs slightly
CCW until the inner and outer index tabs are in a straight line with each
other.
3. With the fingers of both hands, grasp the reel and place the center hole
partially over the reel shaft up. (Ref. 1) Then gently rotate the reel CCW
while sliding the reel fully onto the turntable. When the outer 3 index tabs
(Ref. 2) are fully visible above the reel, you may proceed to step 4.
4, Carefully rotate the 3 outer index tabs (Ref.2) clockwise until they stop
(approximately 60 degrees or 1/6 of a revolution). Turn the reel shaft tip
(Ref. 1) clockwise approximately 3 revolutions until it is finger-tip tight.
Check that the outer index tabs are still in the clockwise position, about
mid-way ‘between the corresponding slots on the reel.
5. Repeat the above steps in the same sequence for the other reel.
