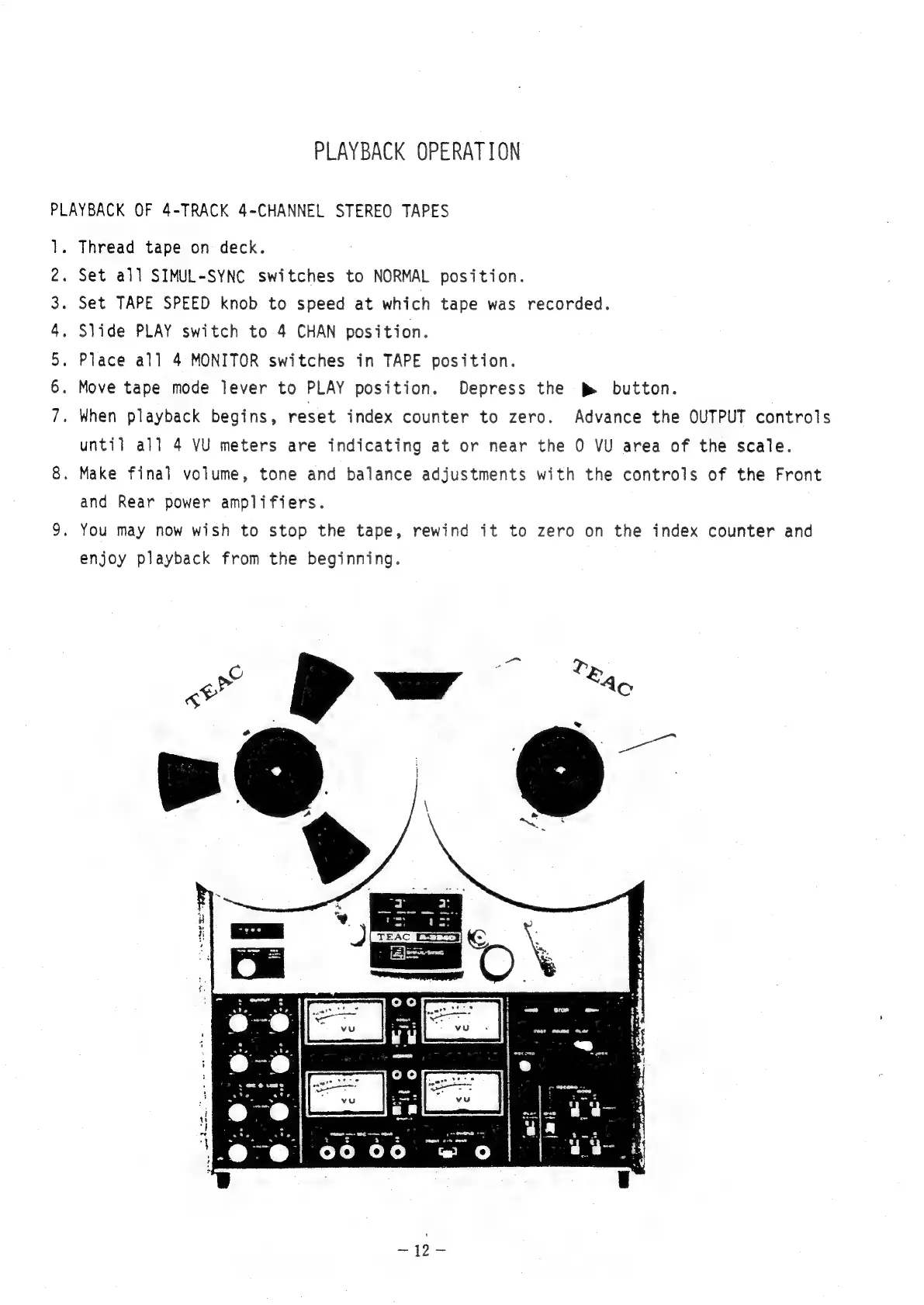

PLAYBACK OPERATION
PLAYBACK OF 4-TRACK 4-CHANNEL STEREO TAPES
SN OM PW PF —-
. Thread tape on deck.
Set all SIMUL-SYNC switches to NORMAL position.
Set TAPE SPEED knob to speed at which tape was recorded.
Slide PLAY switch to 4 CHAN position.
Place all 4 MONITOR switches in TAPE position.
Move tape mode lever to PLAY position. Depress the p> button.
. When playback begins, reset index counter to zero. Advance the OUTPUT controls
until all 4 VU meters are indicating at or near the O VU area of the scale.
. Make final volume, tone and balance adjustments with the controls of the Front
and Rear power amplifiers.
. You may now wish to stop the tape, rewind it to zero on the index counter and
enjoy playback from the beginning.
