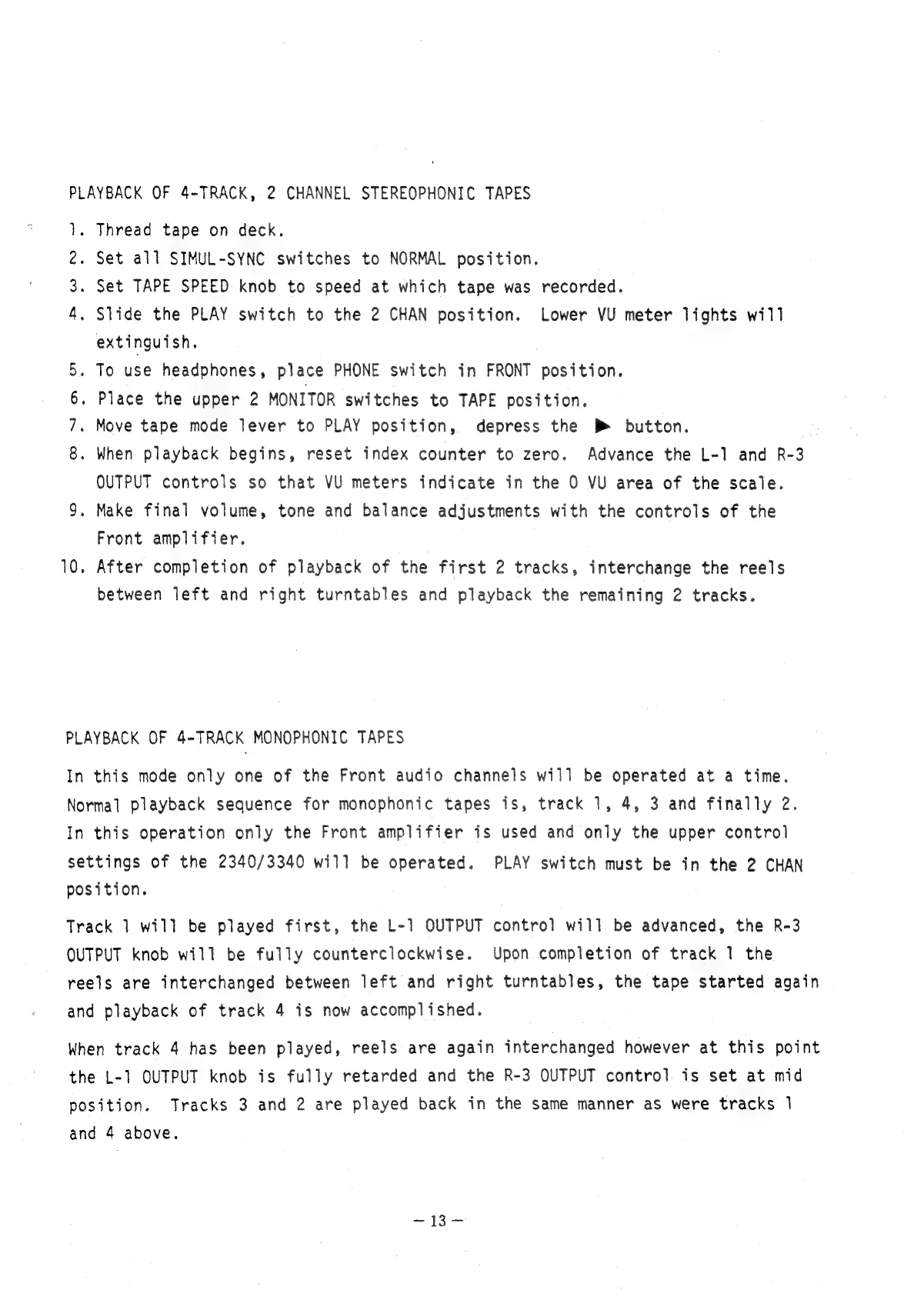

PLAYBACK OF 4-TRACK, 2 CHANNEL STEREOPHONIC TAPES
}. Thread tape on deck.
2. Set all SIMUL-SYNC switches to NORMAL position.
3. Set TAPE SPEED knob to speed at which tape was recorded.
4. Slide the PLAY switch to the 2 CHAN position. Lower VU meter lights will
extinguish.
To use headphones, place PHONE switch in FRONT position.
Place the upper 2 MONITOR switches to TAPE position.
Move tape mode lever to PLAY position, depress the PB button.
When playback begins, reset index counter to zero. Advance the L-1] and R-3
OUTPUT controls so that VU meters indicate in the 0 VU area of the scale.
9. Make final volume, tone and balance adjustments with the controls of the
Front amplifier.
10. After completion of playback of the first 2 tracks, interchange the reels
between left and right turntables and playback the remaining 2 tracks.
Co “ss MH O
PLAYBACK OF 4-TRACK MONOPHONIC TAPES
In this mode only one of the Front audio channels will be operated at a time.
Normal playback sequence for monophonic tapes is, track 1, 4, 3 and finally 2.
In this operation only the Front amplifier is used and only the upper control
settings
of
the
2340/3340
will
be
operated.
PLAY
switch
must
be
in
the
2
CHAN
position.
Track 1 will be played first, the L-1 QUTPUT control will be advanced, the R-3
OUTPUT knob will be fully counterclockwise. Upon completion of track 1 the
reels are interchanged between left and right turntables, the tape started again
and playback of track 4 is now accomplished.
When track 4 has been played, reels are again interchanged however at this point
the L-1 OUTPUT knob is fully retarded and the R-3 OUTPUT control is set at mid
position. Tracks 3 and 2 are played back in the same manner as were tracks 1
and 4 above.
