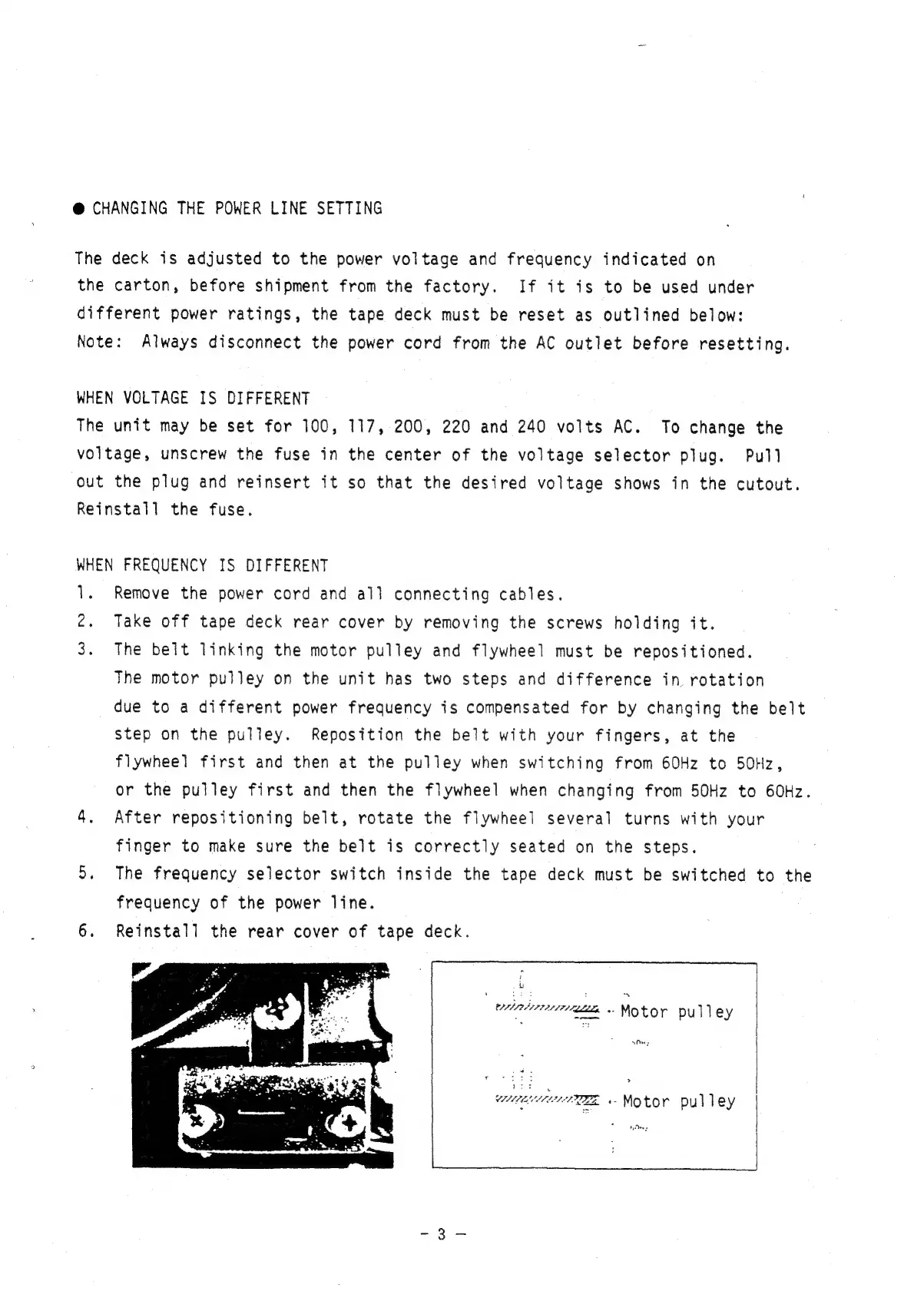

@ CHANGING THE POWER LINE SETTING
The deck is adjusted to the power voltage and frequency indicated on
the carton, before shipment from the factory. If it is to be used under
different power ratings, the tape deck must be reset as outlined below:
Note: Always disconnect the power cord from the AC outlet before resetting.
WHEN VOLTAGE IS DIFFERENT
The unit may be set for 100, 117, 200, 220 and 240 volts AC. To change the
voltage, unscrew the fuse in the center of the voltage selector plug. Pull
out the plug and reinsert it so that the desired voltage shows in the cutout.
Reinstall the fuse.
WHEN FREQUENCY IS DIFFERENT
|. Remove the power cord and all connecting cables.
¢.
Take
off
tape
deck
rear
cover
by
removing
the
screws
holding
it.
3.
The
belt
linking
the
motor
pulley
and
flywheel
must
be
repositioned.
The motor
pulley
on
the
unit
has
two
steps
and
difference
in rotation
due
to
a
different
power frequency
is
compensated
for
by
changing
the
belt
step
on
the
pulley.
Reposition
the
belt
with
your
fingers,
at
the
flywheel
first
and
then at
the pulley
when switching
from
60Hz
to
50Hz,
or
the
pulley
first and then
the
flywheel
when
changing
from
50Hz
to 60Hz.
4. After repositioning belt, rotate the flywheel several turns with your
finger to make sure the belt is correctly seated on the steps.
5. The frequency selector switch inside the tape deck must be switched to the
frequency of the power line.
6. Reinstall the rear cover of tape deck.
e
em a Mo t or pu ] ] e y
Sacre
MORO. «Motor pul ] ey
