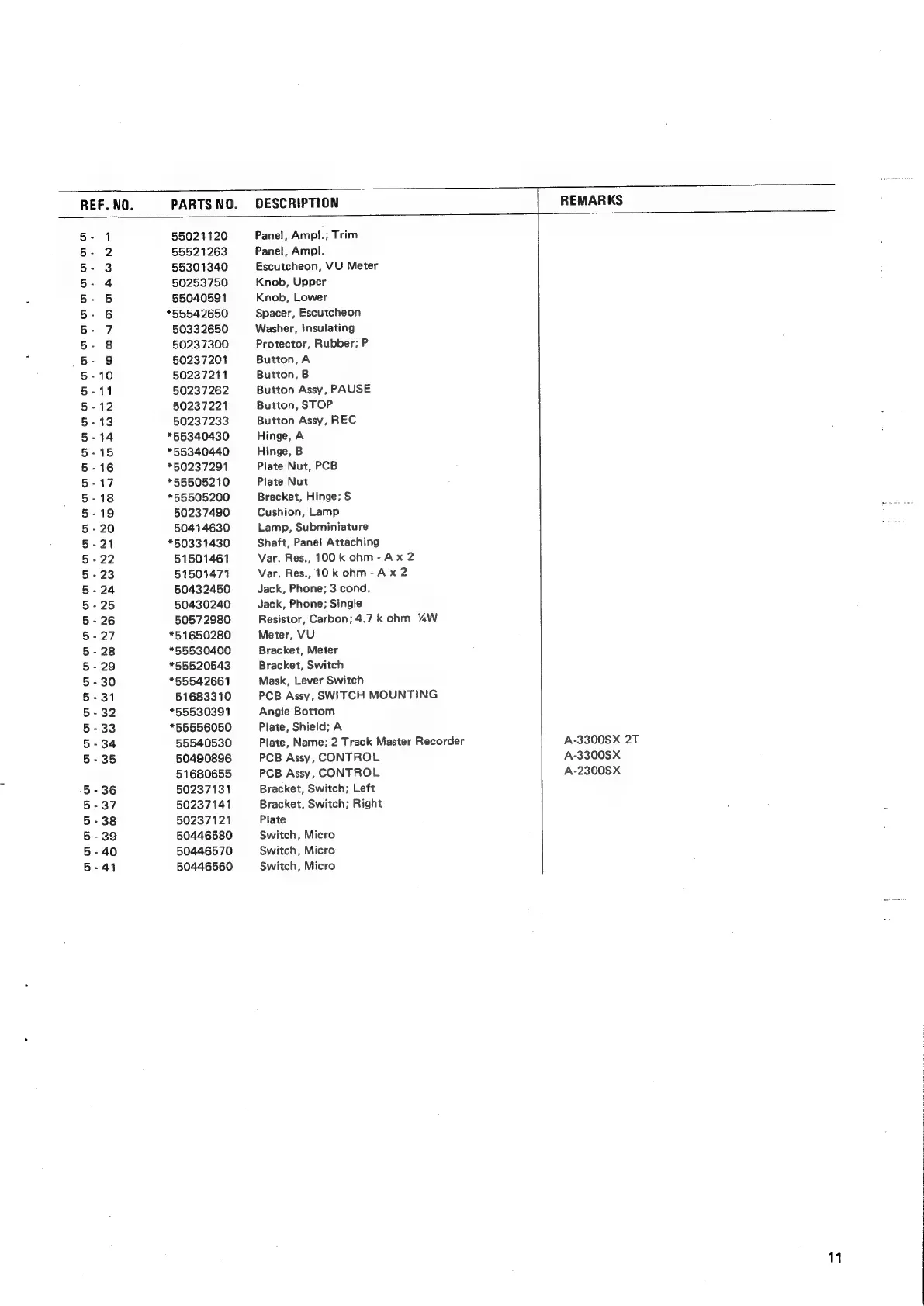

Teac A-3300SX - Page 34

REF.
NO.
PARTS
NO.
DESCRIPTION
REMARKS
5- 1 55021120 Panel, Amp!.; Trim
5- 2 55521263 Panel, Ampl.
5- 3 55301340 Escutcheon, VU Meter
5- 4 50253750 Knob, Upper
5- 5 55040591 Knob, Lower
5- 6 *55542650 Spacer, Escutcheon
5- 7 50332650 Washer, insulating
5- 8 50237300 Protector, Rubber; P
5- 9 50237201 Button, A
5-10 50237211 Button, B
5-11 50237262 Button Assy, PAUSE
5-12 50237221 Button, STOP
5-13 50237233 Button Assy, REC
5-14 *55340430 Hinge, A
5-15 *55340440 Hinge, B
5-16 *50237291 Plate Nut, PCB
5-17 *55505210 Plate Nut
5-18 *55505200 Bracket, Hinge; S
5-19 50237490 Cushion, Lamp
5-20 50414630 Lamp, Subminiature
5-21 *50331430 Shaft, Panel Attaching
5-22 51501461 Var. Res., 100 k ohm-Ax 2
5-23 51501471 Var. Res., 10k ohm-Ax 2
5-24 50432450 Jack, Phone; 3 cond.
5-25 50430240 Jack, Phone; Single
5-26
50572980
Resistor,
Carbon;
4.7
k
ohm
“%W
5-27 *51650280 Meter, VU
5-28 *55530400 Bracket, Meter
5-29 *55520543 Bracket, Switch
5-30 *55542661 Mask, Lever Switch
5-31
51683310
PCB
Assy,
SWITCH
MOUNTING
5-32 *55530391 Angle Bottom
5-33 *55556050 Plate, Shield; A
5-34
55540530
Plate,
Name;
2
Track
Master
Recorder
A-3300SX
2T
5-35
50490896
PCB
Assy,
CONTROL
A-3300SX
51680655
PCB
Assy,
CONTROL
A-2300SX
5-36 50237131 Bracket, Switch; Left
5-37 50237141 Bracket, Switch; Right
5-38 50237121 Plate
5-39 50446580 Switch, Micro
5-40 50446570 Switch, Micro
5-41 50446560 Switch, Micro
