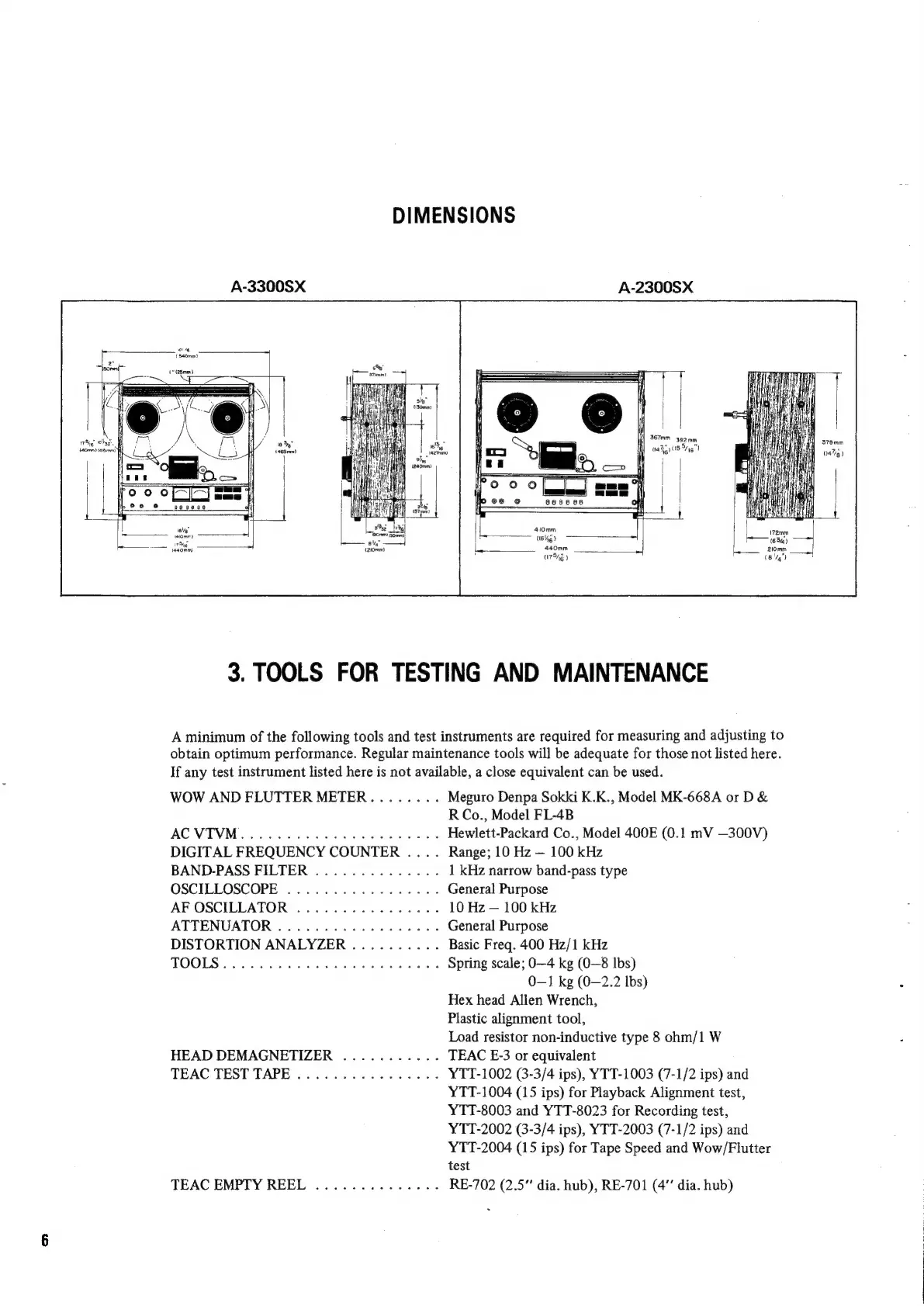

DIMENSIONS
A-3300SX A-2300SX
367mm 362mm
047%) 15 87g")
L 210mm
' (8'4")
3. TOOLS FOR TESTING AND MAINTENANCE
A minimum of the following tools and test instruments are required for measuring and adjusting to
obtain optimum performance. Regular maintenance tools will be adequate for those not listed here.
If any test instrument listed here is not available, a close equivalent can be used.
WOW AND FLUTTER METER........ Meguro Denpa Sokki K.K., Model MK-668A or D &
RCo., Model FL-4B
AC VINM is. cawtaa es Bat eng ahs Hewlett-Packard Co., Model 400E (0.1 mV —300V)
DIGITAL FREQUENCY COUNTER .... Range; 10 Hz — 100 kHz
BAND-PASS FILTER .............. 1 kHz narrow band-pass type
OSCILLOSCOPE ..............2... General Purpose
AF OSCILLATOR ................ 10 Hz — 100 kHz
ATTENUATOR ..............00.. General Purpose
DISTORTION ANALYZER .......... Basic Freq. 400 Hz/1 kHz
TOOLS 52's hie eR eae rte Sadie ete ee Spring scale; O—4 kg (O—8 Ibs)
O—1 kg (O—2.2 Ibs)
Hex head Allen Wrench,
Plastic alignment tool,
Load resistor non-inductive type 8 ohm/1 W
HEAD DEMAGNETIZER ........... TEAC E-3 or equivalent
TEAC TEST TAPE ................ YTT-1002 (3-3/4 ips), YTT-1003 (7-1/2 ips) and
YTT-1004 (15 ips) for Playback Alignment test,
YTT-8003 and YTT-8023 for Recording test,
YTT-2002 (3-3/4 ips), YTT-2003 (7-1/2 ips) and
YTT-2004 (15 ips) for Tape Speed and Wow/Flutter
test
TEAC EMPTY REEL .............. RE-702 (2.5" dia. hub), RE-701 (4’' dia. hub)
