Teac A-3300SX - Electrical Service Data

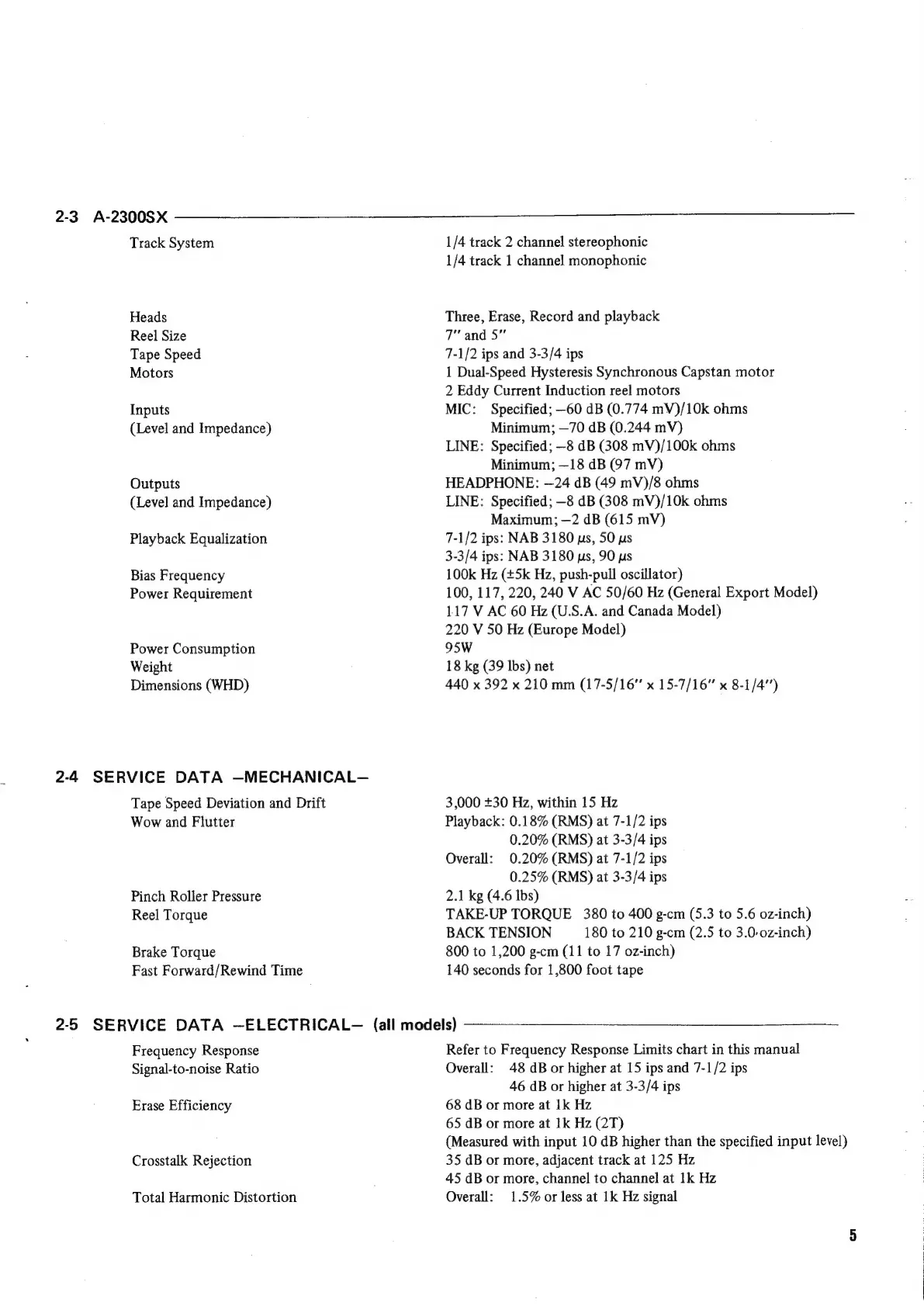

2-3 A-2300SX
Track System
Heads
Reel Size
Tape Speed
Motors
Inputs
(Level and Impedance)
Outputs
(Level and Impedance)
Playback Equalization
Bias Frequency
Power Requirement
Power Consumption
Weight
Dimensions (WHD)
2-4 SERVICE DATA —MECHANICAL—
Tape Speed Deviation and Drift
Wow and Flutter
Pinch Roller Pressure
Reel Torque
Brake Torque
Fast Forward/Rewind Time
1/4 track 2 channel stereophonic
1/4 track 1 channel monophonic
Three, Erase, Record and playback
7” and 5”
7-1/2 ips and 3-3/4 ips
1 Dual-Speed Hysteresis Synchronous Capstan motor
2 Eddy Current Induction reel motors
MIC: Specified; —60 dB (0.774 mV)/10k ohms
Minimum; —70 dB (0.244 mV)
LINE: Specified; —8 dB (308 mV)/100k ohms
Minimum; —18 dB (97 mV)
HEADPHONE: —24 dB (49 mV)/8 ohms
LINE: Specified; —8 dB (308 mV)/10k ohms
Maximum; —2 dB (615 mV)
7-1/2 ips: NAB 3180 ys, 50 ys
3-3/4 ips: NAB 3180 us, 90 us
100k Hz (+5k Hz, push-pull oscillator)
100, 117, 220, 240 V AC 50/60 Hz (General Export Model)
117 V AC 60 Hz (U.S.A. and Canada Model)
220 V 50 Hz (Europe Model)
95W
18 kg (39 Ibs) net
440 x 392 x 210 mm (17-5/16” x 15-7/16” x 8-1/4’)
3,000 +30 Hz, within 15 Hz
Playback: 0.18% (RMS) at 7-1/2 ips
0.20% (RMS) at 3-3/4 ips
Overall: 0.20% (RMS) at 7-1/2 ips
0.25% (RMS) at 3-3/4 ips
2.1 kg (4.6 Ibs)
TAKE-UP TORQUE 380 to 400 g-cm (5.3 to 5.6 oz-inch)
BACK TENSION 180 to 210 g-cm (2.5 to 3.0-0z-inch)
800 to 1,200 g-cm (11 to 17 oz-inch)
140 seconds for 1,800 foot tape
2-5 SERVICE DATA —ELECTRICAL-— (ail models)
Frequency Response
Signal-to-noise Ratio
Erase Efficiency
Crosstalk Rejection
Total Harmonic Distortion
Refer to Frequency Response Limits chart in this manual
Overall: 48 dB or higher at 15 ips and 7-1/2 ips
46 dB or higher at 3-3/4 ips
68 dB or more at 1k Hz
65 dB or more at 1k Hz (2T)
(Measured with input 10 dB higher than the specified input level)
35 dB or more, adjacent track at 125 Hz
45 dB or more, channel to channel at 1k Hz
Overall: 1.5% or less at 1k Hz signal
