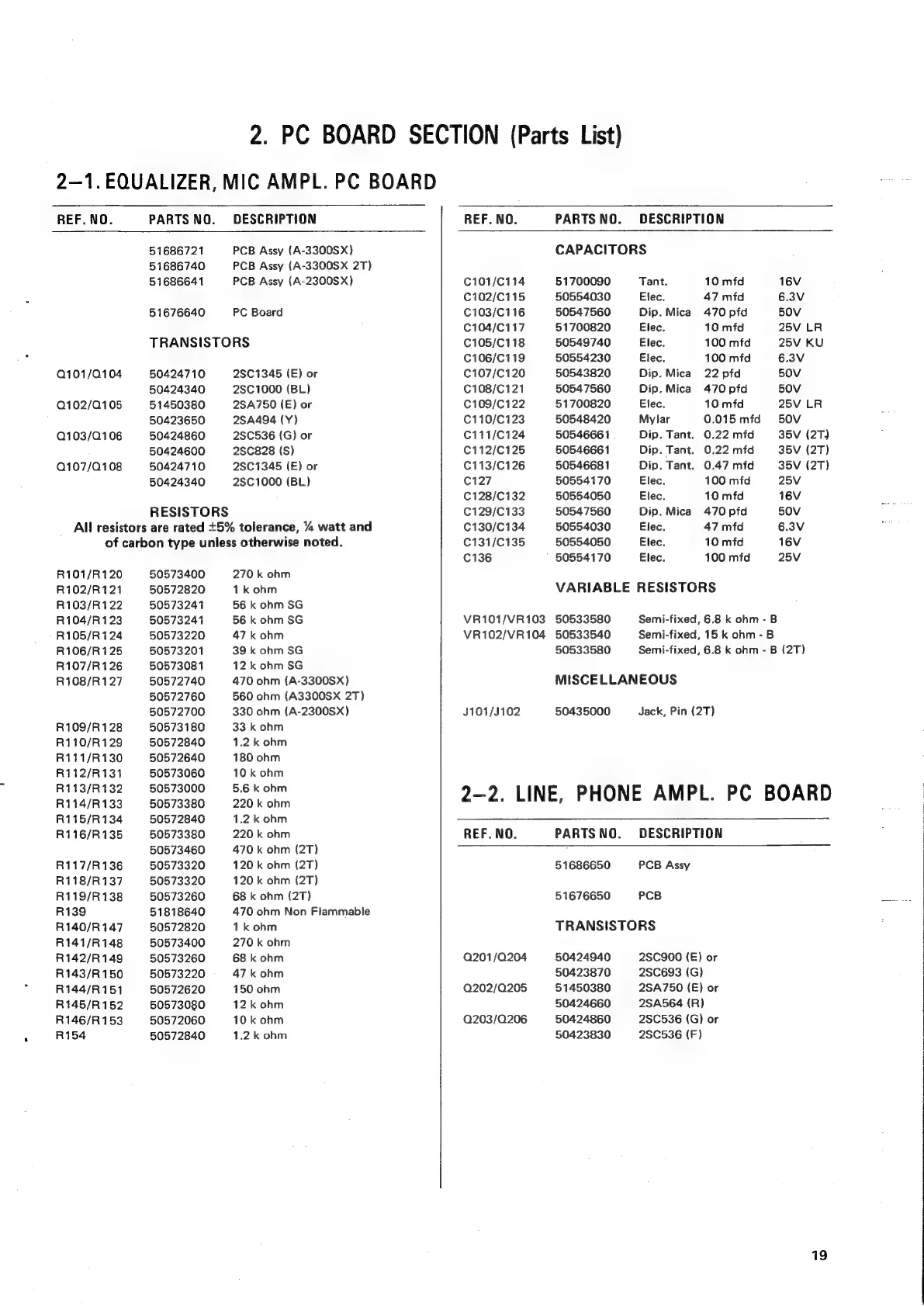

2. PC BOARD SECTION (Parts List)
2—1. EQUALIZER, MIC AMPL. PC BOARD
REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
51686721 PCB Assy (A-3300SX) CAPACITORS
51686740 PCB Assy (A-3300SX 2T)
51686641 PCB Assy (A-2300SX) C101/C114 51700090 Tant. 10 mfd 16V
C€102/C115 50554030 Elec. 47 mfd 6.3V
51676640 PC Board C€103/C116 50547560 Dip. Mica 470 pfd 50V
C104/C117 51700820 Elec. 10 mfd 25V LR
TRANSISTORS C105/C118 50549740 Elec, 100 mfd 25V KU
C106/C119 50554230 Elec. 100 mfd 6.3V
Q101/0104 50424710 2801345 (E) or C107/C120 50543820 Dip. Mica 22 pfd 50V
50424340 2SC1000 (BL) C108/C121 50547560 Dip. Mica 470 pfd 50V
Q102/0105 51450380 2SA750 (E) or C€109/C122 51700820 Elec. 10 mfd 25V LR
50423650 2SA494 (Y} €110/C123 50548420 Mylar 0.015mfd 50V
Q103/Q106 50424860 25C536 (G) or C111/C124 50546661 Dip. Tant. 0.22 mfd 35V (2T)
50424600 2SC828 (S) C112/C125 50546661 Dip. Tant. 0.22 mfd 35V (2T)
Q107/Q108 50424710 2801345 (E) or C113/C126 50546681 Dip. Tant. 0.47 mfd 35V (2T)
50424340 2SC1000 (BL) C127 50554170 Elec. 100 mfd 25V
C128/C132 50554050 Elec. 10 mfd 16V
RESISTORS C129/C133 50547560 Dip. Mica 470 pfd 50V
All resistors are rated +5% tolerance, % watt and C130/C134 50554030 Elec. 47 mfd 6.3V
of carbon type unless otherwise noted. C131/C135 50554050 Elec. 10 mfd 16V
C136 50554170 Elec. 100 mfd 25V
R101/R120 50573400 270 k ohm
R102/R121 50572820 1k ohm VARIABLE RESISTORS
R103/R122 50573241 56 k ohm SG
R104/R123 50573241 56 k ohm SG VR101/VR103 50533580 Semi-fixed, 6.8 k ohm - B
R105/R124 50573220 47 k ohm VR102/VR104 50533540 Semi-fixed, 15 k ohm - B
R106/R125 50573201 39 k ohm SG 50533580 Semi-fixed, 6.8 k ohm - B (2T)
R107/R126 50573081 12 k ohm SG
R108/R127 50572740 470 ohm (A-3300SX) MISCELLANEOUS
50572760 560 ohm (A3300SX 2T)
50572700 330 ohm (A-2300SX) J101/J102 50435000 Jack, Pin (2T)
R109/R128 50573180 33 k ohm
R110/R129 50572840 1.2 k ohm
R111/R130 50572640 180 ohm
R112/R131 50573060 10 k ohm
R113/R132 50573000 5.6 k ohm
R114/R133 50573380 220 k ohm 2-2. LINE, PHONE AMPL. PC BOARD
R115/R134 50572840 1.2 k ohm
R116/R135 50573380 220 k ohm REF. NO. PARTSNO. DESCRIPTION
50573460 470 k ohm (2T)
R117/R136 50573320 120 k ohm (2T) 51686650 PCB Assy
R118/R137 50573320 120 k ohm (2T)
R119/R138 50573260 68 k ohm (2T) 51676650 PCB
R139 51818640 470 ohm Non Flammable
R140/R147 50572820 1k ohm TRANSISTORS
R141/R148 50573400 270 k ohm
R142/R149 50573260 68 k ohm Q201/Q204 50424940 2SC900 (E) or
R143/R150 50573220 47 k ohm 50423870 2SC693 (G)
R144/R151 50572620 150 ohm Q202/Q205 51450380 2SA750 (E) or
R145/R152 50573080 12k ohm 50424660 2SA564 (R)
R146/R153 50572060 10 k ohm Q203/0206 50424860 2SC536 (G) or
R154 50572840 1.2 k ohm 50423830 2S8C536 (F)
19
