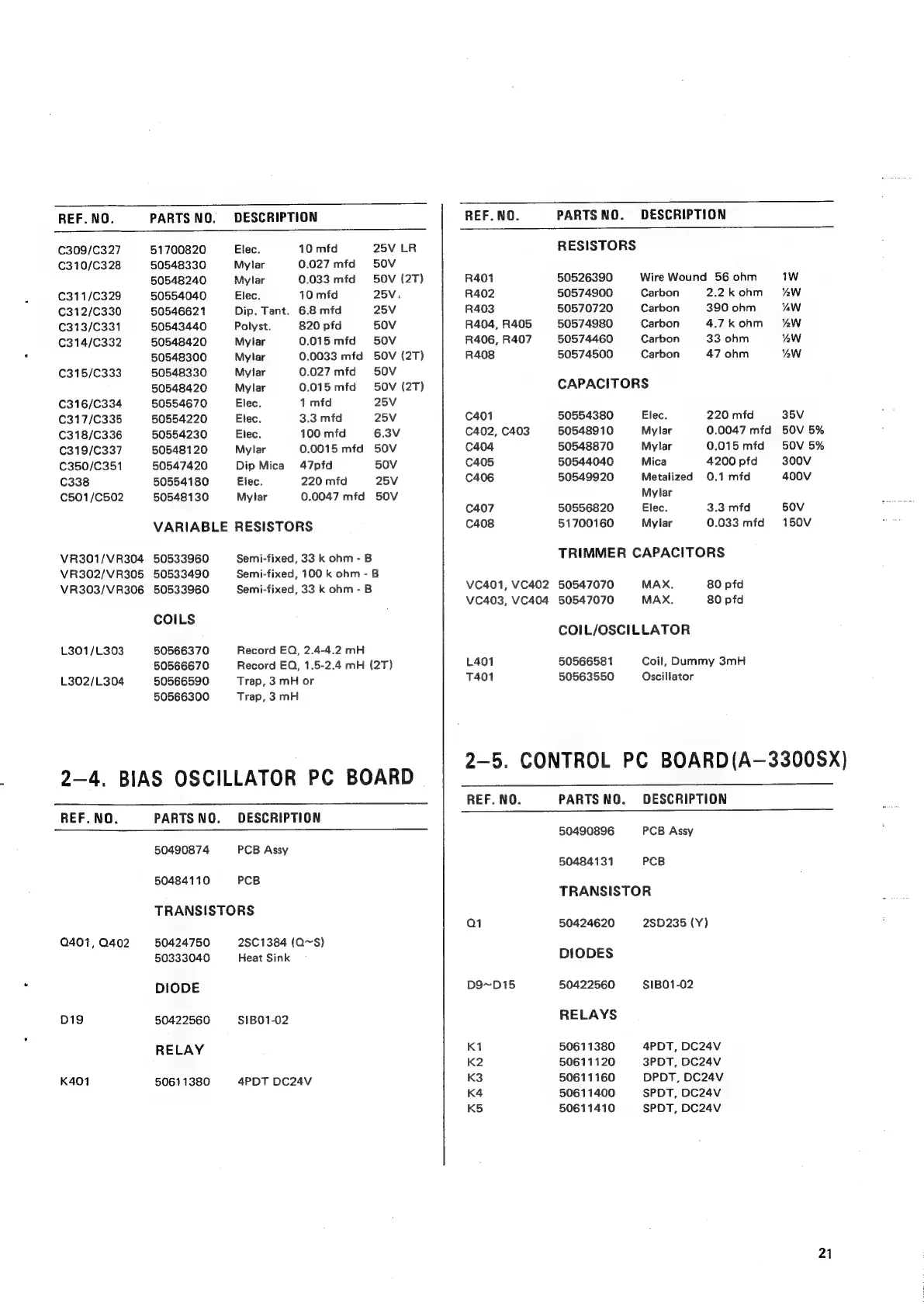

Teac A-3300SX - Page 44

REF.NQ. PARTS NO. DESCRIPTION
C309/C327 51700820 Elec. 10 mfd 25V LR
C310/C328 50548330 Mylar 0.027 mfd 50V
50548240 Mylar 0.033 mfd 50V (2T)
C311/C329 50554040 Elec. 10 mfd 25V.
C312/C330 50546621 Dip, Tant. 6.8 mfd 25V
C313/C331 50543440 Polyst. 820 pfd 50V
C314/C332 50548420 Mylar 0.015 mfd 50V
50548300 Mylar 0.0033 mfd 50V (2T)
C315/C333 50548330 Mylar 0.027 mfd 50V
50548420 Mylar 0.015 mfd 50V (2T)
C316/C334 50554670 Elec. 1 mfd 25V
C317/C335 50554220 Elec. 3.3 mfd 25V
C318/C336 50554230 Elec. 100 mfd 6.3V
C319/C337 50548120 Mylar 0.0015 mfd 50V
C350/C351 50547420 Dip Mica 47pfd 50V
C338 50554180 Elec. 220 mfd 25V
c501/C502 50548130 Mylar 0.0047 mfd 50V
VARIABLE RESISTORS
VR301/VR304 50533960 Semi-fixed, 33 k ohm - B
VR302/VR305 50533490 Semi-fixed, 100 k ohm - B
VR303/VR306 50533960 Semi-fixed, 33 k ohm - B
COILS
L301/L303 50566370 Record EQ, 2.4-4.2 mH
50566670 Record EQ, 1.5-2.4 mH (2T)
L302/L304 50566590 Trap, 3 mH or
50566300 Trap, 3 mH
2—4. BIAS OSCILLATOR PC BOARD
REF. NO. PARTS NO. DESCRIPTION
50490874 PCB Assy
50484110 PCB
TRANSISTORS
0401, Q402 50424750 28C1384 (Q~S)
50333040 Heat Sink
DIODE
D19 50422560 SIBO1-02
RELAY
K401 50611380 4PDT DC24V
REF.NO. PARTS NO. DESCRIPTION
RESISTORS
R401 50526390 Wire Wound 56 ohm IW
R402 50574900 Carbon 2.2kohm “WwW
R403 50570720 Carbon 390 ohm %W
R404, R405 50574980 Carbon 4.7kohm %W
R406, R407 50574460 Carbon 33 ohm ~”W
R408 50574500 Carbon 47 ohm YW
CAPACITORS
C401 50554380 Elec. 220 mfd 35V
C402, C403 50548910 Mylar 0.0047 mfd 50V 5%
C404 50548870 Mylar 0.015 mfd 50V 5%
C405 50544040 Mica 4200 pfd 300V
C406 50549920 Metalized 0.1 mfd 400V
Mylar
C407 50556820 Elec. 3.3 mfd 50V
C408 51700160 Mylar 0.033 mfd 150V
VvC401, VC402
VC403, VC404
L401
7401
TRIMMER CAPACITORS
50547070
50547070
MAX.
MAX.
80 pfd
80 pfd
COIL/OSCILLATOR
50566581
50563550
Coil, Dummy 3mH
Oscillator
2—5. CONTROL PC BOARD(A-—3300SX)
REF. NO. PARTS NO. DESCRIPTION
50490896 PCB Assy
50484131 PCB
TRANSISTOR
Q1 50424620 2SD235 (Y)
DIODES
D9~D15 50422560 $IBO1-02
RELAYS
K1 50611380 4PDT, DC24V
K2 50611120 3PDT, DC24V
K3 50611160 DPDT, DC24V
K4 50611400 SPDT, DC24V
K5 50611410 SPDT, DC24V
21
