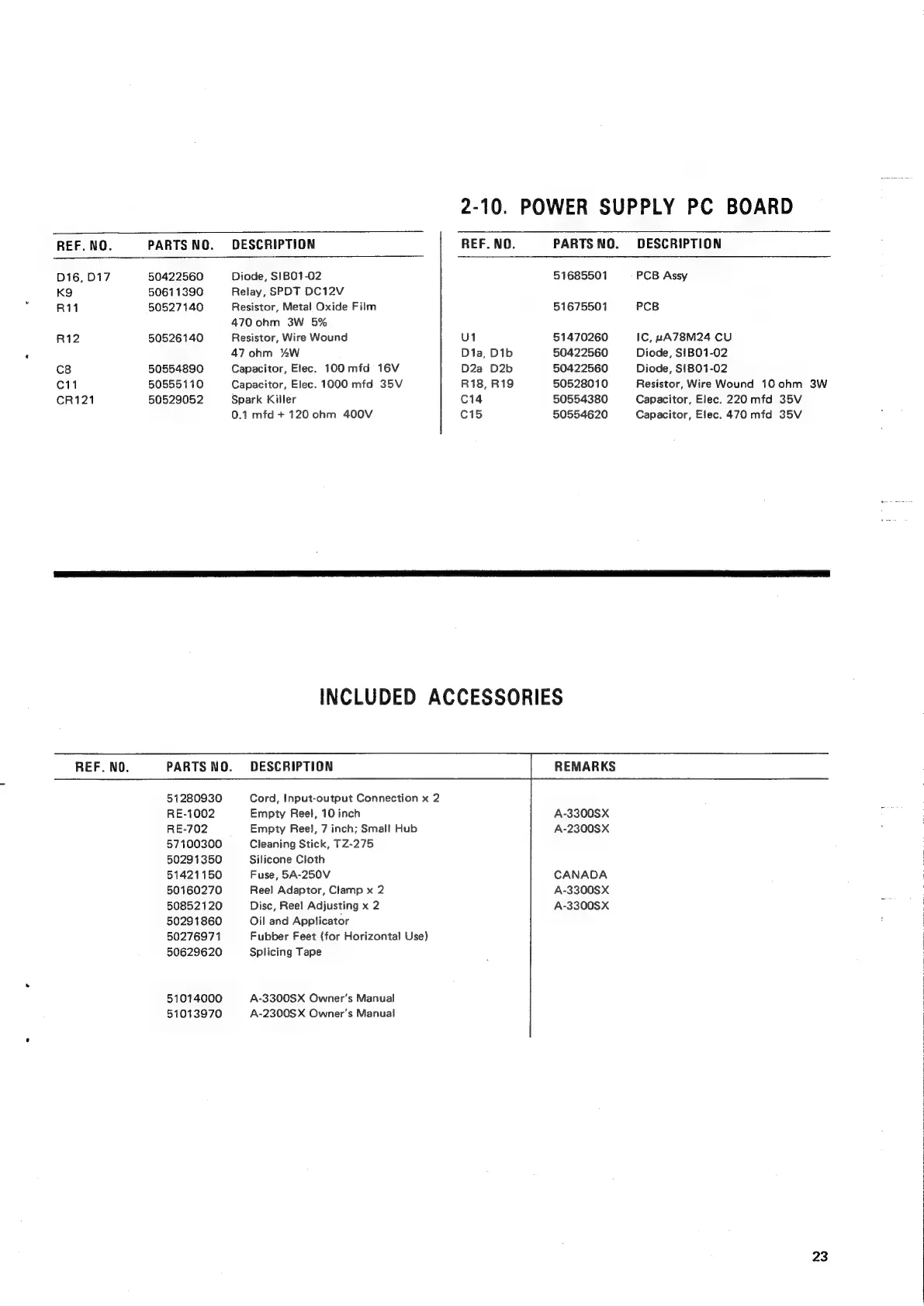

2-10. POWER SUPPLY PC BOARD
REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
D16, D17 50422560 Diode, S!B01-02 51685501 PCB Assy
Kg 50611390 Relay, SPDT DC12V
R11 50527140 Resistor, Metal Oxide Film 51675501 PCB
470 ohm 3W 5%
R12 50526140 Resistor, Wire Wound U1 51470260 IC, tA78M24 CU
47 ohm %W Dia, D1b 50422560 Diode, SIBO1-02
c8 50554890 Capacitor, Elec. 100 mfd 16V D2a D2b 50422560 Diode, SIBO1-02
Cci1 50555110 Capacitor, Elec. 1000 mfd 35V R18, R19 50528010 Resistor, Wire Wound 10 ohm 3W
CR121 50529052 Spark Killer C14 50554380 Capacitor, Elec. 220 mfd 35V
0.1 mfd +120 0hm 400V C15 50554620 Capacitor, Elec. 470 mfd 35V
REF. NO.
INCLUDED ACCESSORIES
PARTS NO. DESCRIPTION REMARKS
51280930
RE-1002
RE-702
57100300
50291350
51421150
50160270
50852120
50291860
50276971
50629620
51014000
51013970
Cord, Input-output Connection x 2
Empty Ree!, 10 inch A-3300SX
Empty Reel, 7 inch; Small Hub A-2300SX
Cleaning Stick, TZ-275
Silicone Cloth
Fuse, 5A-250V CANADA
Reel Adaptor, Clamp x 2 A-3300SX
Disc, Reel Adjusting x 2 A-3300SX
Oil and Applicator
Fubber Feet (for Horizonta! Use)
Splicing Tape
A-3300SX Owner's Manual
A-2300S X Owner’s Manual
23
