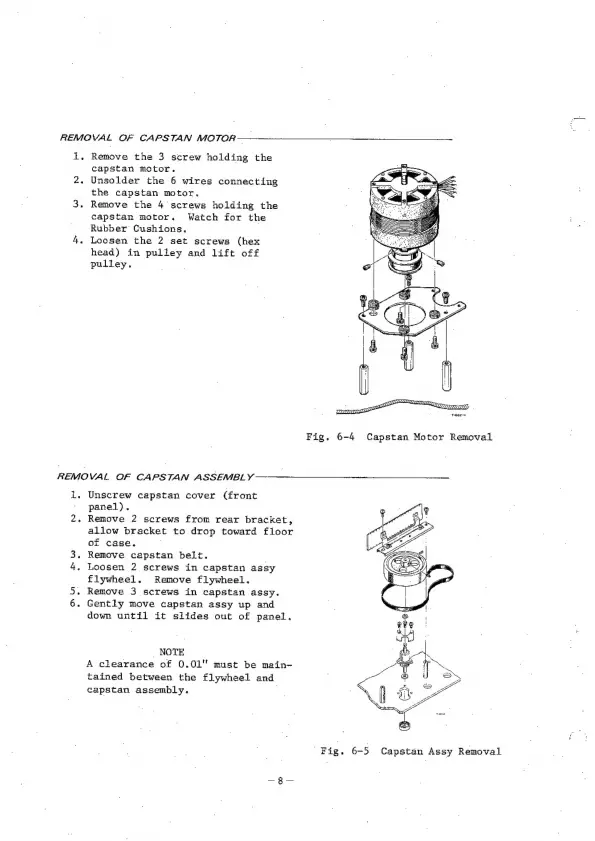

REMOVAL OF CAPSTAN MOTOR—
1, Remove the 3 screw holding the
capstan motor.
2. Unsolder the 6 wires connecting
the capstan motor.
3. Remove the 4 screws holding the
capstan motor. Watch for the
Rubber Cushions.
4. Loosen the 2 set screws (hex
head) in pulley and lift off
pulley.
Fig. 6-4 Capstan Motor Removal
REMOVAL OF CAPSTAN ASSEMBLY
lL. Unserew capstan cover (front
' panel).
2. Remove 2 screws from rear bracket,
allow bracket to drop toward floor
of case,
3. Remove capstan belt.
4, Loosen 2 screws in capstan assy
flywheel, Remove flywheel.
3. Remove 3 screws in capstan assy.
6. Gently move capstan assy up and
down until it slides out of panel.
NOTE
A clearance of 0.01" must be main-
tained between the flywheel and
capstan assembly.
Fig. 6-5 Capstan Assy Removal
