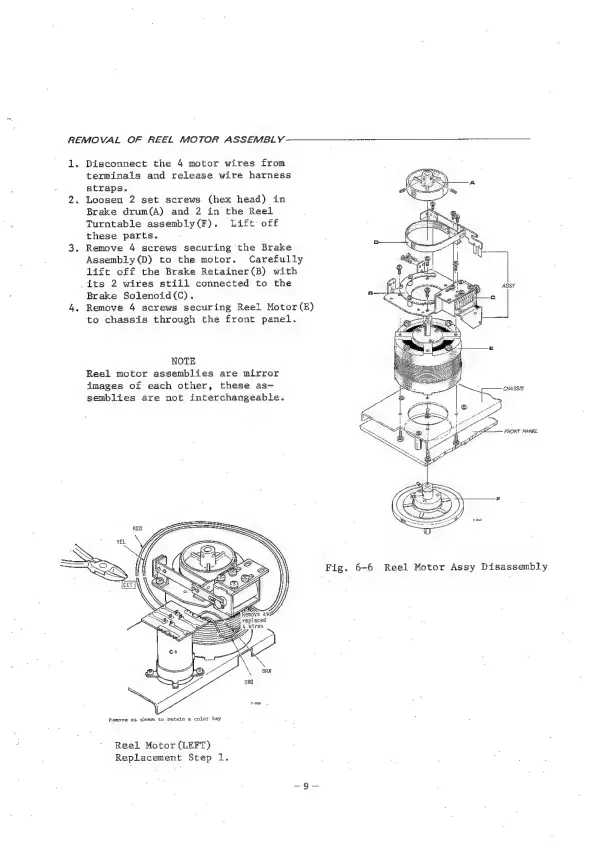

REMOVAL OF REEL MOTOR ASSEMBLY -—_————~~
1. Disconnect the 4 motor wires from
terminals and release wire harness
straps.
2, Loosen 2 set screws (hex head} in
Brake drum(A) and 2 in the Reel
Turntable assembly(F). Lift off
these parts.
3. Remove 4 screws securing the Brake
Assembly(D) to the motor. Carefully
lift off the Brake Retainer(8) with
its 2 wires still connected to the
Brake Solenoid(C),
4, Remove 4 screws securing Reel Motor (E)
to chassis through the front panel.
ASSY
NOTE
Reel motor assemblies are mirror
images of each other, these as—
semblies are not interchangeable.
CHASSIS
FRONT PANEL
Fig. 6-6 Reel Motor Assy Disassembly
‘i Tree.
Remove as snown to retain a colar key
Reel Motor (LEFT)
Replacement Step 1.
