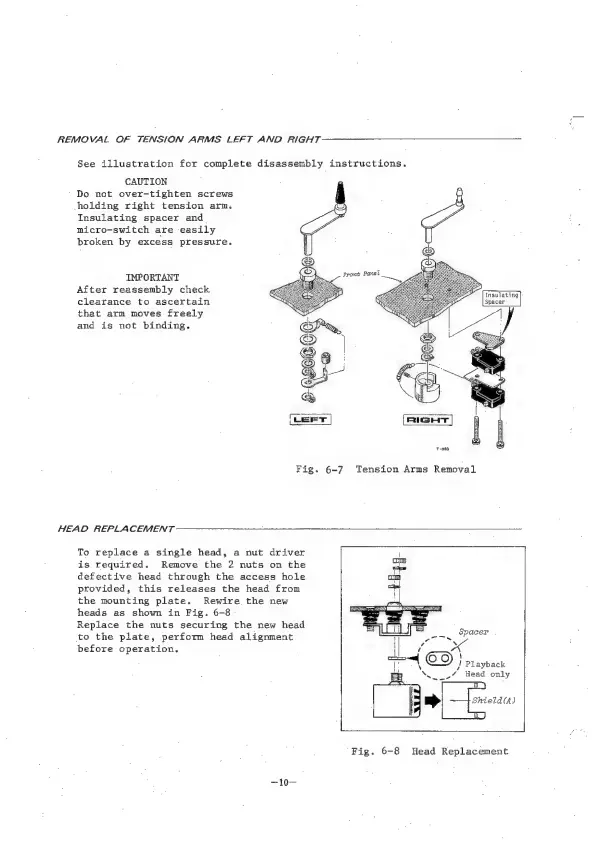

REMOVAL OF TENSION ARMS LEFT AND RIGHT
See illustration for complete disassembly instructions.
CAUTION
' Do not over-tighten screws
holding right tension arm.
Insulating spacer and
micro-switch are easily
broken by excess pressure.
IMPORTANT
After reassembly check
clearance to ascertain
that arm moves freely
and is not binding.
Fig. 6-7 Tension Arms Removal
HEAD REPLACEMENT
To replace a single head, a nut driver
is required. Remove the 2 nuts on the
defective head through the access hole
provided, this releases the head from
the mounting plate. Rewire the new
heads as shown in Fig. 6-8-
Replace the nuts securing the new head
to the plate, perform head alignment
before operation.
oe .
oo Gy / Playback
_¢ Head only
‘Fig. 6-8 Head Replacement
