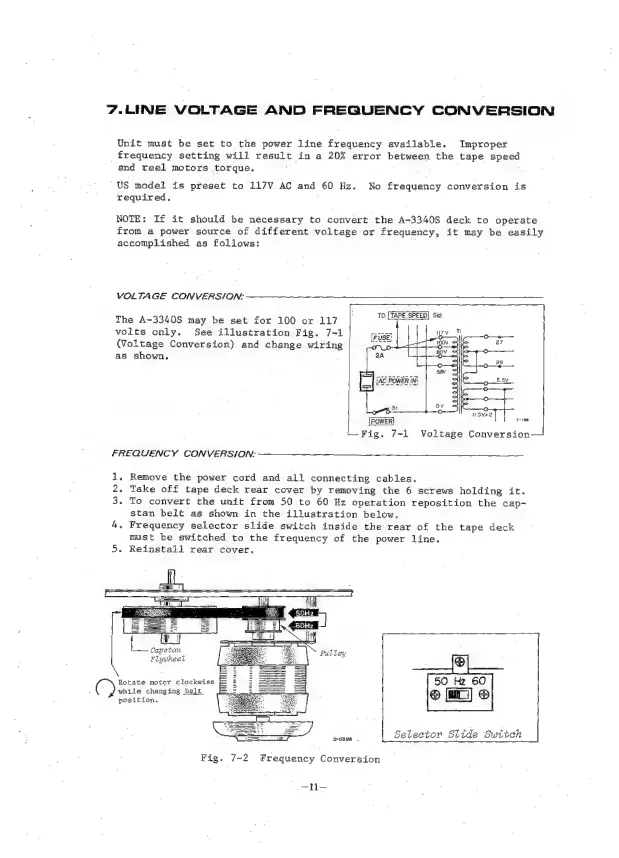

7.LINE VOLTAGE AND FREQUENCY CONVERSION
Unit must be set to the power line frequency available, Improper
_ frequency setting will result in a 20% error between the tape Spend
and reel motors torque,
Us model is preset to L17V. AC and 60 Hz. No frequency conversion is
required.
NOTE: If it should be necessary to convert the A-3340S deck to operate
from a power source of different voltage or frequency, it may be easily
accomplished as follows:
VOLTAGE CONVERSION:
To [TAPE SPEED] Siz
The A~33405 may be set for 100 or 117
volts only. See illustration Fig. 7-1
(Voltage Conversion) and change wiring
as shown.
?5Ve2
Tree
Fig, 7-1 Voltage Conversion
FREQUENCY CONVERSION:
1. Remove the power cord and all connecting cables.
2. Take off tape deck rear cover by removing the 6 screws holding it.
3. To convert the unit from 50 to 60 Hz operation reposition the cap-
stan belt as shown in the illustration below.
4, Frequency selector slide switch inside the rear of the tape deck
must be switched to the frequency of the power line.
5. Reinstall rear cover,
a Capetar
Fiywheel
Rotate motor clockwise
while changing belt
position,
Posse .
Selector Slide Switch
Fig. 7-2 Frequency Conversion
