REF.NO. PARTSNO. DESCRIPTION
51687390 PCB Assy, MOTHER
51677390 PCB, MOTHER
CONNECTOR
P101, P102 51223580 Plug, 6P
P103, P104 51223600 Plug, 8P
P105 51223620 Plug, 10P
P106~P109 51221320 Plug, 8P
P120 51221270 Plug, 3P
P121 51221320 Plug, 8P
P122 51221280 Plug, 4P
P123, P124 51221320 Plug, 8P
P125 51221260 Plug, 2P
P126 51221830 Plug, 8P
P127 51221890 Plug, 8P
P128, P129 51221280 Plug, 4P
P130, P131 51221850 Plug, 4P
P132 51221320 Plug, 8P
2-2. REC/PLAY AMP PCB ASSY
REF. NO. PARTSNO. DESCRIPTION
51687311 PCB Assy, REC/PLAY AMP
51677710 PCB, REC/PLAY AMP
IC's
U101,U102 51470240 NJM4558DF
TRANSISTORS
Qi101 50424610 2SC1327T
Q102 50424210 2SA666IS
Q103 50423830 2SC536F
Q104,Q105 51450920 2SC1740LNS
aQ109 51450860 2SC1636-2
Q110 51450950 2SA826LNS
aQi11 51450920 2SC1740LNS
Q112 51450950 2SA826LNS
Q116 50424950 2SC1222E
Q117 50424210 2SA666IS
Q118 51450920 2SC1740LNS
Q121~Q123 51450920 2SC1740LNS
DIODES
D101,0102 51431180 1S2473HJ
D106,0107 50422130 1N60
RESISTORS
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
R101
R102

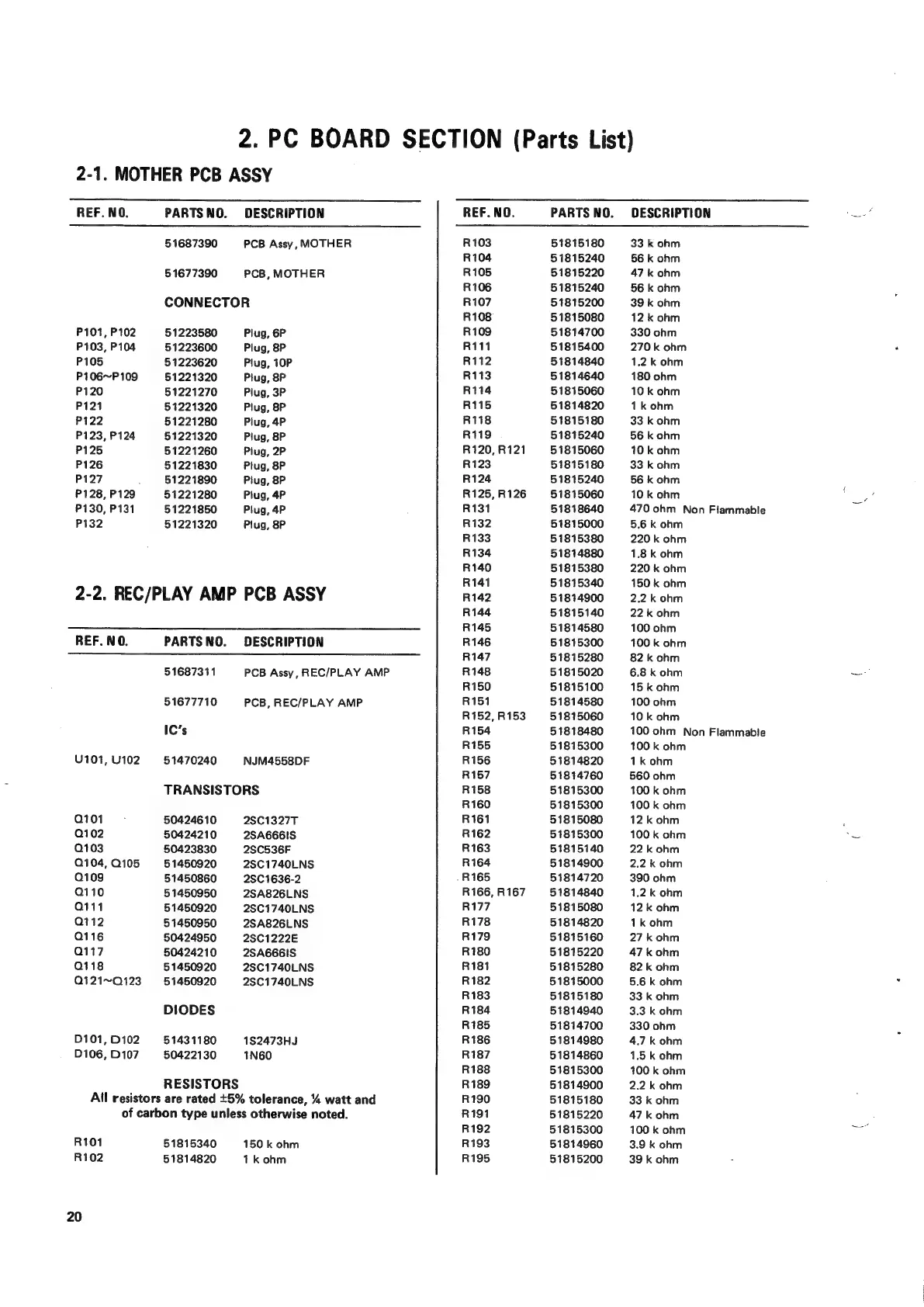

2. PC BOARD SECTION (Parts List)
2-1. MOTHER PCB ASSY
51815340
51814820
150 k ohm
1k ohm
REF. NO. PARTS NO. OESCRIPTION
R103 51815180 33 k ohm
R104 51815240 56 k ohm
R105 51815220 47 k ohm
R106 51815240 56 k ohm
R107 51815200 39 k ohm
R108 51815080 12 k ohm
R109 51814700 330 ohm
R111 51815400 270 k ohm
R112 51814840 1.2 k ohm
R113 51814640 180 ohm
R114 51815060 10 k ohm
R115 51814820 1k ohm
R118 51815180 33 k ohm
R119 51815240 56 k ohm
R120, R121 51815060 10 k ohm
R123 51815180 33 k ohm
R124 51815240 56 k ohm
R125, R126 51815060 10 k ohm
R131 51818640 470 ohm Non Flammable
R132 51815000 5.6 k ohm
R133 51815380 220 k ohm
R134 51814880 1.8k ohm
R140 51815380 220 k ohm
R141 51815340 150 k ohm
R142 51814900 2.2 k ohm
R144 51815140 22 k ohm
R145 51814580 100 ohm
R146 51815300 100 k ohm
R147 51815280 82 k ohm
R148 51815020 6.8 k ohm
R150 51815100 15 k ohm
R151 51814580 100 ohm
R152, R153 51815060 10 k ohm
R154 51818480 100 ohm Non Flammable
R155 51815300 100 k ohm
R156 51814820 1k ohm
R157 51814760 560 ohm
R158 51815300 100 k ohm
R160 51815300 100 k ohm
R161 51815080 12 k ohm
R162 51815300 100 k ohm
R163 51815140 22 k ohm
R164 51814900 2.2 k ohm
R165 51814720 390 ohm
R166, R167 51814840 1.2 k ohm
R177 51815080 12 k ohm
R178 51814820 1k ohm
R179 51815160 27 k ohm
R180 51815220 47 k ohm
R181 51815280 82 k ohm
R182 51815000 5.6 k ohm
R183 51815180 33 k ohm
R184 51814940 3.3 k ohm
R185 51814700 330 ohm
R186 51814980 4.7 k ohm
R187 51814860 1.5 k ohm
R188 51815300 100 k ohm
R189 51814900 2.2 k ohm
R190 51815180 33 k ohm
R191 51815220 47 k ohm
R192 51815300 100 k ohm
R193 51814960 3.9 k ohm
R195 51815200 39 k ohm
