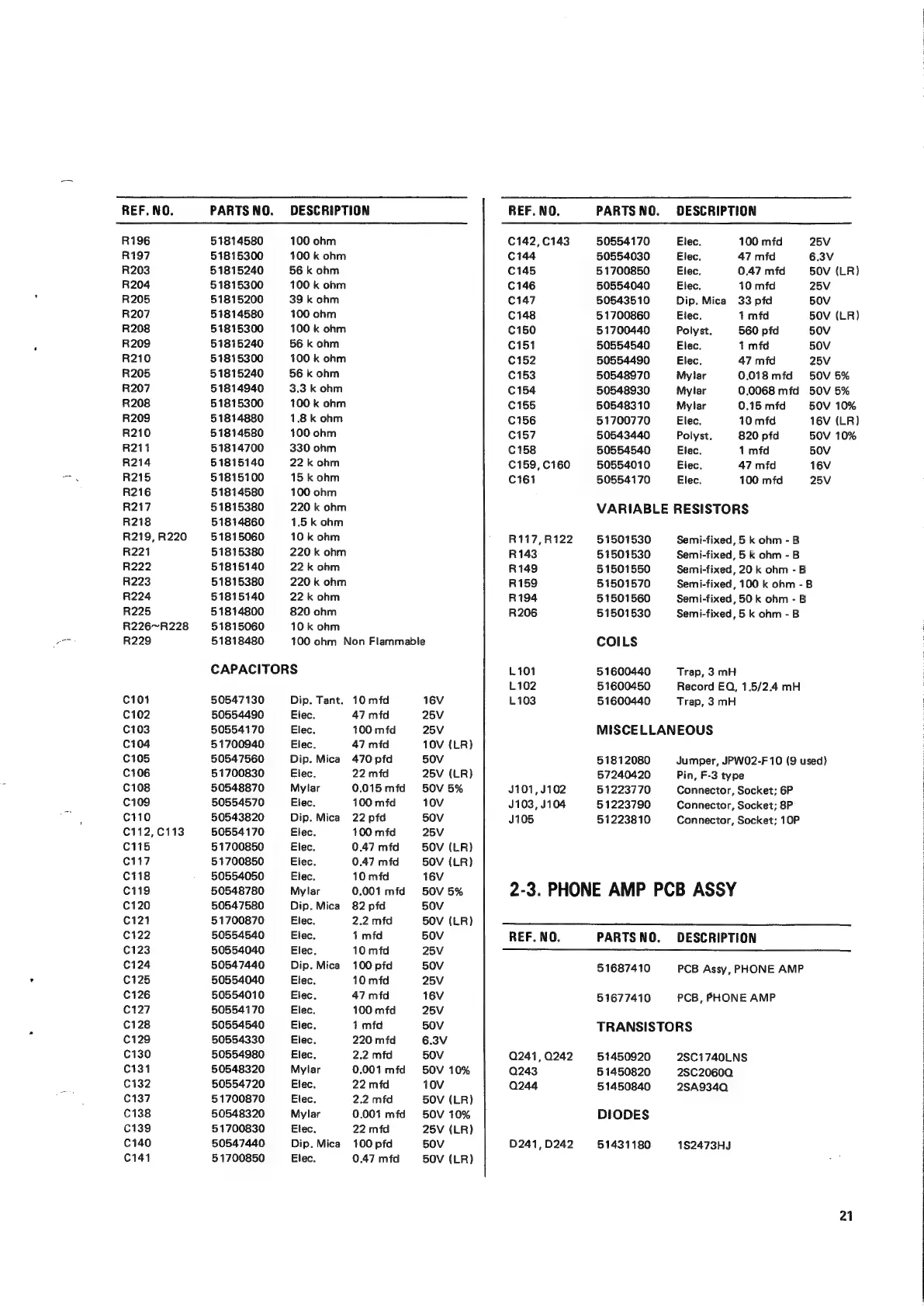

Teac A-3440 - Page 49

REF. NO.
R196
R197
R203
R204
R205
R207
R208
R209
R210
R205
R207
R208
R209
R210
R211
R214
R215
R216
R217
R218
R219, R220
R221
R222
R223
R224
R225
R226~R228
R229
C101
C102
C103
C104
C105
C106
C108
c109
C110
C112, C113
C115
C117
C118
C119
C120
C121
C122
C123
C124
C125
C126
C127
c128
c129
C130
C131
C132
C137
C138
C139
C140
C141
PARTSNO. DESCRIPTION
51814580 100 ohm
51815300 100 k ohm
51815240 56 k ohm
51815300 100 k ohm
51815200 39 k ohm
51814580 100 ohm
51815300 100 k ohm
51815240 56 k ohm
51815300 100 k ohm
51815240 56 k ohm
51814940 3.3 k ohm
51815300 100 k ohm
51814880 1.8 k ohm
51814580 100 ohm
51814700 330 ohm
51815140 22 k ohm
51815100 15 k ohm
51814580 100 ohm
51815380 220 k ohm
51814860 1.5 k ohm
51815060 10 k ohm
51815380 220 k ohm
51815140 22 k ohm
51815380 220 k ohm
51815140 22 k ohm
51814800 820 ohm
51815060 10 k ohm
51818480 100 ohm Non Flammable
CAPACITORS
50547130 Dip. Tant. 10 mfd 16V
50554490 Elec. 47 mfd 25V
50554170 Elec. 100 mfd 25V
51700940 Elec. 47 mtd 10V (LR)
50547560 Dip. Mica 470 pfd 50V
51700830 Elec. 22 mfd 25V (LR)
50548870 Mylar 0.015mfd 50V 5%
50554570 Elec. 100 mfd 10V
50543820 Dip. Mica 22 pfd 50V
50554170 Elec. 100 mfd 25V
51700850 Elec. 0.47 mfd 50V (LR)
51700850 Elec. 0.47 mfd 50V (LR)
50554050 Elec. 10 mfd 16V
50548780 Mylar 0.001 mfd 50V 5%
50547580 Dip. Mica 82 pfd 50V
51700870 Elec. 2.2 mfd 50V (LR)
50554540 Elec. 1 mfd 50V
50554040 Elec. 10 mfd 25V
50547440 Dip. Mica 100 pfd 50V
50554040 Elec. 10 mfd 25V
50554010 Elec, 47 mtd 16V
50554170 Elec. 100 mfd 25V
50554540 Elec. 1 mfd 50V
50554330 Elec, 220 mfd 6.3V
50554980 Elec, 2.2 mfd 50V
50548320 Mylar 0.001 mfd 50V 10%
50554720 Elec. 22 mfd 10V
51700870 Elec. 2.2 mfd 50V (LR)
50548320 Mylar 0.001 mfd 50V 10%
51700830 Elec, 22 mfd 25V (LR)
50547440 Dip. Mica 100 pfd 50V
51700850 Elec. 0.47 mfd 50V (LR)
REF. NO. PARTS NO. DESCRIPTION
C142, C0143 50554170 Elec. 100 mfd 25V
C144 50554030 Elec. 47 mfd 6.3V
C145 51700850 Elec. 0.47 mfd 50V (LR)
C146 50554040 Elec. 10 mfd 25V
C147 50543510 Dip. Mica 33 pfd 50V
C148 51700860 Elec. 1 mfd 50V (LR)
C150 51700440 Polyst. 560 pfd 50V
C151 50554540 Elec. 1 mfd 50V
C1652 50554490 Elec. 47 mfd 25V
C153 50548970 Mylar 0.018mfd 50V 5%
C154 50548930 Mylar 0.0068 mfd 50V 5%
C155 50548310 Mylar 0.15 mfd 50V 10%
C156 51700770 Elec. 10 mfd 16V (LR)
C157 50543440 Polyst. 820 pfd 5OV 10%
C158 50554540 Elec. 1 mfd 50V
C159, C160 50554010 Elec. 47 mtd 16V
C161 50554170 Elec. 100 mfd 25V
VARIABLE RESISTORS
R117,R122 51501530 Semi-fixed, 5 k ohm - B
R143 51501530 Semi-fixed, 5 k ohm - B
R149 51501550 Semi-fixed, 20 k ohm - B
R159 51501570 Semi-fixed, 100 k ohm - B
R194 51501560 Semi-fixed, 50 k ohm - B
R206 51501530 Semi-fixed, 5 k ohm - B
COILS
L101 51600440 Trap, 3 mH
L102 51600450 Record EQ, 1.5/2.4 mH
L103 51600440 Trap, 3 mH
MISCELLANEOUS
51812080 Jumper, JPW02-F 10 (9 used)
57240420 Pin, F-3 type
J101,J102 51223770 Connector, Socket; 6P
J103, J104 51223790 Connector, Socket; 8P
J105 51223810 Connector, Socket; 10P
2-3. PHONE AMP PCB ASSY
REF. NO. PARTSNO. DESCRIPTION
51687410 PCB Assy, PHONE AMP
51677410 PCB, PHONE AMP
TRANSISTORS
Q241, 0242 51450920 2SC1740LNS
Q243 51450820 2SC20600
Q244 51450840 2SA934Q
DIODES
D241,D242 51431180 182473HJ
|
|
