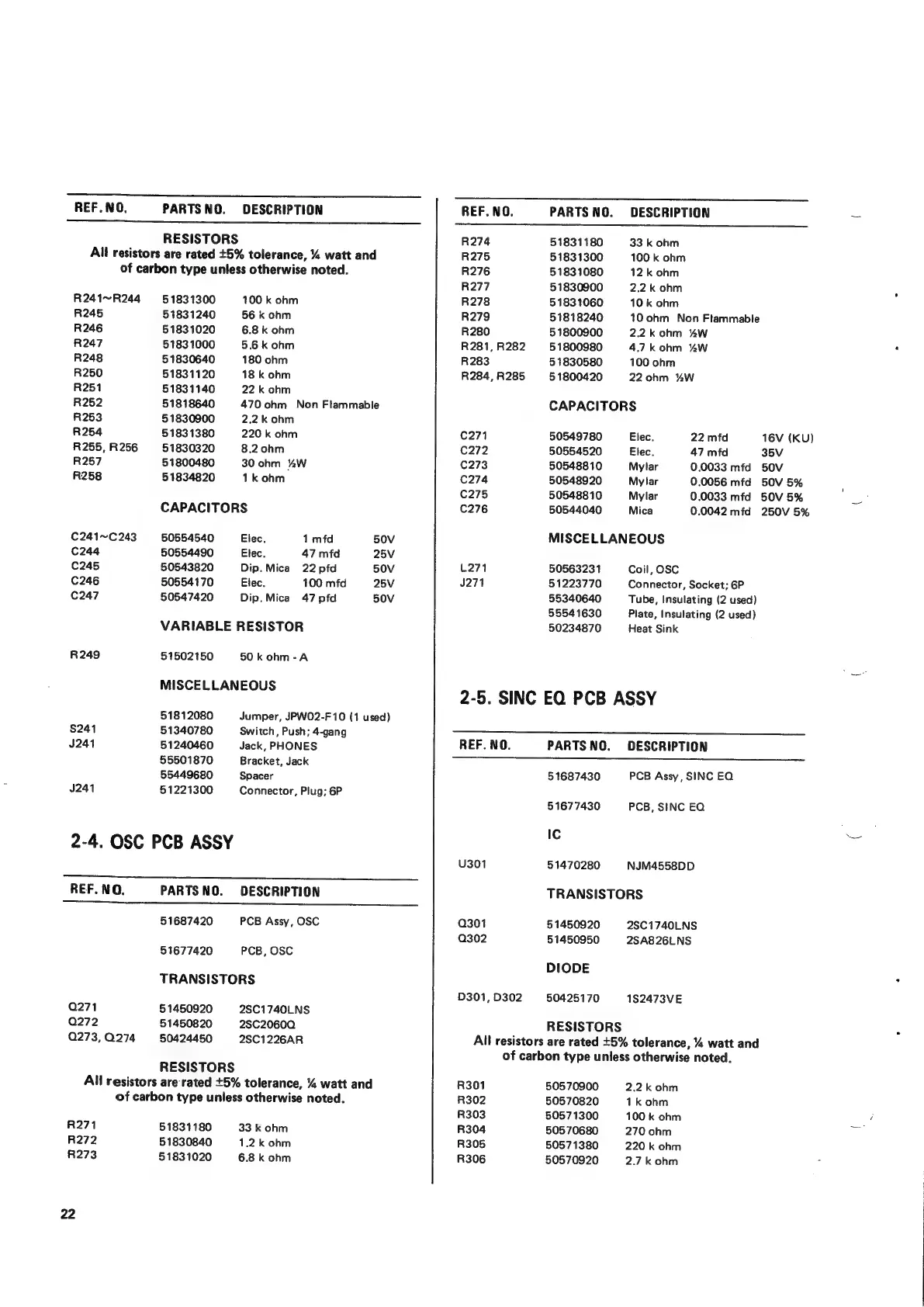

REF.NO. PARTS NO.
RESISTORS
DESCRIPTION
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
R241~R244 51831300 100 k ohm
R245 51831240 56 k ohm
R246 51831020 6.8 k ohm
R247 51831000 5.6 k ohm
R248 51830640 180 ohm
R250 51831120 18 k ohm
R251 51831140 22 k ohm
R252 51818640 470 ohm Non Flammable
R253 51830900 2.2 k ohm
R254 51831380 220 k ohm
R255, R256 51830320 8.2 ohm
R257 51800480 30 ohm %W
R258 51834820 1k ohm
CAPACITORS
C241~C243 50554540 Elec. 1 mfd 50V
C244 50554490 Elec. 47 mfd 25V
C245 50543820 Dip. Mica 22 pfd 50V
C246 50554170 Elec. 100 mfd 25V
C247 50547420 Dip.Mica 47 pfd 50V
VARIABLE RESISTOR
R249 51502150 50k ohm-A
MISCELLANEOUS
51812080 Jumper, JPWO2-F10 (1 used)
$241 51340780 Switch, Push; 4-gang
J241 51240460 Jack, PHONES
55501870 Bracket, Jack
55449680 Spacer
J241 51221300 Connector, Plug; 6P
2-4. OSC PCB ASSY
Q271
Q272
REF. NO. PARTS NO. DESCRIPTION
51687420 PCB Assy, OSC
51677420 PCB, OSC
TRANSISTORS
51450920 2SC1740LNS
51450820 2SC20600
Q273,
Q274
50424450
28C1226AR
RESISTORS
All
resistors
are
rated
+5%
tolerance,
%
watt
and
of
carbon
type
unless
otherwise
noted.
R271
R272
R273
22
51831180
51830840
51831020
33 k ohm
1.2k ohm
6.8 k ohm
ry
16V (KU)
35V
50V
50V 5%
50V 5%
250V 5%
REF.NO. PARTS NO. DESCRIPTION
a ene A a A re
R274 51831180 33 k ohm
R275 51831300 100 k ohm
R276 51831080 12 k ohm
R277 51830900 2.2 k ohm
R278 51831060 10 k ohm
R279 51818240 10 ohm Non Flammable
R280 51800900 2.2k ohm %W
R281, R282 51800980 47k ohm %W
R283 51830580 100 ohm
R284, R285 51800420 22 ohm ”%W
CAPACITORS
C271 50549780 Elec. 22 mfd
C272 50554520 Elec. 47 mfd
C273 50548810 Mylar 0.0033 mfd
C274 50548920 Mylar 0.0056 mfd
C275 50548810 Mylar 0.0033 mfd
C276 50544040 Mica 0.0042 mfd
MISCELLANEOUS
L271 50563231 Coil, OSC
J271 51223770 Connector, Socket; 6P
55340640 Tube, Insulating (2 used)
55541630 Plate, Insulating (2 used)
50234870 Heat Sink
2-5. SINC EQ PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
51687430 PCB Assy, SINC EO
51677430 PCB, SINC EQ
Ic
U301 51470280 NJM4558DD
TRANSISTORS
Q301 51450920 28C1740LNS
Q302 51450950 2SA826LNS
DIODE
D301, D302 50425170 182473VE
RESISTORS
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
R301
R302
R303
R304
R305
R306
50570900
50570820
50571300
50570680
50571380
50570920
2.2 k ohm
1k ohm
100 k ohm
270 ohm
220 k ohm
2.7 k ohm
