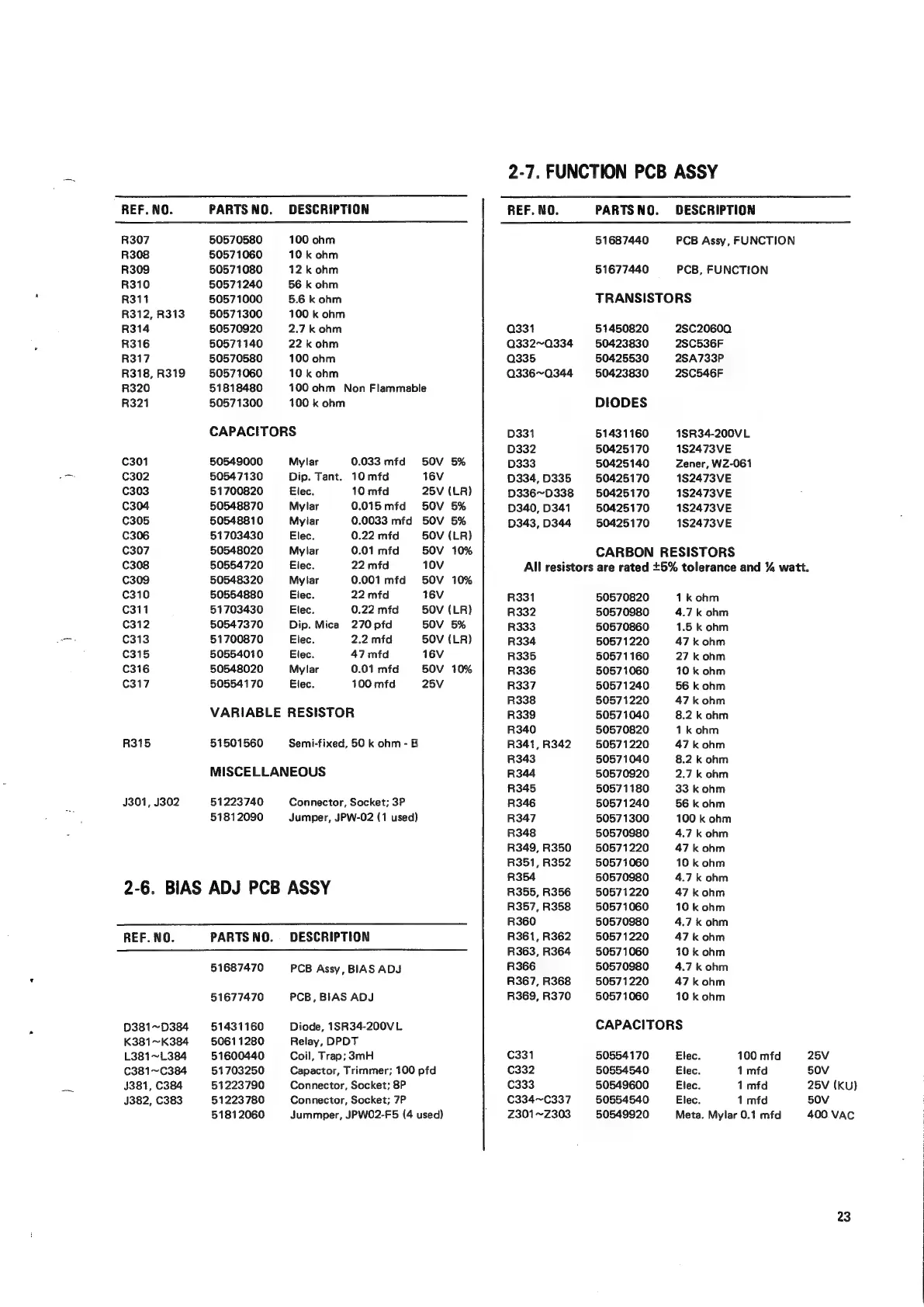

Teac A-3440 - Page 51

REF. NO. PARTS NO. DESCRIPTION
R307 50570580 100 ohm
R308 50571060 10 k ohm
R309 50571080 12 k ohm
R310 50571240 56 k ohm
R311 50571000 5.6 k ohm
R312, R313 50571300 100 k ohm
R314 50570920 2.7 k ohm
R316 50571140 22 k ohm
R317 50570580 100 ohm
R318, R319 50571060 10 k ohm
R320 51818480 100 ohm Non Flammable
R321 50571300 100 k ohm
CAPACITORS
C301 50549000 Mylar 0.033 mfd 50V 5%
C302 50547130 Dip. Tant. 10mfd 16V
C303 51700820 Elec. 10 mfd 25v (LR)
C304 50548870 Mylar 0.015mfd 50V 5%
C305 50548810 Mylar 0.0033 mfd 50V 5%
C306 51703430 Elec. 0.22 mfd 50V (LR)
C307 50548020 Mylar 0.01 mfd 50V 10%
C308 50554720 Elec. 22 mfd 10V
C309 50548320 Mylar 0.001 mfd 50V 10%
C310 50554880 Elec. 22 mfd 16V
C311 51703430 Elec. 0.22 mfd 50V (LR)
C312 50547370 Dip. Mica 270 pfd 50V 5%
C313 51700870 Elec. 2.2 mfd 50V (LR)
C315 50554010 Elec. 47 mfd 16V
C316 50548020 Mylar 0.01 mfd 50V 10%
C317 50554170 Elec. 100 mfd 25V
VARIABLE RESISTOR
R315 51501560 Semi-fixed, 50 k ohm - B
MISCELLANEOUS
J301, J302 51223740 Connector, Socket; 3P
51812090 Jumper, JPW-02 (1 used)
2-6. BIAS ADJ PCB ASSY
REF. NO. PARTS NO... DESCRIPTION
51687470 PCB Assy, BIAS ADJ
51677470 PCB, BIAS ADJ
D381~D384 51431160 Diode, 1SR34-200VL
K381~K384 50611280 Relay, DPDT
L381~L384 51600440 Coil, Trap; 3mH
C381~C384 51703250 Capactor, Trimmer; 100 pfd
J381, C384 51223790 Connector, Socket; 8P
J382, C383 51223780 Connector, Socket; 7P
51812060 Jummper, JPWO2-F5 (4 used)
2-7. FUNCTION PCB ASSY
REF. NO. PARTSNO. DESCRIPTION
51687440 PCB Assy, FUNCTION
51677440 PCB, FUNCTION
TRANSISTORS
Q331 51450820 2SC20600
Q332~0334 50423830 2SC536F
Q335 50425530 2SA733P
Q336~0344 50423830 2SC546F
DIODES
D331 51431160 1SR34-200VL
D332 50425170 182473VE
D333 50425140 Zener, W2-061
D334, D335 50425170 182473VE
D336~D338 50425170 182473VE
D340, D341 50425170 182473VE
D343, D344 50425170 182473VE
R331
R332
R333
R334
R335
R336
R337
R338
R339
R340
R341, R342
R343
R344
R345
R346
R347
R348
R349, R350
R351, R352
R354
R355, R356
R357, R358
R360
R361, R362
R363, R364
R366
R367, R368
R369, R370
C331
C332
C333
C334~C337
Z301~Z303
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
50570820 1kohm
50570980 4.7 k ohm
50570860 1.5 k ohm
50571220 47 k ohm
50571160 27 k ohm
50571060 10 k ohm
50571240 56 k ohm
50571220 47 k ohm
50571040 8.2 k ohm
50570820 1k ohm
50571220 47 k ohm
50571040 8.2 k ohm
50570920 2.7 k ohm
50571180 33 k ohm
50571240 56 k ohm
50571300 100 k ohm
50570980 4.7 k ohm
50571220 47 k ohm
50571060 10 k ohm
50570980 4.7 k ohm
50571220 47 k ohm
50571060 10 k ohm
50570980 4.7 k ohm
50571220 47 k ohm
50571060 10 k ohm
50570980 4.7 k ohm
50571220 47 k ohm
50571060 10 k ohm
CAPACITORS
50554170 Elec. 100 mfd
50554540 Elec. 1mfd
50549600 Elec. 1 mfd
50554540 Elec. 1 mfd
50549920 Meta. Mylar 0.1 mfd
25V
50V
25V (KU)
50V
400. VAC
23
