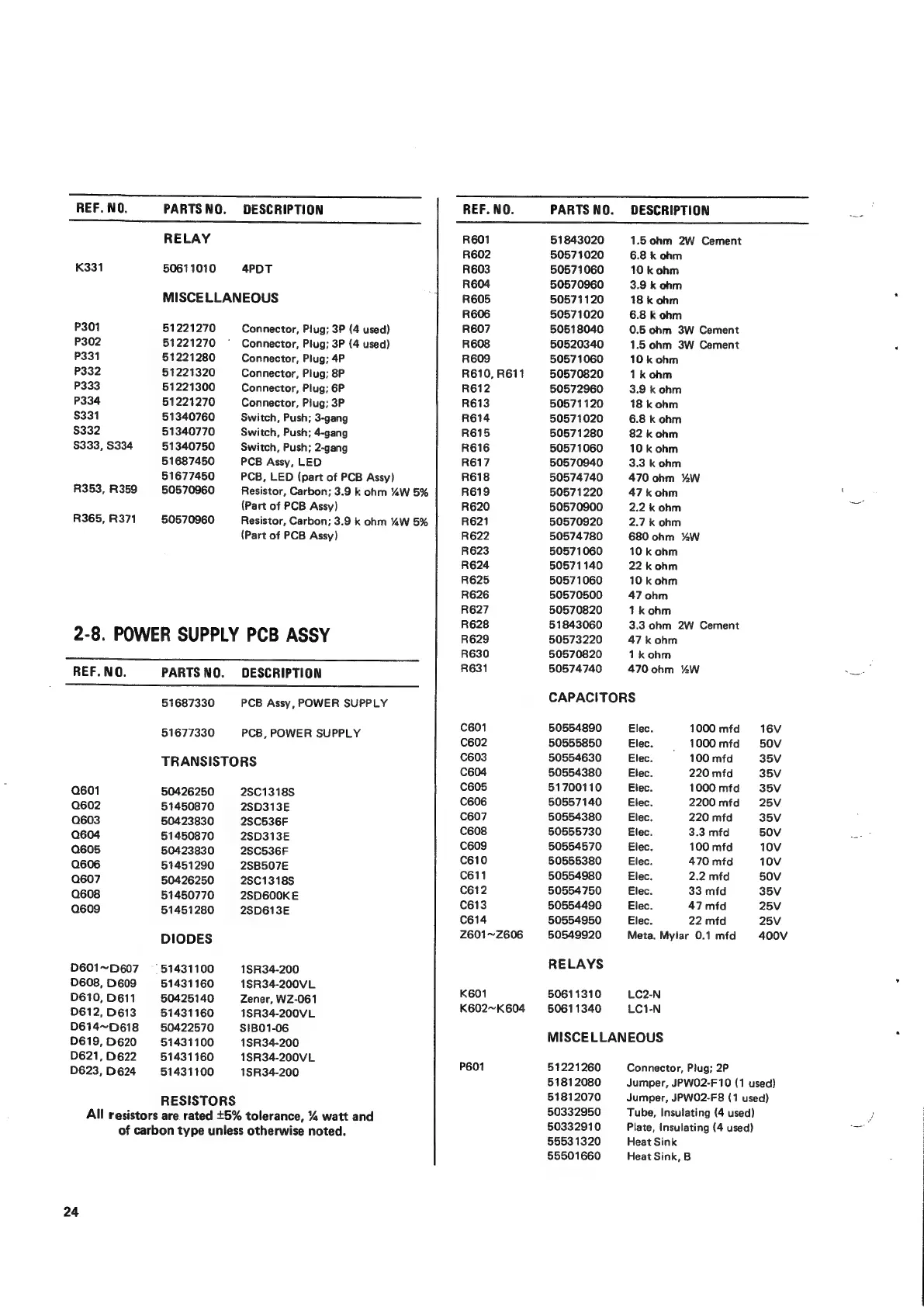

Teac A-3440 - Page 52

REF. NO.
PARTSNO. DESCRIPTION
K331
P301
P302
P331
P332
P333
P334
$331
$332
$333, $334
R353, R359
R365, R371
RELAY
50611010 4PDT
MISCELLANEOUS
51221270 Connector, Plug; 3P (4 used)
51221270 ° Connector, Piug; 3P (4 used)
51221280 Connector, Plug; 4P
51221320 Connector, Plug; 8P
51221300 Connector, Plug; 6P
51221270 Connector, Plug; 3P
51340760 Switch, Push; 3-gang
51340770 Switch, Push; 4-gang
51340750 Switch, Push; 2-gang
51687450 PCB Assy, LED
51677450 PCB, LED (part of PCB Assy)
50570960 Resistor, Carbon; 3.9 k ohm %W 5%
(Part of PCB Assy)
50570960 Resistor, Carbon; 3.9 k ohm %W 5%
(Part of PCB Assy)
2-8. POWER SUPPLY PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
51687330 PCB Assy, POWER SUPPLY
51677330 PCB, POWER SUPPLY
TRANSISTORS
Q601 50426250 28C1318S
Q602 51450870 28D313E
Q603 50423830 2SC536F
Q604 51450870 2SD313E
Q605 50423830 2SC536F
Q606 51451290 2SB507E
Q607 50426250 28C1318S
Q608 51450770 2SD600KE
Q609 51451280 2SD613E
DIODES
D601~D607 = 51431100 1SR34-200
D608, D609 51431160 1SR34-200VL
D610, D611 50425140 Zener, WZ-061
0612, D613 51431160 1SR34-200VL
D614~D618 50422570 S$1B01-06
D619, D620 51431100 1SR34-200
D621, D622 51431160 18R34-200VL
D623, D624 51431100 1SR34-200
RESISTORS
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
REF. NO. PARTS NO. DESCRIPTION 4m
R601 51843020 1.50hm 2W Cement
R602 50571020 6.8 k ohm
R603 50571060 10 k ohm
R604 50570960 3.9 k ohm
R605 50571120 18 k ohm
R606 50571020 6.8 k ohm
R607 50518040 0.5 ohm 3W Cement
R608 50520340 1.5 ohm 3W Cement
R609 50571060 10 k ohm
R610, R611 50570820 1kohm
R612 50572960 3.9 k ohm
R613 50571120 18 k ohm
R614 50571020 6.8 k ohm
R615 50571280 82 k ohm
R616 50571060 10 k ohm
R617 50570940 3.3 k ohm
R618 50574740 470 ohm %W
R619 50571220 47 k ohm ‘ ;
R620 50570900 = 2.2kohm re
R621 50570920 2.7 k ohm
R622 50574780 680 ohm %W
R623 50571060 10 k ohm
R624 50571140 22 k ohm
R625 50571060 10 k ohm
R626 50570500 47 ohm
R627 50570820 1kohm
R628 51843060 3.3 ohm 2W Cement
R629 50573220 47 k ohm
R630 50570820 1kohm
R631 50574740 470 ohm %W ae
CAPACITORS
C601 50554890 Elec. 1000 mfd 16V
C602 50555850 Elec. _ 1000 mfd 50V
C603 50554630 Elec. 100 mfd 35V
C604 50554380 Elec. 220 mfd 35V
C605 51700110 Elec. 1000 mfd 35V
C606 50557140 Elec. 2200 mfd 25V
C607 50554380 Elec. 220 mfd 35V
cé608 50555730 Elec. 3.3 mfd 50V _
C609 50554570 Elec. 100 mfd 10V
C610 50555380 Elec. 470 mfd 10V
C611 50554980 Elec. 2.2 mfd 50V
C612 50554750 Elec. 33 mfd 35V
C613 50554490 Elec. 47 mfd 25V
C614 50554950 Elec. 22 mfd 25V
2Z601~Z606 50549920 Meta. Mylar 0.1 mfd 400V
RELAYS
K601 50611310 LC2-N
K602~K604 50611340 LC1-N
MISCELLANEOUS
P601 51221260 Connector, Plug; 2P
51812080 Jumper, JPWO2-F10 (1 used)
51812070 Jumper, JPWO2-F8 (1 used)
50332950 Tube, Insulating (4 used) ’
50332910 _—Plate, Insulating (4 used) ey
55531320 Heat Sink
55501660 Heat Sink, B
;
