4.
PARTIAL
DIS-ASSEMBLY
4-1
OUTER
CASE
AND
PANEL
REMOVAL
Remove
panels
as
required
as
shown
in
the
illustration.
Unplug
the
power
cord
before
removing
any
panel
or
internal
part.

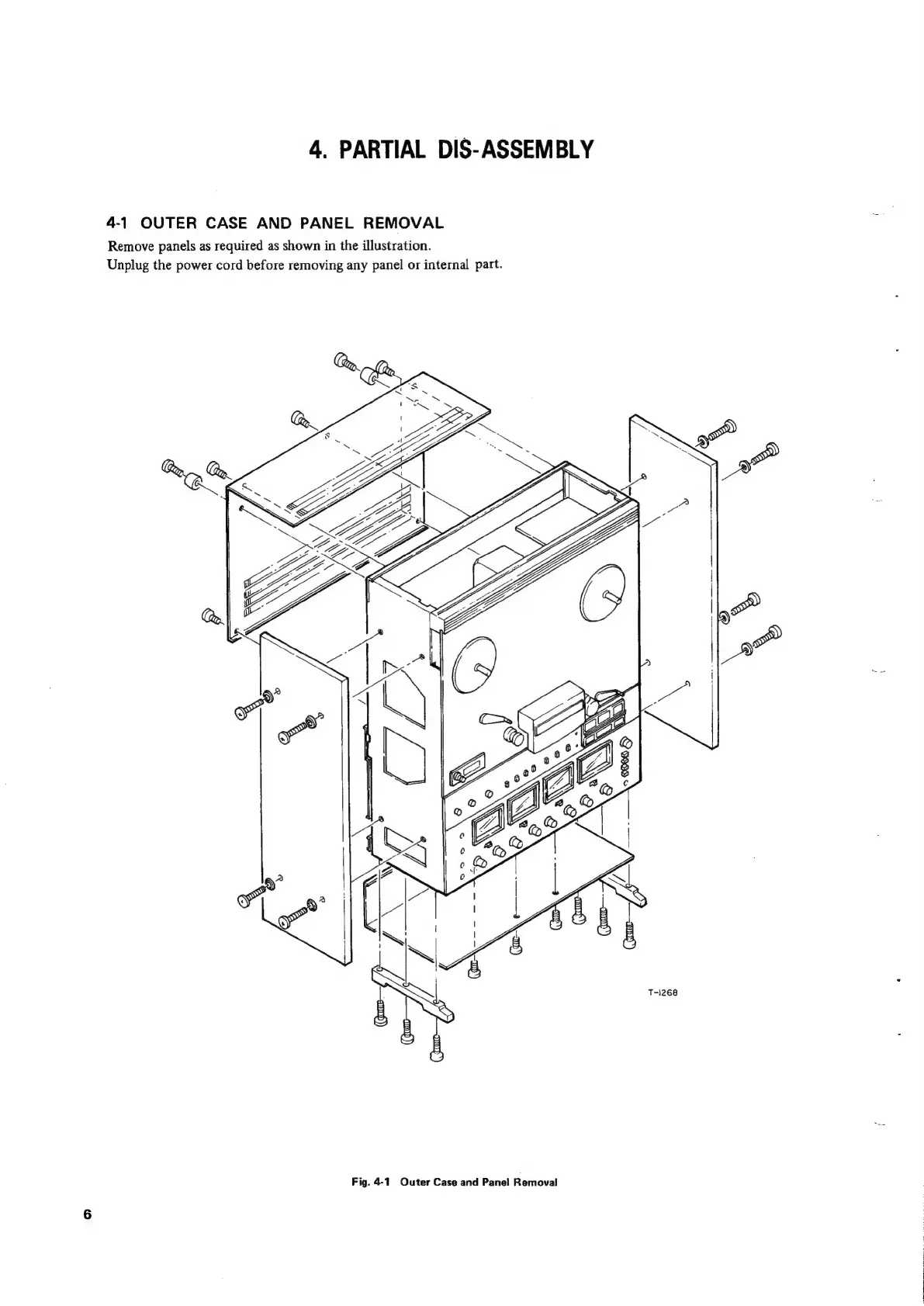

Fig.
4-1
Outer
Case
and
Panel
Removal
