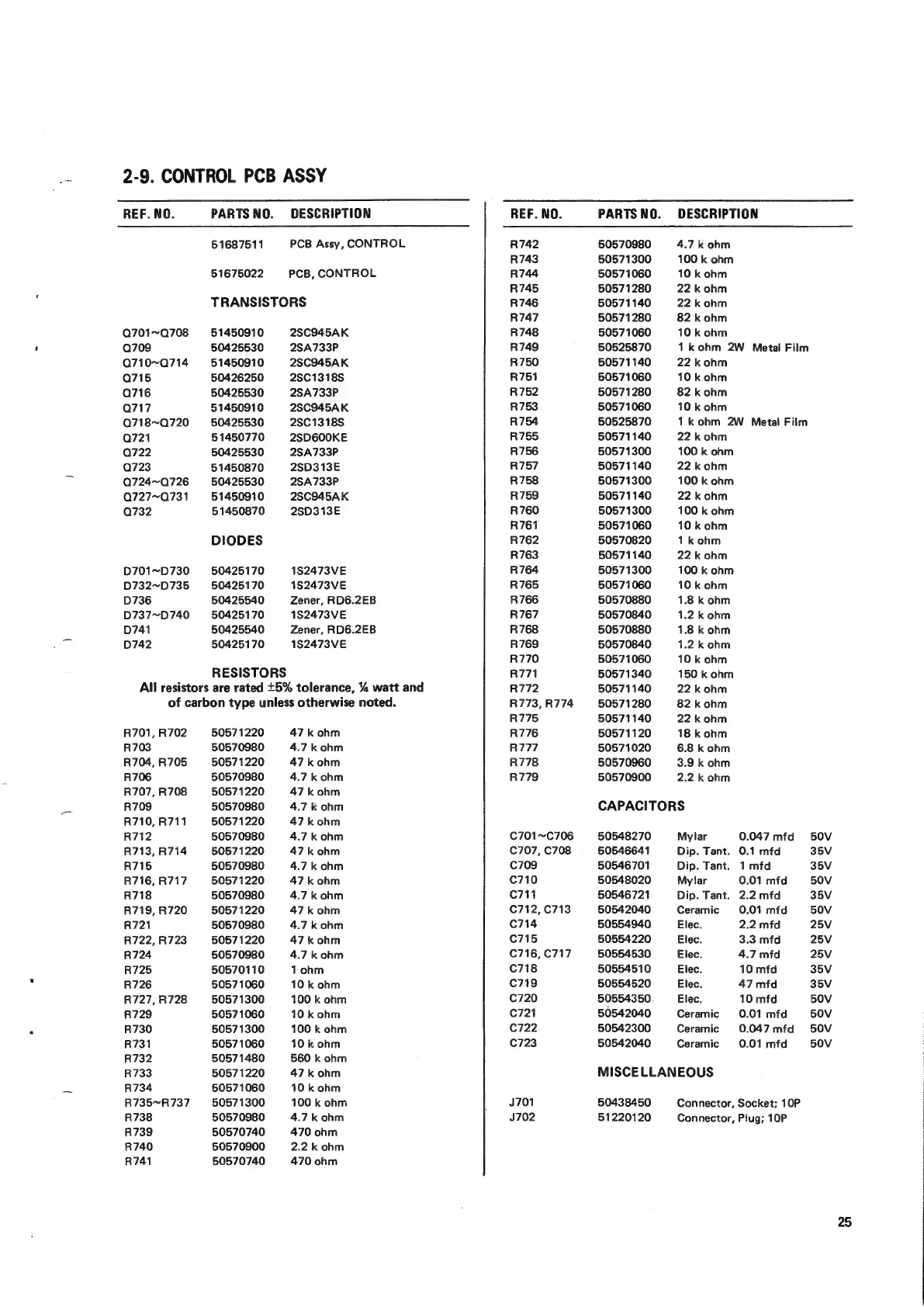

2-9. CONTROL PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
51687511 PCB Assy, CONTROL
51675022 PCB, CONTROL
TRANSISTORS
Q701~Q708 51450910 2SC945AK
a709 50425530 2SA733P
Q710~Q714 51450910 2SC945AK
Q715 50426250 28C1318S
Q716 50425530 2SA733P
Q717 51450910 2SC945AK
Q718~Q720 50425530 28C1318S
Q721 51450770 2SD600KE
Q722 50425530 2SA733P
Q723 51450870 2SD313E
Q724~Q726 50425530 2SA733P
Q727~0731 51450910 2SC945AK
Q732 51450870 28D313E
DIODES
D701~D730 50425170 182473VE
D732~D735 50425170 182473VE
D736 50425540 Zener, RD6.2EB
D737~D740 50425170 182473VE
D741 50425540 Zener, RD6.2EB
D742 50425170 182473VE
All resistors are rated +5% tolerance, % watt and
RESISTORS
of carbon type unless otherwise noted.
R701, R702
R703
R704, R705
R706
R707, R708
R709
R710, R711
R712
R713, R714
R715
R716, R717
R718
R719, R720
R721
R722, R723
R724
R725
R726
R727, R728
R729
R730
R731
R732
R733
R734
R735~R737
R738
R739
R740
R741
50571220 47 k ohm
50570980 4.7 k ohm
50571220 47 kohm
50570980 4.7 k ohm
50571220 47 k ohm
50570980 4.7 k ohm
50571220 47 kohm
50570980 4.7 k ohm
50571220 47 k ohm
50570980 4.7 k ohm
50571220 47k ohm
50570980 4.7 k ohm
50571220 47k ohm
50570980 4.7 k ohm
50571220 47k ohm
50570980 4.7 k ohm
50570110 1 ohm
50571060 10 k ohm
50571300 100 k ohm
50571060 10 k ohm
50571300 100 k ohm
50571060 10 k ohm
50571480 560 k ohm
50571220 47 k ohm
50571060 10 k ohm
50571300 100 k ohm
50570980 4.7 k ohm
50570740 470 ohm
50570900 2.2 k ohm
50570740 470 ohm
REF. NO.
R742
R743
R744
R745
R746
R747
R748
R749
R750
R751
R752
R753
R754
R755
R756
R757
R758
R759
R760
R761
R762
R763
R764
R765
R766
R767
R768
R769
R770
R771
R772
R773, R774
R775
R776
R777
R778
R779
C701~C706
C707, C708
C709
C710
c711
C712, C713
C714
C715
C716, C717
c718
c719
C720
C721
C722
C723
J701
J702
PARTSNO. DESCRIPTION
50570980 4.7 k ohm
50571300 100 k ohm
50571060 10 k ohm
50571280 22 k ohm
50571140 22 k ohm
50571280 82 k ohm
50571060 10 k ohm
50525870 1kohm 2W Metal Film
50571140 22 kohm
50571060 10 kohm
50571280 82 k ohm
50571060 10 k ohm
50525870 1kohm 2W Metal Film
50571140 22 k ohm
50571300 100 k ohm
50571140 22 kohm
50571300 100 k ohm
50571140 22 k ohm
50571300 100 k ohm
50571060 10 k ohm
50570820 1kohm
50571140 22 k ohm
50571300 100 k ohm
50571060 10 k ohm
50570880 1.8 k ohm
50570840 1.2 k ohm
50570880 1.8 k ohm
50570840 1.2 kohm
50571060 10 k ohm
50571340 150 k ohm
50571140 22 k ohm
50571280 82 k ohm
50571140 22 kohm
50571120 18 k ohm
50571020 6.8 k ohm
50570960 3.9 k ohm
50570900 2.2 k ohm
CAPACITORS
50548270 Mylar 0.047 mfd
50546641 Dip. Tant. 0.1 mfd
50546701 Dip. Tant. 1 mfd
50548020 Mylar 0.01 mfd
50546721 Dip. Tant. 2.2 mfd
50542040 Ceramic 0.01 mfd
50554940 Elec. 2.2 mfd
50554220 Elec. 3.3 mfd
50554530 Elec. 4.7 mfd
50554510 Elec. 10 mfd
50554520 Elec. 47 mfd
50554350 Elec. 10 mfd
50542040 Ceramic 0.01 mfd
50542300 Ceramic 0.047 mfd
50542040 Ceramic 0.01 mfd
MISCELLANEOUS
50438450 Connector, Socket; 10P
51220120 Connector, Plug; 10P
50V
35V
35V
50V
35V
50V
25V
25V
25V
35V
35V
50V
50V
50V
50V
25
