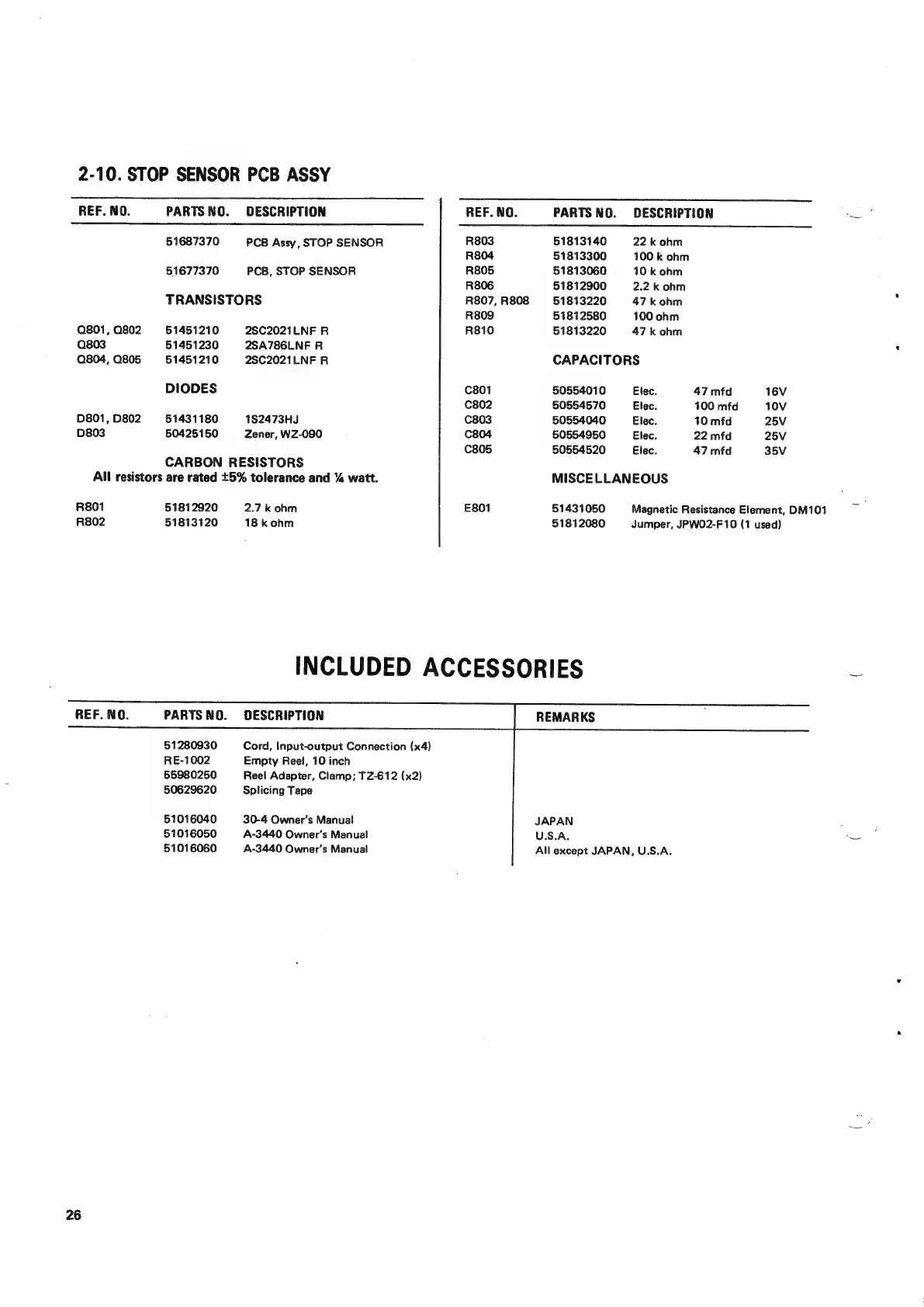

Teac A-3440 - Page 54

2-10. STOP SENSOR PCB ASSY
REF.
NO.
PARTS
NO.
DESCRIPTION
REF.
NO.
PARTS
NO.
DESCRIPTION
51687370
PCB
Assy,
STOP SENSOR
R803
51813140
22kohm
R804
51813300
100
k ohm
51677370
PCB,
STOP
SENSOR
R805
51813060
10
k ohm
R806
51812900
2.2 k ohm
TRANSISTORS
R807, R808
51813220
47
kohm
R809
51812580
100
ohm
Q801,
Q802 51451210
2SC2021LNF
R
R810
51813220
47k
ohm
Q803
51451230
2SA786LNF
R
Q804,
0805
51451210
2SC2021LNF
R
CAPACITORS
DIODES
C801
50554010
Elec.
47
mfd
16V
C802
50554570
Elec.
100
mfd
10V
D801,
D802
51431180
182473HJ
C803
50554040
Elec.
10
mfd
25V
D803
50425150
Zener,
WZ-090
C804
50554950
Elec.
22
mfd
25V
C805
50554520
Elec.
47
mfd 35V
CARBON
RESISTORS
All
resistors are
rated +5%
tolerance
and
%
watt.
MISCELLANEOUS
R801
51812920
2.7
k
ohm
E801
51431050
Magnetic
Resistance
Element,
DM101
R802
51813120
18
k
ohm
51812080
Jumper,
JPWO2-F10
(1
used)
INCLUDED
ACCESSORIES
REMARKS
PARTS NO. DESCRIPTION
51280930 Cord, Input-output Connection (x4)
RE-1002 Empty Reel, 10 inch
55980250 Reel Adapter, Clamp; TZ-612 (x2)
50629620 Splicing Tape
JAPAN
U.S.A.
All except JAPAN, U.S.A.
51016040 30-4 Owner’s Manual
51016050 A-3440 Owner's Manual
51016060 A-3440 Owner’s Manual
