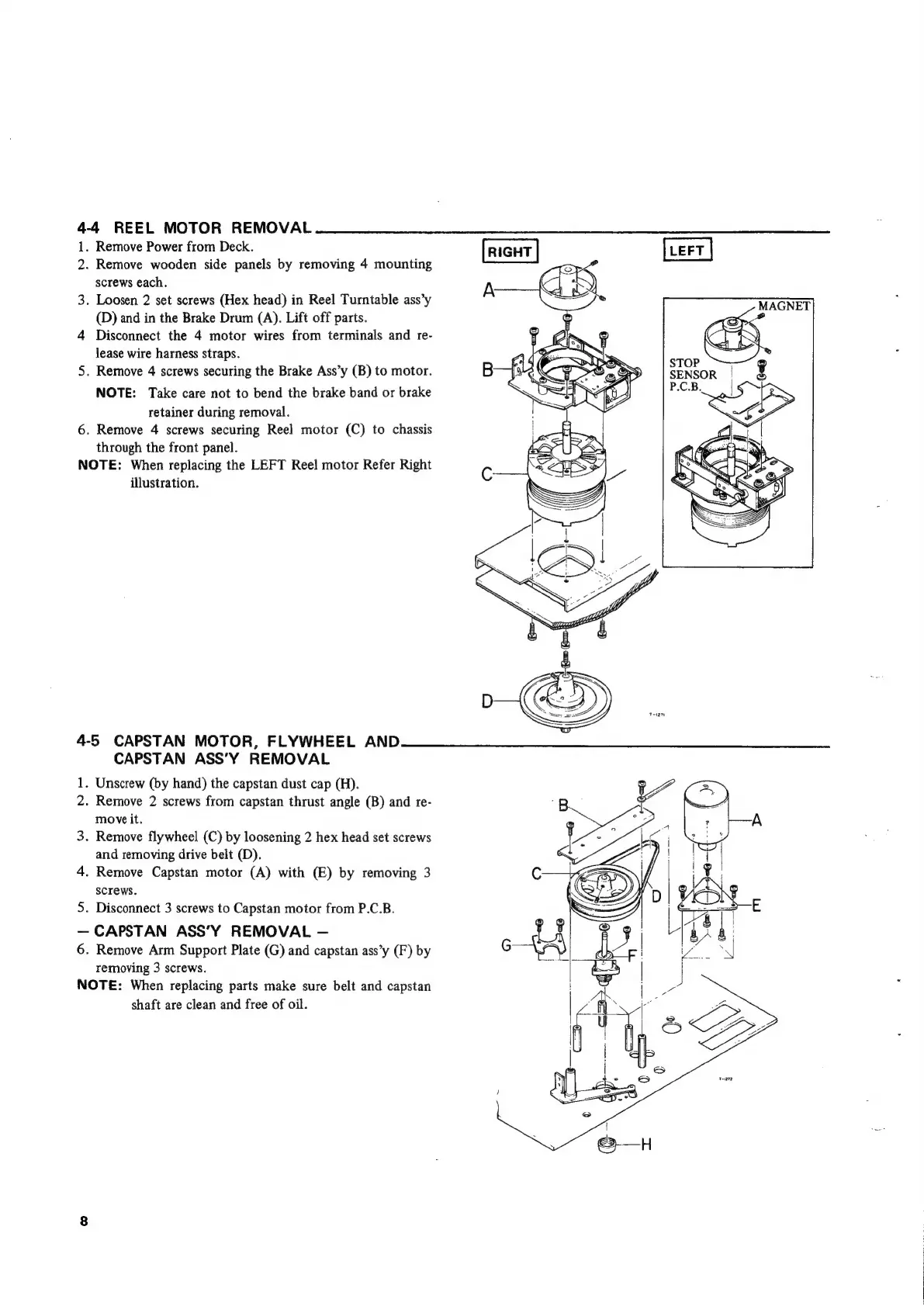

4-4 REEL MOTOR REMOVAL
1.
2.
3.
6.
Remove Power from Deck.
Remove wooden side panels by removing 4 mounting
screws each.
Loosen 2 set screws (Hex head) in Reel Turntable ass’y
(D) and in the Brake Drum (A). Lift off parts.
Disconnect the 4 motor wires from terminals and re-
lease wire harness straps.
. Remove 4 screws securing the Brake Ass’y (B) to motor.
NOTE: Take care not to bend the brake band or brake
retainer during removal.
Remove 4 screws securing Reel motor (C) to chassis
through the front panel.
NOTE: When replacing the LEFT Reel motor Refer Right
4-5 CAPSTAN MOTOR, FLYWHEEL AND
Ne
4.
>i
illustration.
CAPSTAN ASS’Y REMOVAL
. Unscrew (by hand) the capstan dust cap (H).
. Remove 2 screws from capstan thrust angle (B) and re-
move it.
. Remove flywheel (C) by loosening 2 hex head set screws
and removing drive belt (D).
Remove Capstan motor (A) with (E) by removing 3
screws.
Disconnect 3 screws to Capstan motor from P.C.B.
— CAPSTAN ASS‘'Y REMOVAL —
6.
Remove Arm Support Plate (G) and capstan ass’y (F) by
removing 3 screws.
NOTE: When replacing parts make sure belt and capstan
shaft are clean and free of oil.
