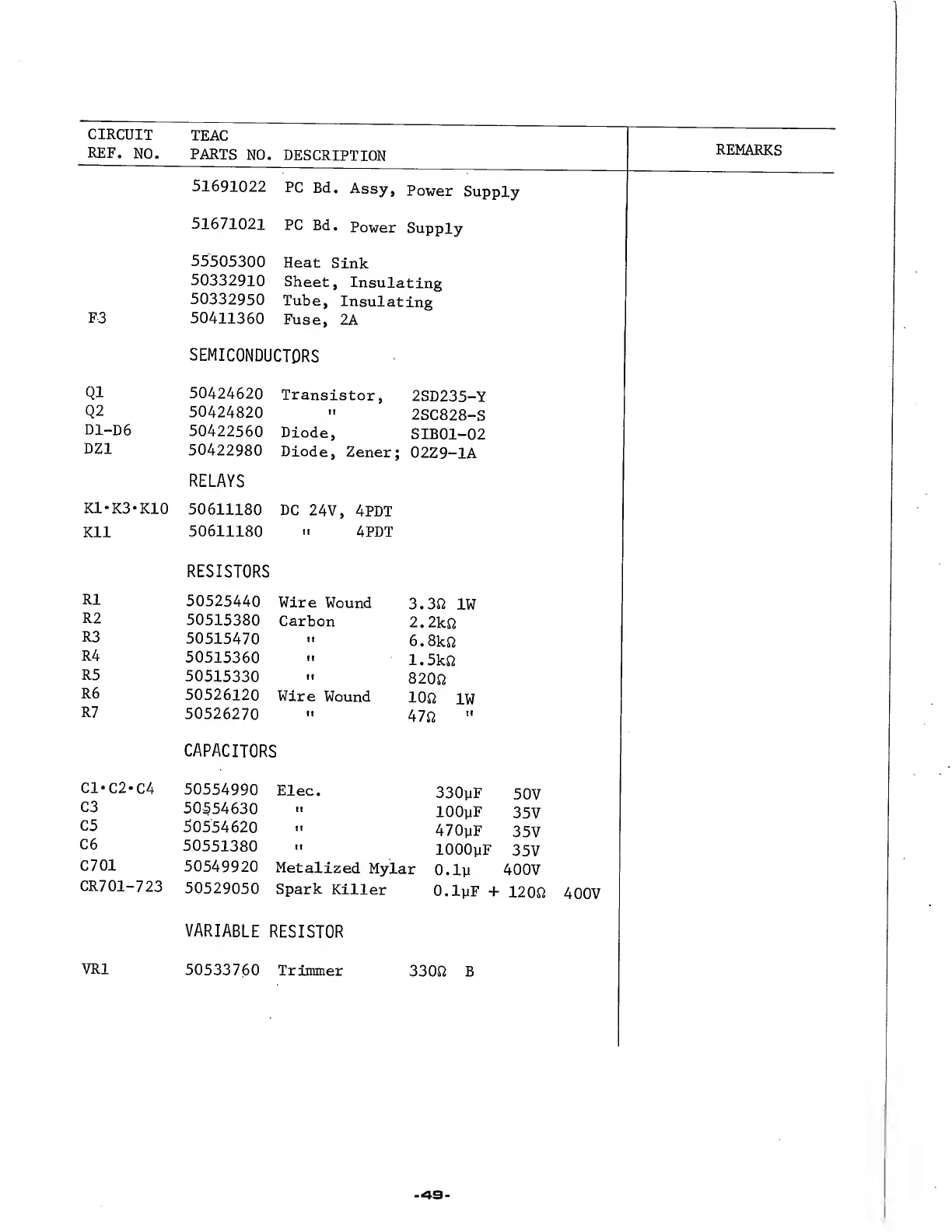

Teac A-6300 - Page 101

CIRCUIT
REF. NO.
TEAC
PARTS NO.
DESCRIPTION
51691022
PC Bd. Assy,
Power Supply
51671021
PC Bd. Power
Supply
55505300
Heat Sink
50332910
Sheet, Insulating
50332950
Tube, Insulating
F3
50411360
Fuse, 2A
SEMICONDUCTORS
Q1
50424620
Transistor,
2SD235-Y
Q2
50424820
ft
2SC828-S
D1-D6
50422560
Diode,
SIB01-02
DZ1
50422980
Diode, Zener;
02Z9-1A
RELAYS
K1-K3-K10
50611180
DC 24V, 4PDT
Kll
50611180
t> 4PDT
RESISTORS
R1
50525440
Wire Wound
3.3ft 1W
R2
50515380
Carbon
2.2kft
R3
50515470
ft
6.8kft
R4
50515360
II
1.5kft
R5
50515330
If
820ft
R6
50526120
Wire Wound
10ft 1W
R7
50526270
II
47ft
CAPACITORS
C1*C2*C4
50554990
Elec.
330yF
50V
C3
50554630
II
lOOyF
35V
C5
50554620
If
470yF
35V
C6
50551380
II
lOOOyF
35V
C701
50549920
Metalized Mylar O.ly
400V
CR701-723
50529050
Spark Killer
O.lyF +
120ft
VARIABLE 1
RESISTOR
VR1
50533760
Trimmer
330ft B
REMARKS
400V
-49
