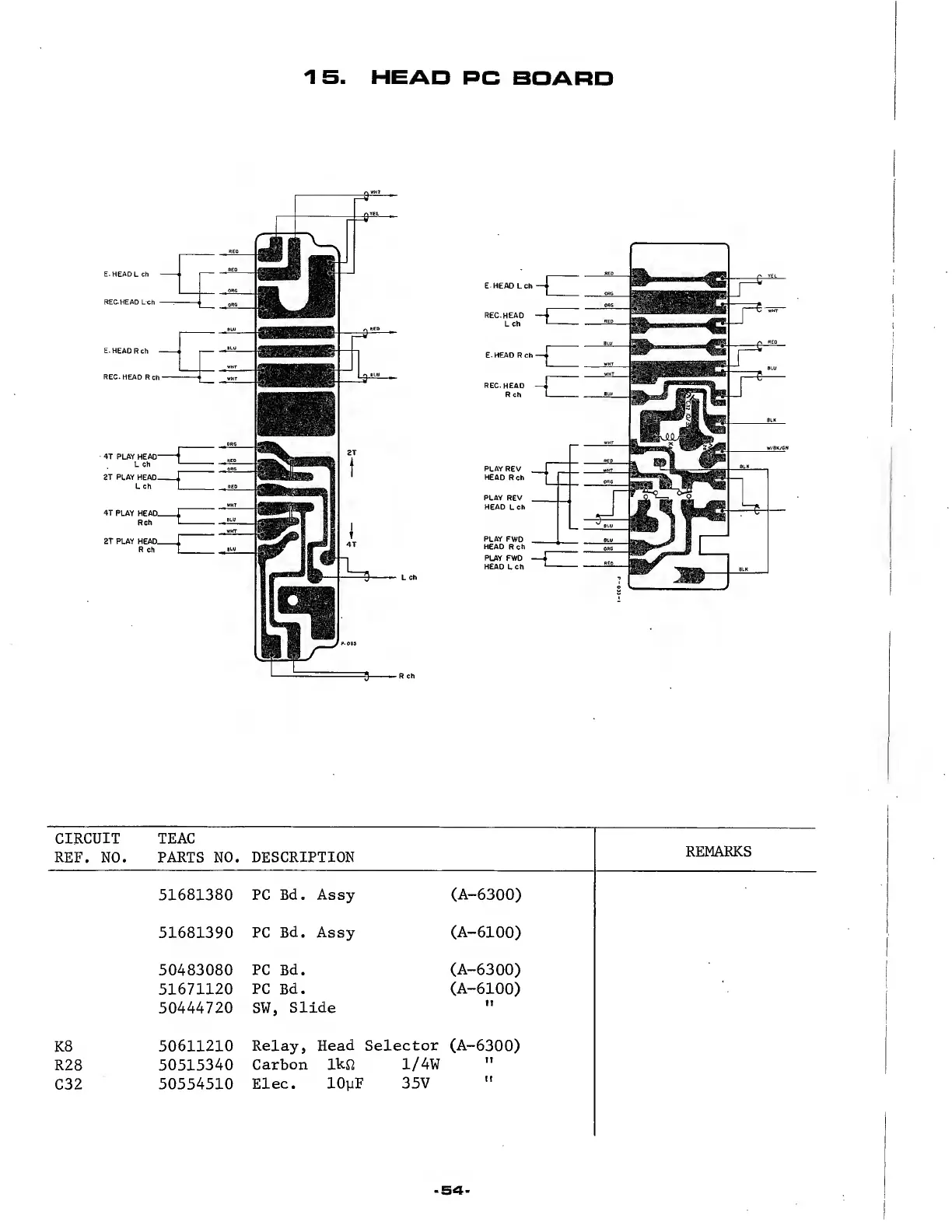

Teac A-6300 - Head PC Board

E. HEAD L Ch
15. HEAD PC BOARD
4T PLAY HEAD-
L ch
2T PLAY HEAD-
L Ch
4T PLAY HEAD—
Rch
2T PLAY HEAD-
R ch
REC-HEAD
L ch
REC. HEAD
R ch
PLAY REV
HEAD Rch
PLAY REV
HEAD L ch
PLAY FWD
HEAD Rch
PLAY FWD
HEAD L ch
CIRCUIT
REF. NO.
TEAC
PARTS NO.
DESCRIPTION
51681380
PC Bd. Assy (A-6300)
51681390
PC Bd. Assy
(A-6100)
50483080
PC Bd. (A-6300)
51671120
PC Bd.
(A-6100)
50444720 SW, Slide
II
K8
50611210
Relay, Head
Selector
(A-6300)
R28
50515340
Carbon lkft
1/4W
II
C32 50554510
Elec. lOyF
35V
II
REMARKS
- 5 4 -
