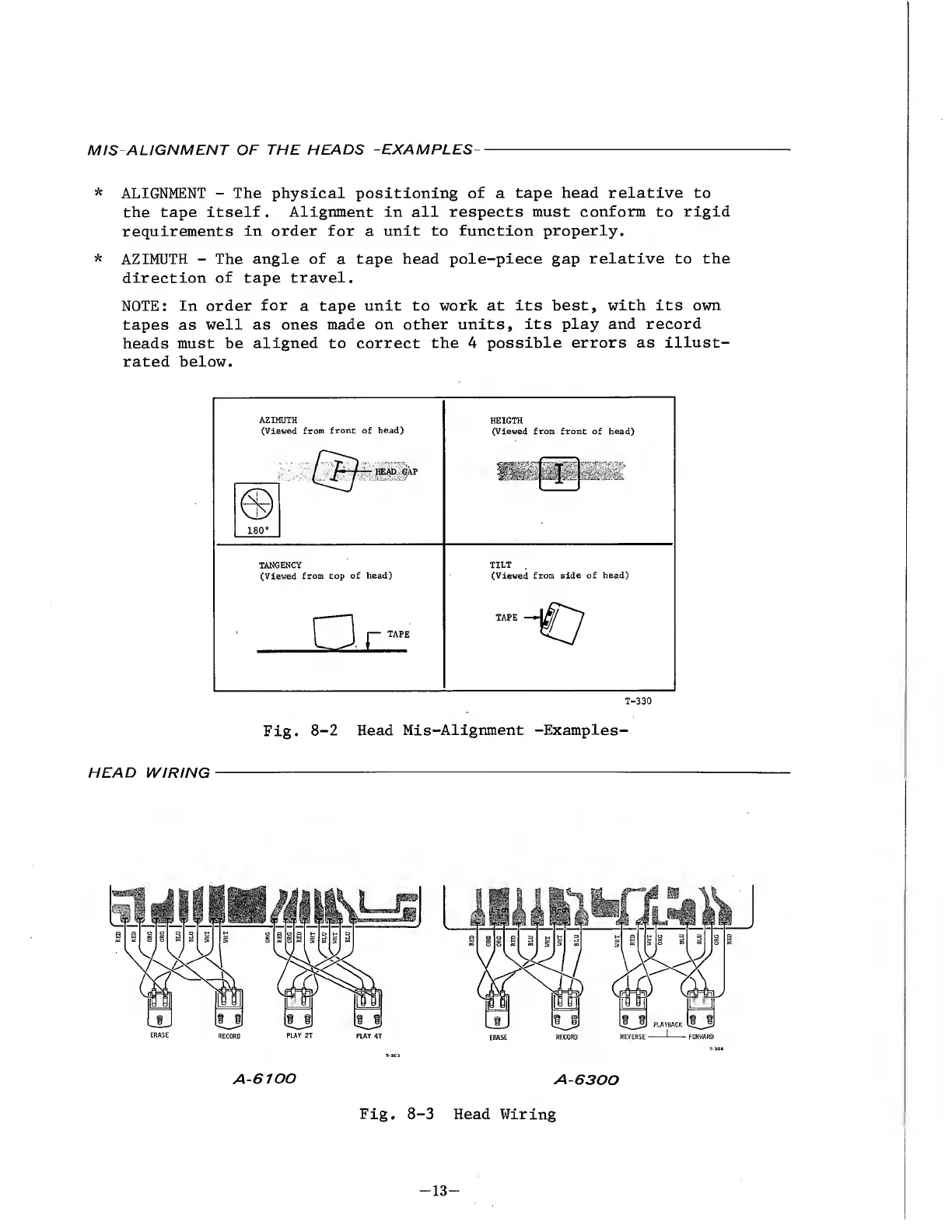

MIS-ALIGNMENT
OF
THE
HEADS
-EXAMPLES-
*
ALIGNMENT
-
The
physical
positioning
of
a
tape
head
relative
to
the
tape
itself.
Alignment
in
all
respects
must
conform
to
rigid
requirements
in
order
for
a
unit
to
function
properly.
*
AZIMUTH
-
The
angle
of
a
tape
head
pole-piece
gap
relative
to
the
direction
of
tape
travel.
NOTE:
In
order
for
a
tape
unit
to
work
at
its
best,
with
its
own
tapes
as
well
as
ones
made
on
other
units,
its
play
and
record
heads
must
be
aligned
to
correct
the
4
possible
errors
as
illust¬
rated
below.
T-330
Fig.
8-2
Head
Mis-Alignment
-Examples-
HEAD
WIRING
A-61QO
A-6300
Fig.
8-3
Head
Wiring
-
1
3
-
