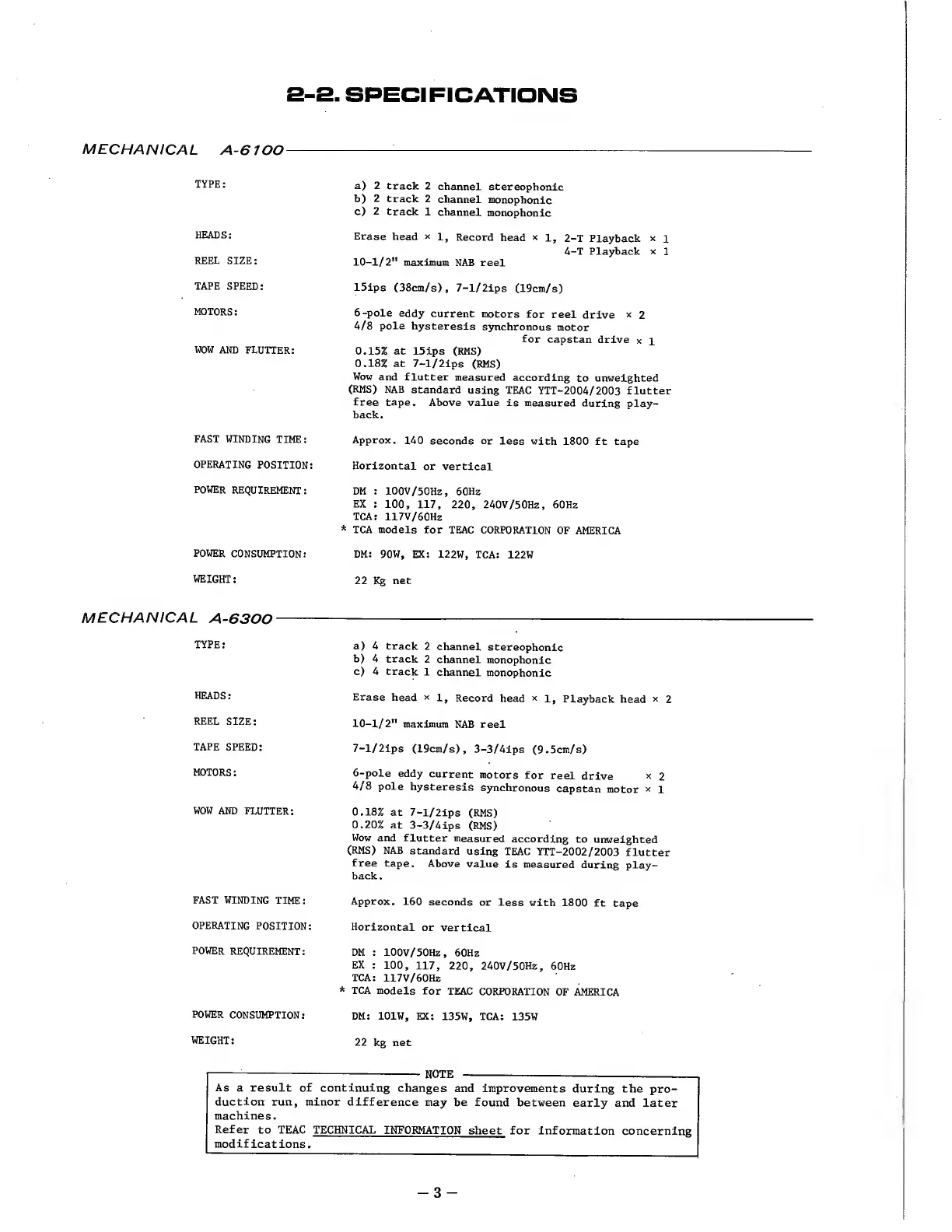

2-2. SPECIFICATIONS
MECHANICAL A-61QO
TYPE:
HEADS:
REEL SIZE:
a) 2 track 2 channel stereophonic
b) 2 track 2 channel monophonic
c) 2 track 1 channel monophonic
Erase head x 1, Record head x 1, 2-T Playback x l
4-T Playback x 1
10-1/2" maximum NAB reel
TAPE SPEED:
15ips (38cm/s), 7-l/2ips (19cm/s)
MOTORS:
WOW AND FLUTTER:
6-pole eddy current motors for reel drive x 2
4/8 pole hysteresis synchronous motor
for capstan drive x l
0.15% at 15ips (RMS)
0.18% at 7-l/2ips (RMS)
Wow and flutter measured according to unweighted
(RMS) NAB standard using TEAC YTT-2004/2003 flutter
free tape. Above value is measured during play¬
back.
FAST WINDING TIME: Approx. 140 seconds or less with 1800 ft tape
OPERATING POSITION: Horizontal or vertical
POWER REQUIREMENT: DM : 100V/50Hz, 60Hz
EX : 100, 117, 220, 240V/50Hz, 60Hz
TCA: 117V/60Hz
* TCA models for TEAC CORPORATION OF AMERICA
POWER CONSUMPTION: DM: 90W, EX: 122W, TCA: 122W
WEIGHT:
22 Kg net
MECHANICAL A-6300
TYPE:
HEADS:
REEL SIZE:
a) 4 track 2 channel stereophonic
b) 4 track 2 channel monophonic
c) 4 track 1 channel monophonic
Erase head x 1, Record head x 1 , Playback head x 2
10-1/2" maximum NAB reel
TAPE SPEED:
7-l/2ips (19cm/s), 3-3/4ips (9.5cm/s)
MOTORS: 6-pole eddy current motors for reel drive x 2
4/8 pole hysteresis synchronous capstan motor x 1
WOW AND FLUTTER: 0.18% at 7-l/2ips (RMS)
0.20% at 3-3/4ips (RMS)
Wow and flutter measured according to unweighted
(RMS) NAB standard using TEAC YTT-2002/2003 flutter
free tape. Above value is measured during play¬
back.
FAST WINDING TIME: Approx. 160 seconds or less with 1800 ft tape
OPERATING POSITION: Horizontal or vertical
POWER REQUIREMENT:
POWER CONSUMPTION:
WEIGHT:
DM : 100V/50HZ, 60Hz
EX : 100, 117, 220, 240V/50HZ, 60Hz
TCA: 117V/60HZ
* TCA models for TEAC CORPORATION OF AMERICA
DM: 101W, EX: 135W, TCA: 135W
22 kg net
- 1 -- NOTE -----
As a result of continuing changes and improvements during the pro¬
duction run, minor difference may be found between early and later
machines.
Refer to TEAC TECHNICAL INFORMATION sheet for information concerning
modifications.
