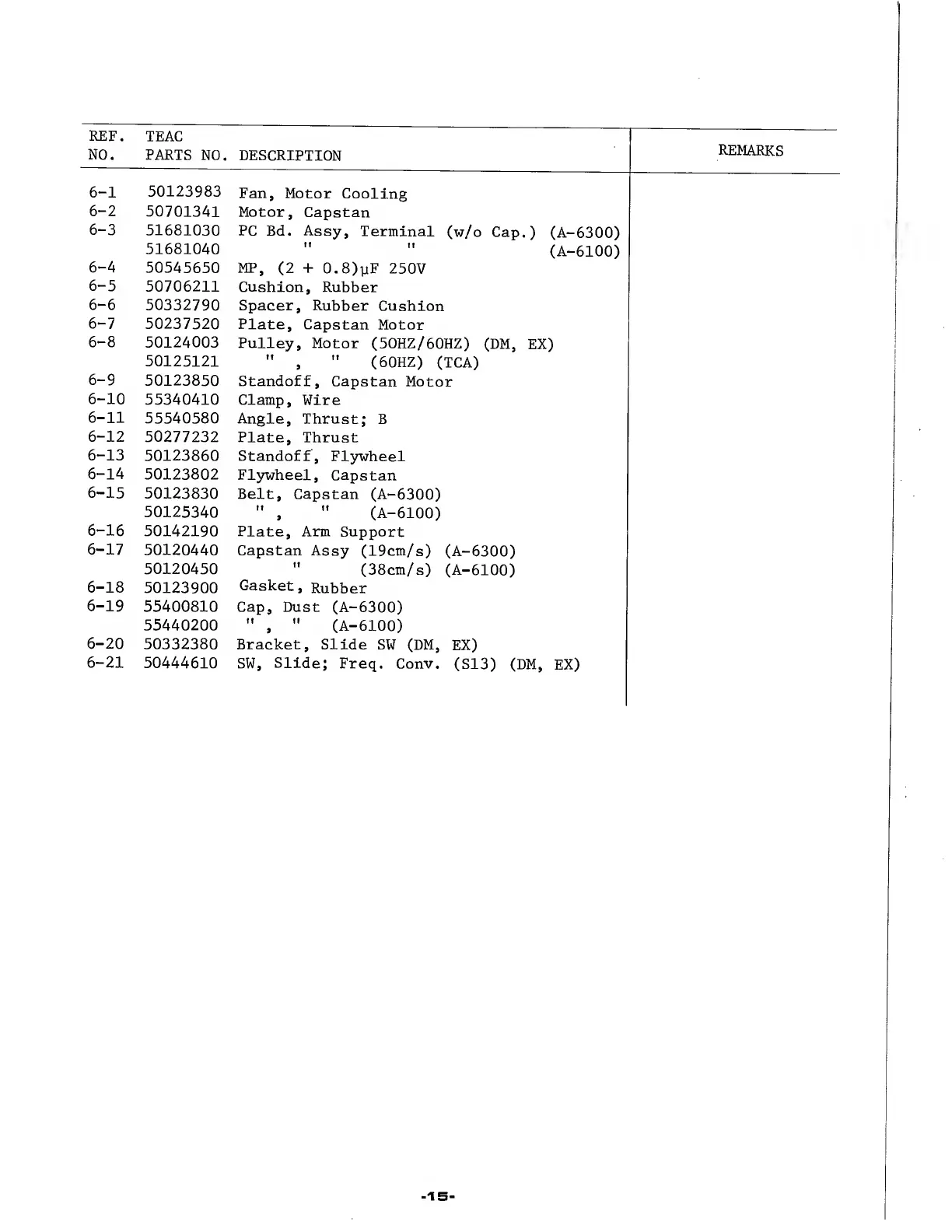

REMARKS
REF. TEAC
NO. PARTS NO. DESCRIPTION
6-1 50123983 Fan, Motor Cooling
6-2 50701341 Motor, Capstan
6-3 51681030 PC Bd. Assy, Terminal (w/o Cap.) (A-6300)
51681040 " " (A-6100)
6-4 50545650 MP, (2 + 0.8)yF 250V
6-5 50706211 Cushion, Rubber
6-6 50332790 Spacer, Rubber Cushion
6-7 50237520 Plate, Capstan Motor
6-8 50124003 Pulley, Motor (50HZ/60HZ) (DM, EX)
50125121 " , " (60HZ) (TCA)
6-9 50123850 Standoff, Capstan Motor
6-10 55340410 Clamp, Wire
6-11 55540580 Angle, Thrust; B
6-12 50277232 Plate, Thrust
6-13 50123860 Standoff, Flywheel
6-14 50123802 Flywheel, Capstan
6-15 50123830 Belt, Capstan (A-6300)
50125340 " , " (A-6100)
6-16 50142190 Plate, Arm Support
6-17 50120440 Capstan Assy (19cm/s) (A-6300)
50120450 " (38cm/s) (A-6100)
6-18 50123900 Gasket, Rubber
6-19 55400810 Cap, Dust (A-6300)
55440200 " , " (A-6100)
6-20 50332380 Bracket, Slide SW (DM, EX)
6-21 50444610 SW, Slide; Freq. Conv. (S13) (DM, EX)
