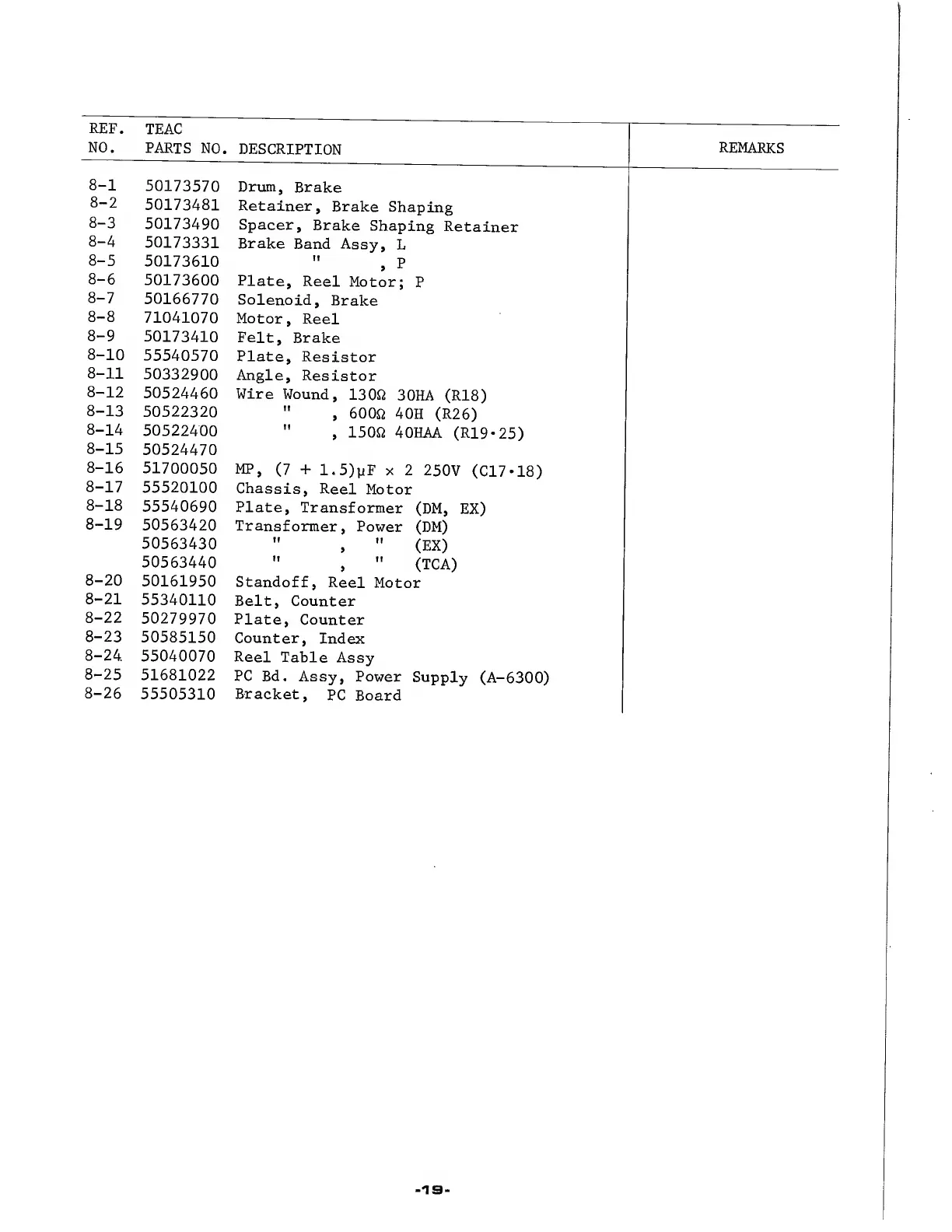

REF.
NO.
TEAC
PARTS NO.
DESCRIPTION
REMARKS
8-1
50173570
Drum, Brake
8-2
50173481
Retainer, Brake Shaping
8-3
50173490
Spacer, Brake Shaping Retainer
8-4
50173331
Brake Band Assy, L
8-5
50173610
" , P
8-6
50173600
Plate, Reel Motor; P
8-7
50166770
Solenoid, Brake
8-8
71041070
Motor, Reel
8-9
50173410
Felt, Brake
8-10
55540570
Plate, Resistor
8-11
50332900
Angle, Resistor
8-12
50524460
Wire Wound, 130ft 30HA (R18)
8-13
50522320
" , 600ft 4OH (R26)
8-14
8-15
50522400
50524470
" , 150ft 40HAA (R19-25)
8-16
51700050
MP, (7 + 1.5)yF x 2 250V (C17*18)
8-17
55520100
Chassis, Reel Motor
8-18
55540690
Plate, Transformer (DM, EX)
8-19
50563420
50563430
50563440
Transformer, Power (DM)
" , " (EX)
" , " (TCA)
8-20
50161950
Standoff, Reel Motor
8-21
55340110
Belt, Counter
8-22
50279970
Plate, Counter
8-23
50585150
Counter, Index
8-24
55040070
Reel Table Assy
8-25
51681022
PC Bd. Assy, Power Supply (A-6300)
8-26
55505310 Bracket, PC Board
19
