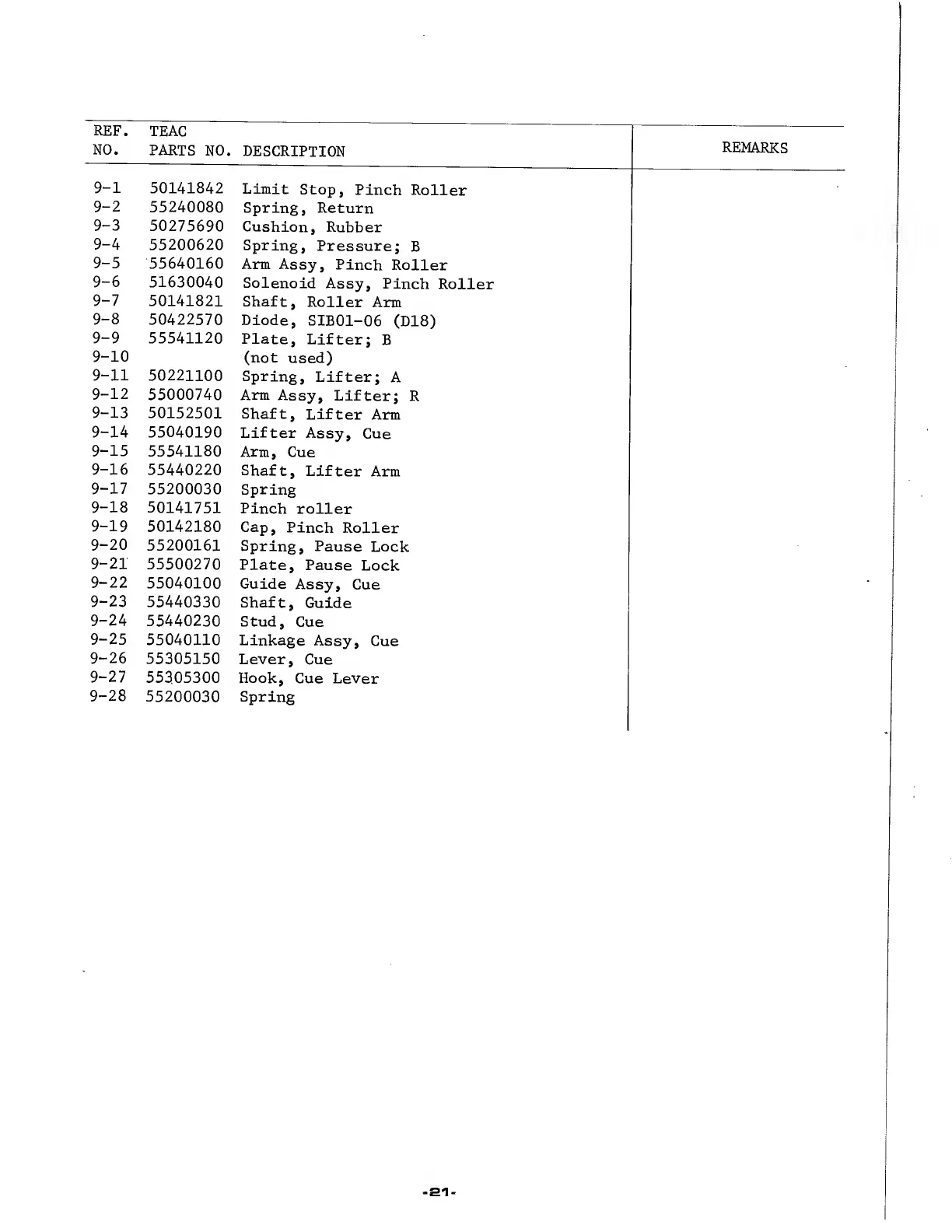

REF.
NO.
TEAC
PARTS NO. DESCRIPTION REMARKS
9-1 50141842
Limit Stop, Pinch Roller
9-2
55240080
Spring, Return
9-3
50275690
Cushion, Rubber
9-4
55200620
Spring, Pressure; B
9-5
55640160
Arm Assy, Pinch Roller
9-6
51630040
Solenoid Assy, Pinch Roller
9-7
50141821
Shaft, Roller Arm
9-8
50422570
Diode, SIB01-06 (D18)
9-9
55541120
Plate, Lifter; B
9-10
(not used)
9-11
50221100
Spring, Lifter; A
9-12
55000740
Arm Assy, Lifter; R
9-13
50152501
Shaft, Lifter Arm
9-14
55040190
Lifter Assy, Cue
9-15
55541180
Arm, Cue
9-16
55440220
Shaft, Lifter Arm
9-17
55200030
Spring
9-18
50141751
Pinch roller
9-19 50142180
Cap, Pinch Roller
9-20
55200161
Spring, Pause Lock
9-21
55500270
Plate, Pause Lock
9-22
55040100
Guide Assy, Cue
9-23 55440330
Shaft, Guide
9-24
55440230
Stud, Cue
9-25
55040110
Linkage Assy, Cue
9-26
55305150
Lever, Cue
9-27 55305300
Hook, Cue Lever
9-28
55200030
Spring
